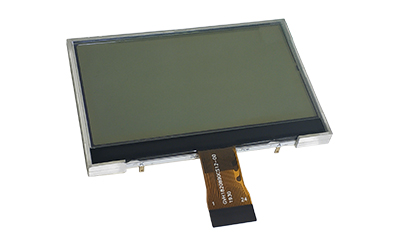

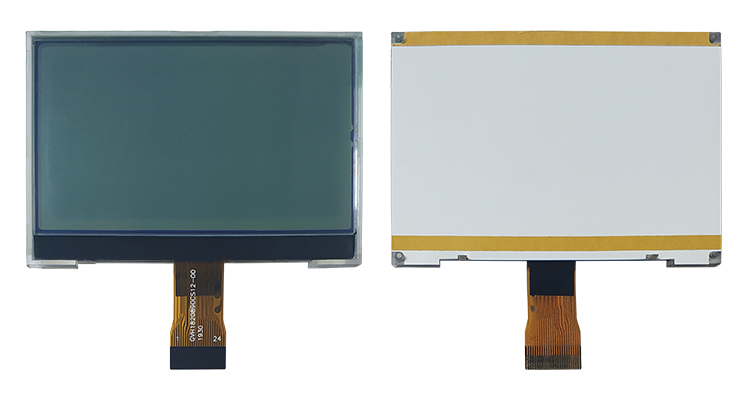

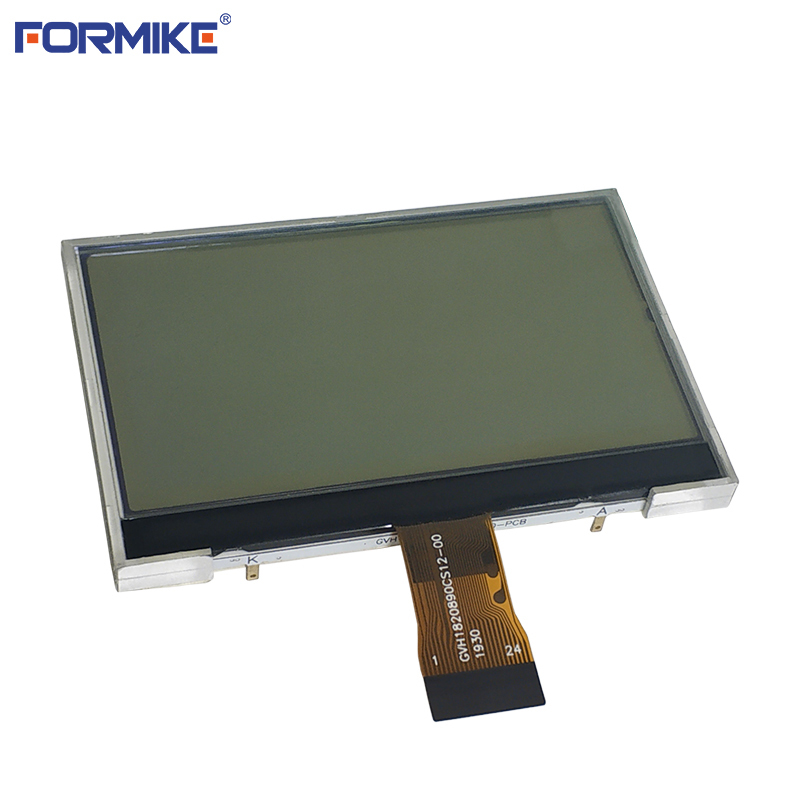

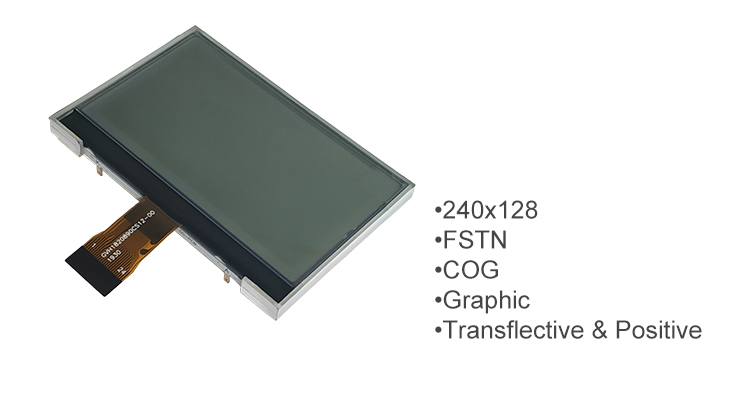

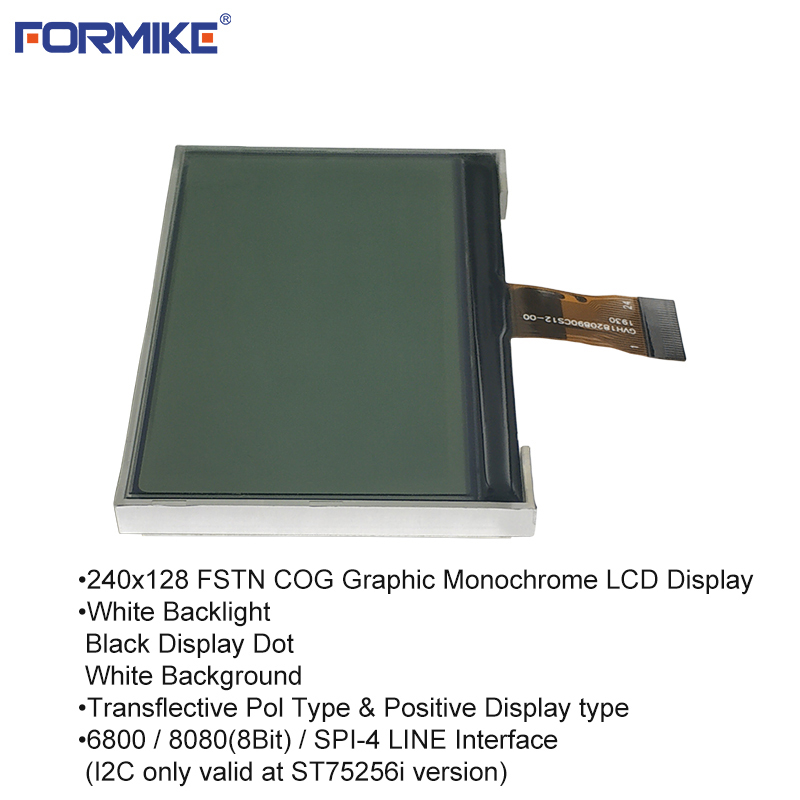

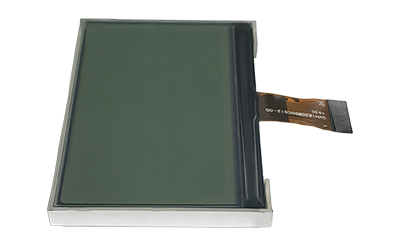

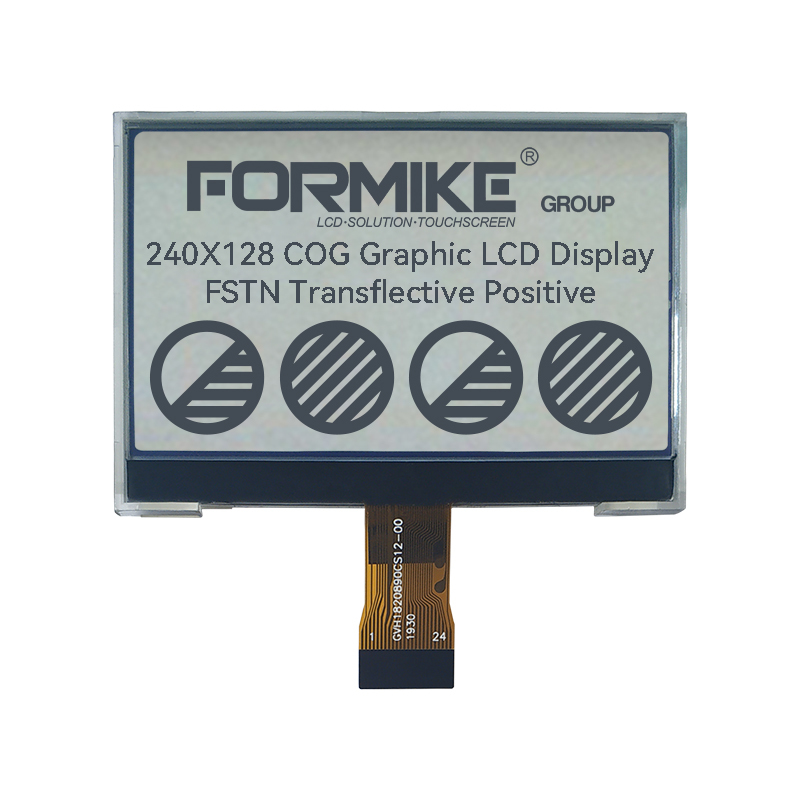

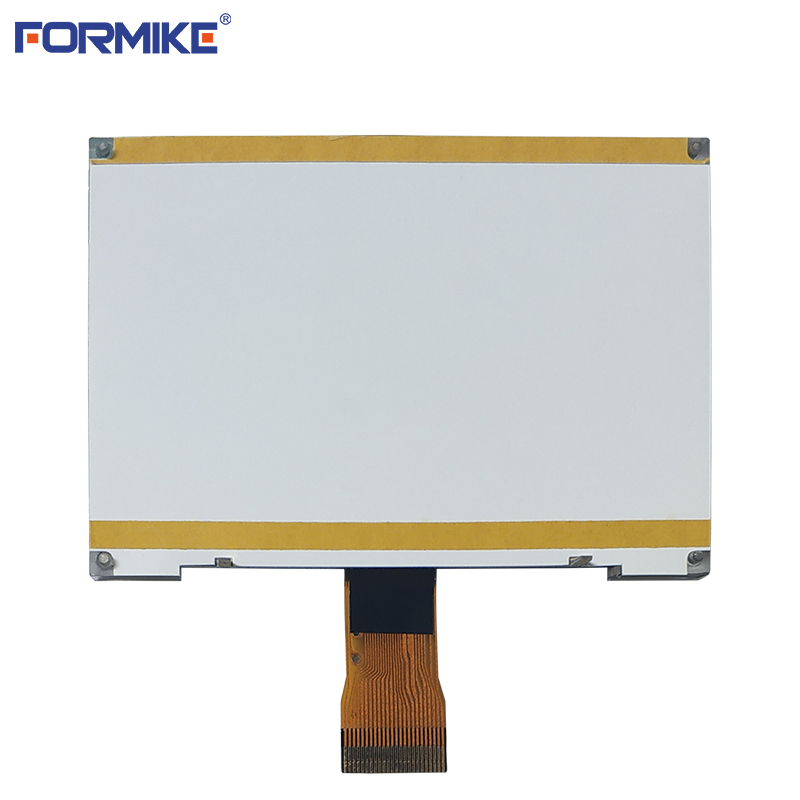

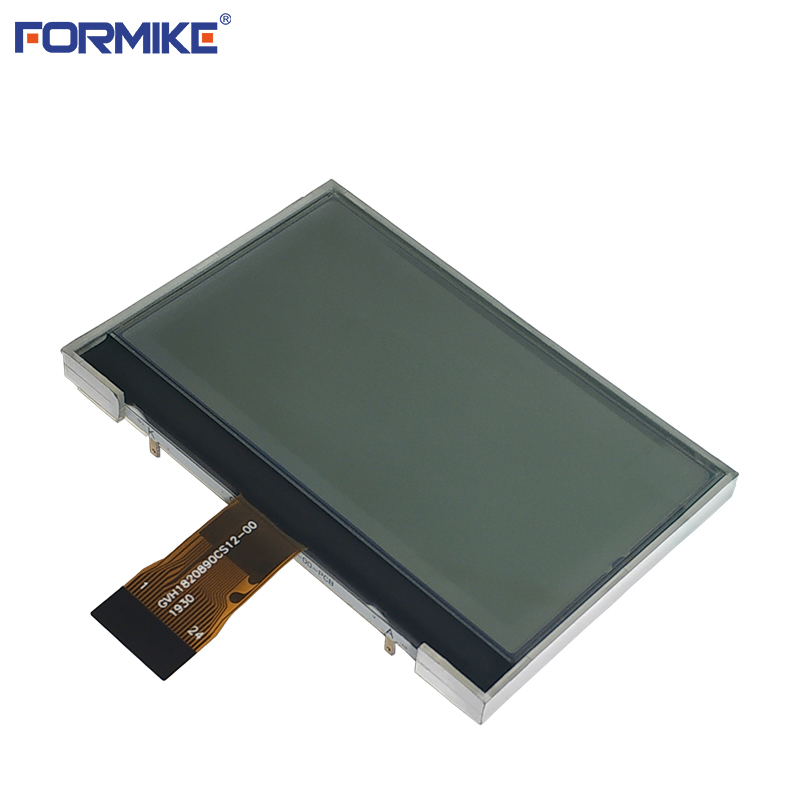

240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
240128 240x128 LCD FSTN COG Positive Display With St75256 And 24 Pin And 8bit 6800 8080 4 Line
Specifications
Display Format :
240x128 Dots
Backlight Color :
Black display dot on white background with white backlight
Product Name :
FSTN LCD 240128 240*128 FSTN COG Positive LCD Display with St75256 and 24 Pin and 8bit 6800 8080 4 Line SPI Interface
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Display Type :
Graphic COG LCD Display Module
Model Number :
WG2412Y7FSW7G
Dimensions :
71.5mm * 48.2mm * 5.3mm
Operating Voltage :
3.0V
Backlight :
LED
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Interface :
24 Pin, 6800/8080(8Bit) SPI-4 LINE / I2C only valid at ST75256i version
Controller :
ST75256
Viewing Angle :
12 O'clock
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
MOQ :
1 piece
Display Mode :
FSTN
Place of Origin :
China
Description

FSTN LCD 240128 240*128 FSTN COG Positive LCD Display with St75256 and 24 Pin and 8bit 6800 8080 4 Line SPI Interface

LCD Name FSTN LCD 240128 240*128 FSTN COG Positive LCD Display with St75256 and 24 Pin and 8bit 6800 8080 4 Line SPI Interface

Display Format

240 X 128 Dots

Display Mode

FSTN, Transflective, Positive

LCD Color

Display dot :White,

Background: Black

Driver IC

ST75256

Outline Dimension

71.5(W) x48.2(H) x5.3(T) mm

Viewing Area

65.5MIN(W) x38.0MIN(H) mm

Viewing Direction

12 O’clock

Interface Input Data

6800/8080(8Bit) SPI-4 LINE /
I2C only valid at ST75256i version

Backlight

White

Driving Method

1/128 Duty, 1/12 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃
