Specifications
Display Mode :
FSTN
Place of Origin :
China
Operating Temperature :
-20°C to 70°C
Dimensions :
144mm * 104mm * 17mm
Backlight :
LED
Controller :
SAP1024B
Product Name :
240x128 LCD Display 20 Pin 8 BIT Parallel LCD Module with FSTN Transflective Positive Mode
Interface :
20 Pin, 8 bit Parallel
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Model Number :
WG2412Y4FSW6B
Display Type :
Graphic LCD Display Module
Packaging Details :
Tray + Inner Box + Carton
Display Format :
240x128 Dots
Brand Name :
Formike
Operating Voltage :
5V
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight Color :
Black display dot on white background with white backlight
Viewing Angle :
6 O'clock
Description

240x128 LCD Display 20 Pin 8 BIT Parallel LCD Module with FSTN Transflective Positive Mode

FSTN Transflective Positive 240 * 128 LCD Display TFT Graphic Module 8 BIT Parallel

LCD Name

240x128 LCD Display 20 Pin 8 BIT Parallel LCD Module with FSTN Transflective Positive Mode

Display Format

240*128

Display Mode

FSTN,Transflective, Positive

Outline Dimension

144*104*17 mm

Active Area

107.95*57.55 mm

Viewing Direction

6 O’clock

DUTY/BIAS

1/128, 1/12

Type

COB

Viewing Area

114.0*64.0 mm

Color

Display dot : Black
Background: White

Backlight

White

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

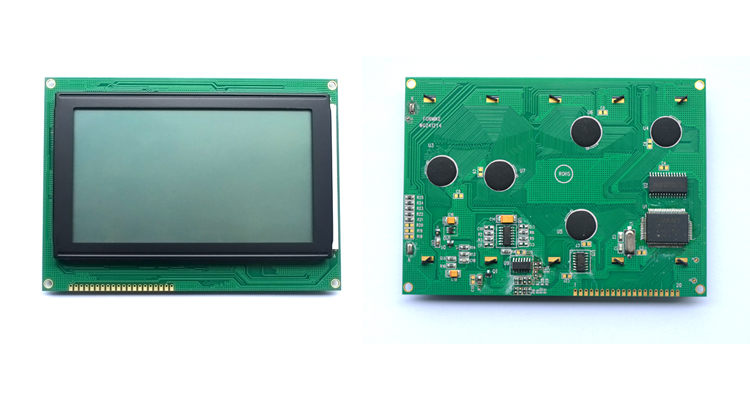

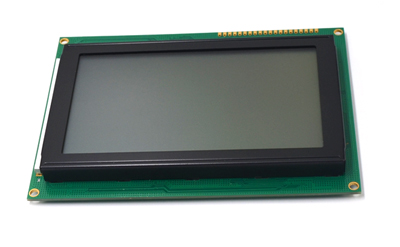

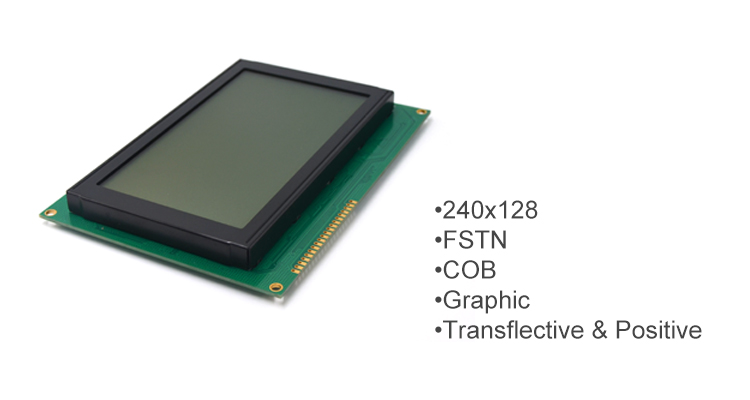

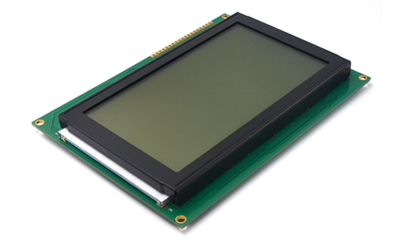

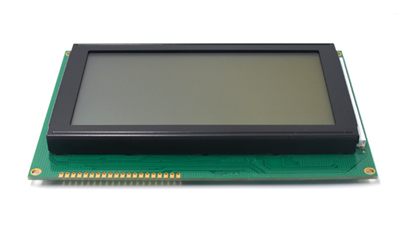

* WG2412Y4FSW6B is a Monochrome color COB type FSTN Positive,Transflective LCD.

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 240x128 dots monochrome Graphic FSTN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.
