Specifications
Backlight :
LED
Controller :
RA8835
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
320x240 Graphic LCD Screen 320240 COB STN LCD Display Module
Interface :
20 Pin+24 Pin+14 Pin+8 Pin, 8-bit 6800/8080 MPU
Model Number :
WG3224B0
Display Mode :
STN
Operating Temperature :
-20°C to 70°C
Dimensions :
160.0mm * 109.0mm * 11.5mm
Packaging Details :
Tray + Inner Box + Carton
Supply Ability :
5000000000 pieces/year
Display Format :
320x240 Dots
MOQ :
1 piece
Backlight Color :
Usually Y-G or Blue or Gray
Viewing Angle :
6 O'clock
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Voltage :
5V
Brand Name :
Formike
Display Type :
Graphic LCD Display
Description

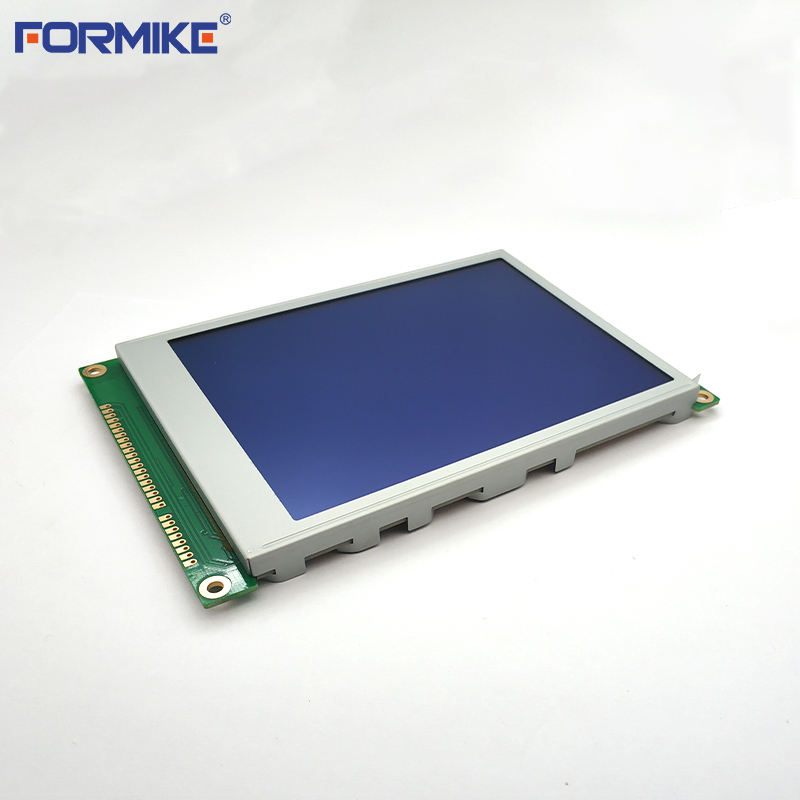

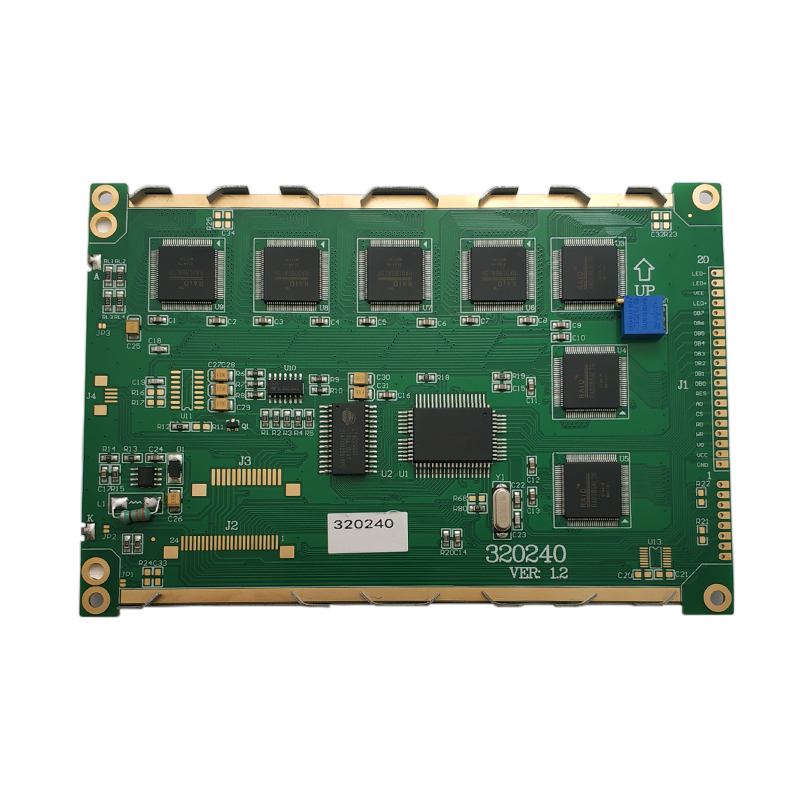

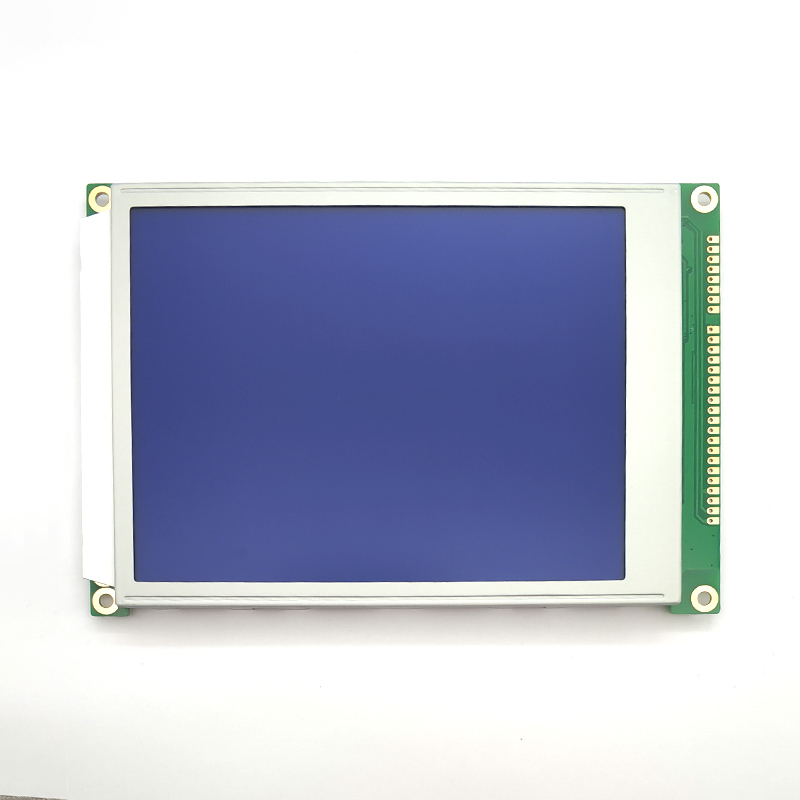

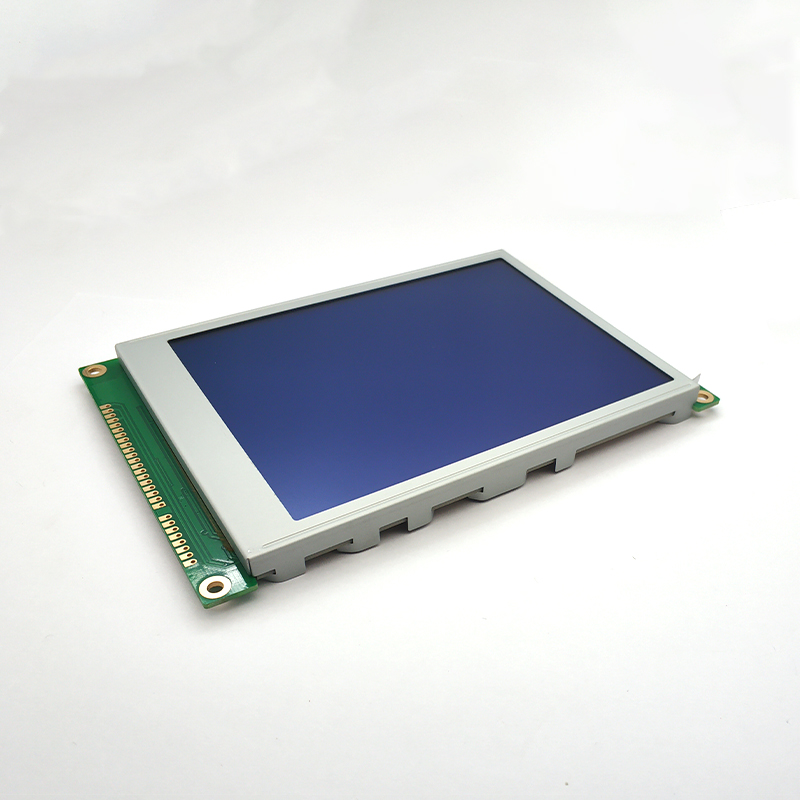

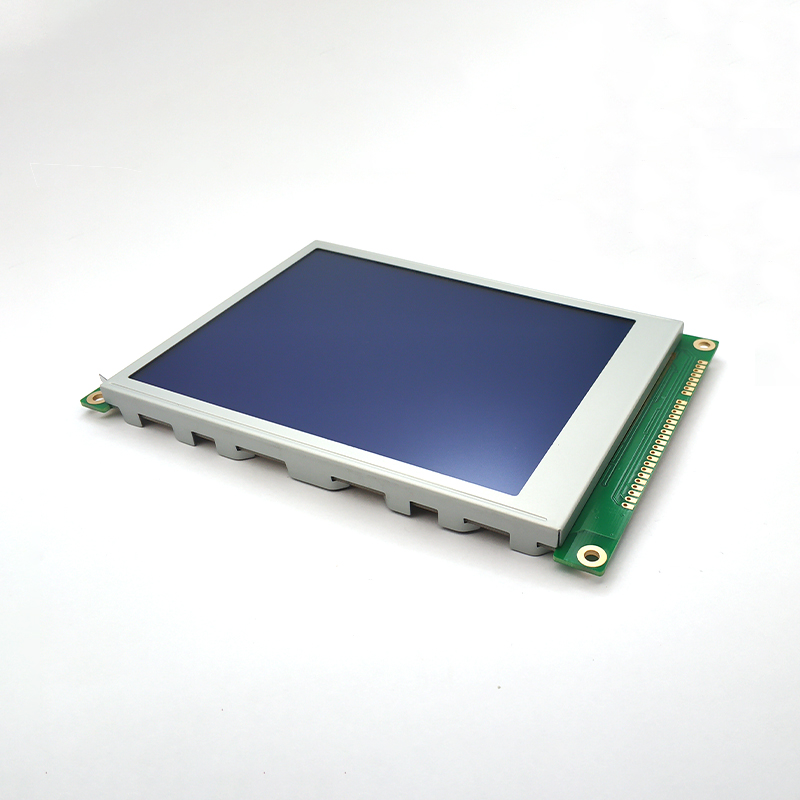

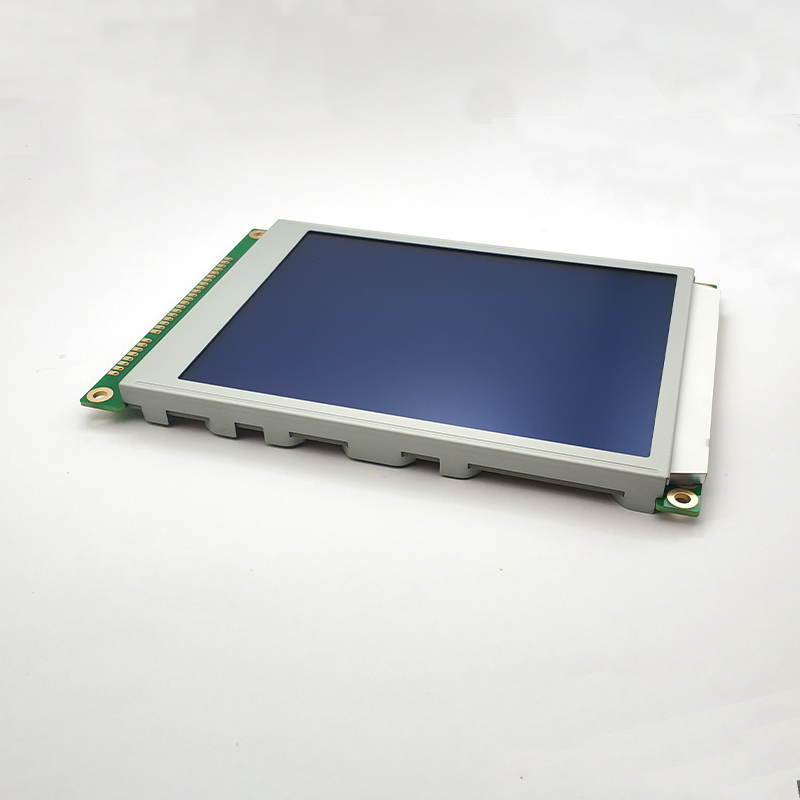

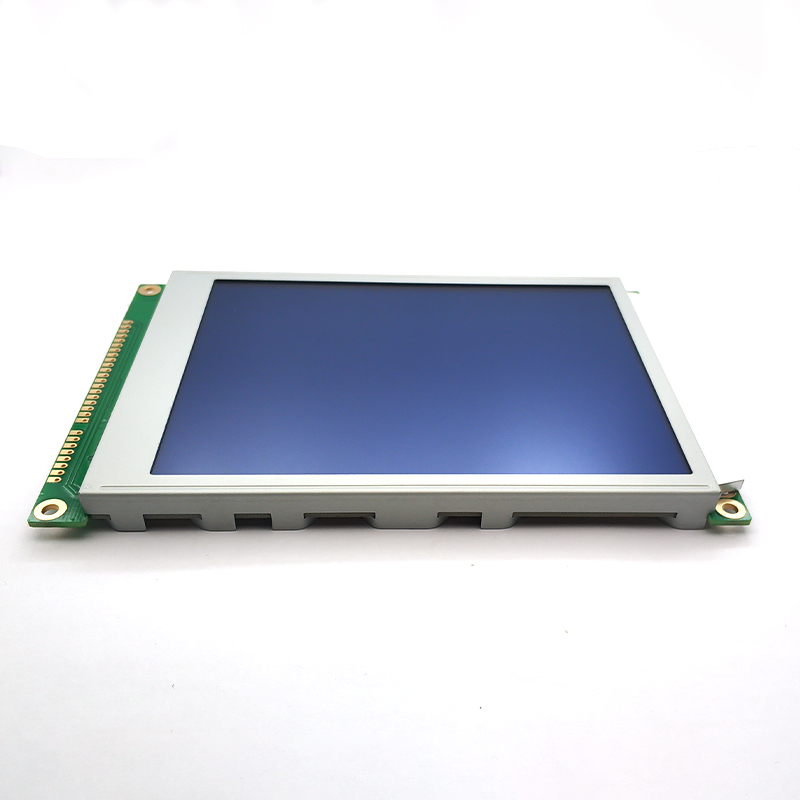

320x240 Graphic LCD Screen 320240 COB STN LCD Display Module

RTP Graphic LCD Display 240x128 COB STN Module 6800 8080 MPU

Product Specification
LCD Name 320x240 Graphic LCD Screen 320240 COB STN LCD Display Module
Display Format

320*240 Dots
Module Size 160.0mm×109.0mm×11.5mm
View Area 122.0mm×92.0mm
Active Area 115.17mmx86.37mm
Dot Size 0.33mm×0.33mm
Dot Pitch 0.36mm×0.36mm
IC RA8835
Interface

20 Pin+24 Pin+14 Pin+8 Pin,

8-bit 6800 / 8080 MPU interface enabled
Driving Method 1/240 Duty, 1/17 Bias
Touch Screen RTP Available (Default without TP)
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG3224B0SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
3 WG3224B0SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
5 WG3224B0SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
