Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard
Specifications
Brand Name :
Gold
Model Number :
GD-JASOD612
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
D/A,D/P,T/T,MoneyGram,Western Union,L/C
Supply Ability :
1 per 45 days
Delivery Time :
45days
Packaging Details :
standard wood box
Name :
JASO D 618
standard :
JASO D 618
size :
380mm (L) x 470mm (W) x 1250mm (H)
power supply :
220V 50HZ 2A
test chamber :
610 (H) mm x 310 (W) mm x 360 (L) mm, front open
Timing range :
0-9999s
Description

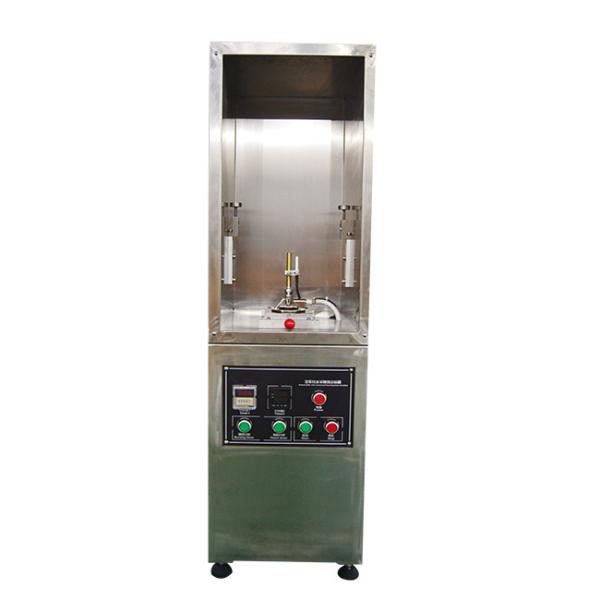

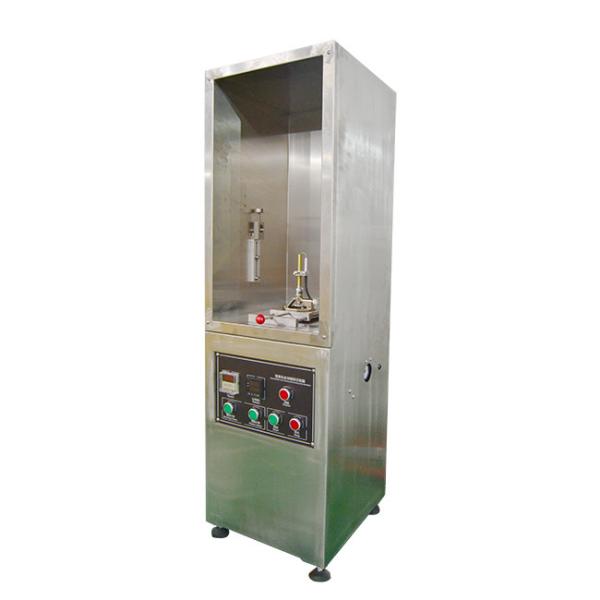

Automobiles Cable Horizontal Flame Test Chamber

Automobiles Cable Horizontal Flame Test Chamber JASO D618 Standard

Product description:

Automobiles cable horizontal flame test chamber is suitable for test and determination of low-tension cables with thin wall insulation for automobiles, keep cables under fire conditions until flaming, and self-extinguish after the flame is removed within 15s.

Standards:

· JASO D 618-2008 Low-tension cables with thin wall insulation for automobiles

Technical parameters:

· Integrated flame chamber, brushed stainless steel surface

· Test chamber: 610 (H) mm x 310 (W) mm x 360 (L) mm, front open

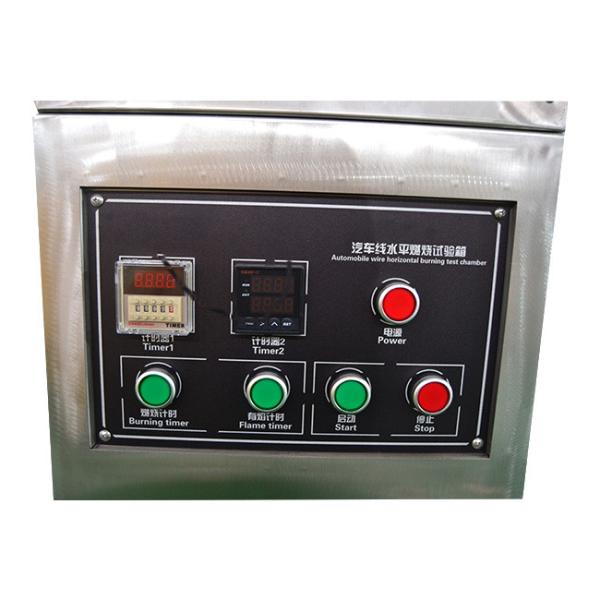

· Control mode: Automatic ignition, the blowtorch will go out automatically at the set time

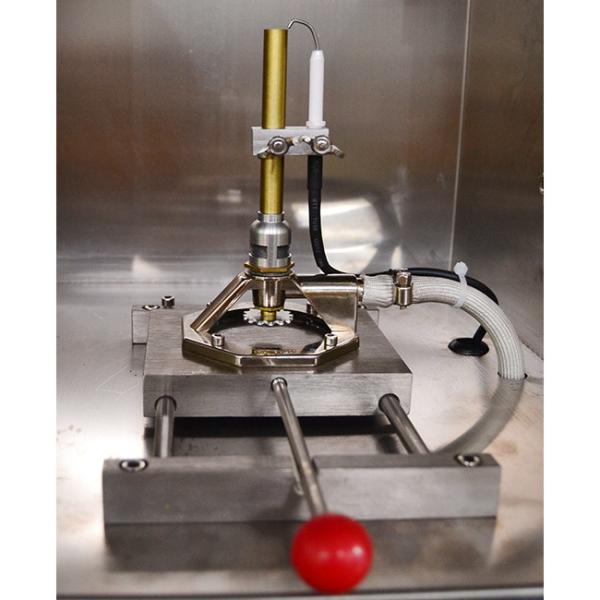

· Blowtorch: blowtorch inner diameter of 10mm, flame height of 35mm

· Timing range: 0-9999s

Specifications:

· Overall dimensions: 380mm (L) x 470mm (W) x 1250mm (H)

· Power supply: 220V 50HZ 2A
