ISO 12127 Contact Heat Transmission Combustion Tester For Clothing

ISO 12127 Contact Heat Transmission Tester Product introduce:

The through-material contact heat transfer tester is designed, developed, and manufactured in accordance with ISO12127-2007 and EN702. This instrument measures the heat transfer properties of a sample at a certain temperature by placing a heating cylinder in contact with the sample and calorimeter under a certain load. The instrument is easy to operate, provides accurate data, and is safe and reliable. It is widely used by companies and testing departments involved in fire protection clothing.

ISO 12127 Contact Heat Transmission Tester Standard:

ISO12127-2007

EN702

ISO 12127 Contact Heat Transmission Tester Specifications:

ISO 12127 Contact Heat Transmission Tester Product Feature:

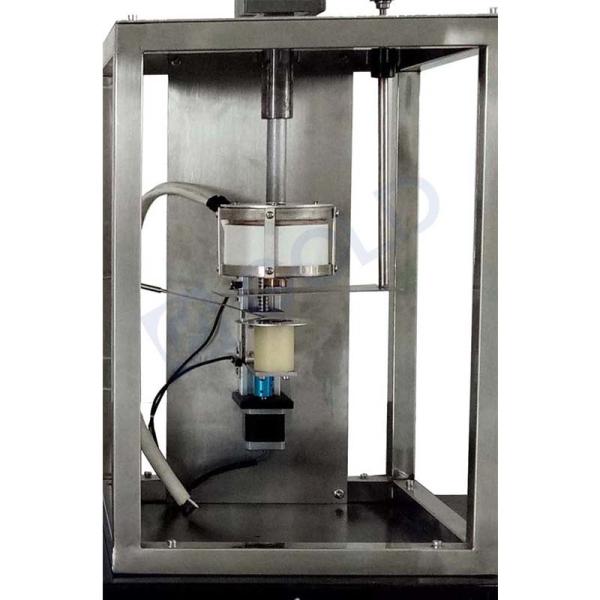

1. The equipment consists of a control box and a stainless steel test stand;
2. The sample holder automatically lifts and lowers at a speed of 5mm±0.2mm/s.
3. K-type armored thermocouple, diameter 2mm, temperature measurement accuracy 0.1ºC;
4. The temperature of the heating barrel is greater than 500°C; the sample contact surface diameter is 25.2±0.05mm
5. The heating barrel load weight is 49N, adjustable;
6. Timer timing range 9999s; timing accuracy 0.1s;
7. The calorimeter fixed plate has a diameter of 25mm and a thickness of 5mm; and is equipped with a platinum resistance temperature sensor;
8. The support frame material is nylon 66; diameter 40mm and height 50mm;
9. Sample diameter 80mm;
10. PLC and touch screen intelligent control system;
11. PID intelligent control of temperature rise, the system automatically collects temperature data;
12. The test data system automatically calculates and stores the data; it can be printed freely;
13. Test bench size: 650mm x 350 mm x 650mm
14. Power supply 220V 50/60Hz, power 800w
