ISO 9151 EN 367 Protective Clothing Heat Transmission Tester Flame Resistance Test

ISO 9151 EN 367 Protective Clothing Heat Transmission Tester Product introduce:

The thermal insulation clothing convection heat resistance test device is designed, developed and manufactured according to ISO9151 and EN367. This instrument measures the heat transfer performance of protective clothing under fire conditions. The instrument is easy to operate, accurate in data, safe and reliable, and is widely used in fire protection clothing related companies and testing departments.

ISO 9151 EN 367 Protective Clothing Heat Transmission Tester Standard:

ISO 9151

EN 367

ISO 9151 EN 367 Protective Clothing Heat Transmission Tester Parameter​:

ISO 9151 EN 367 Protective Clothing Heat Transmission Tester Product Feature:

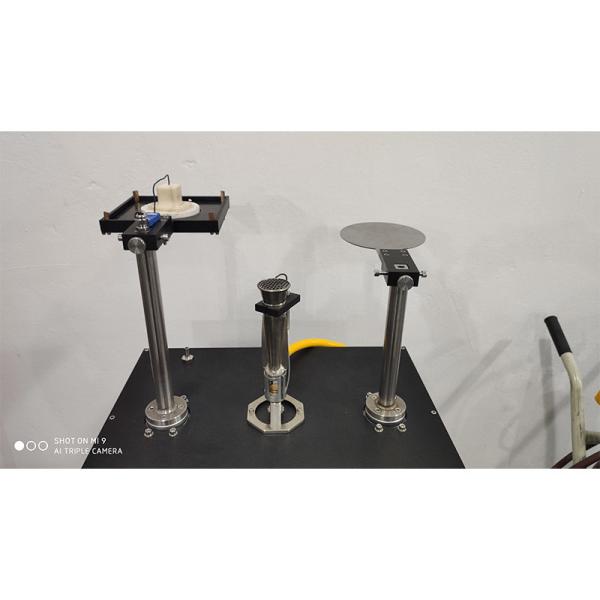

1. The equipment consists of a control box and a stainless steel test stand;
2. The copper calorimeter is made of 99% pure copper; diameter 40mm, thickness 1.6mm, weight 18g; constantan thermocouple;
3. The sample support frame is made of 1.6mm thick copper plate: the size is 150mmx150mm, and the middle opening is 50mm x 50mm;
4. The calorimeter is made of aluminum plate; the size is 149mm x 149mm; the thickness is 6mm; the diameter of the middle opening is 90mm; the weight is 264±13g;
5. The sample support frame is made of stainless steel; the distance between the sample and the burner mouth is 50mm;
6. The blowtorch is an imported Merkle blowtorch; the diameter of the blowtorch mouth is 38mm±2mm;
7. The imported flow regulating valve accurately adjusts the flame combustion heat;
8. Imported brand pressure gauges and pressure regulating valves;
9. The metal heat shield is placed between the blowtorch and the sample and can be moved freely;
10. Timer accuracy 0.1s;
11. Sample size 140mmx 140mm;
12. Equipped with metal plate 140mm x 140mm;
13. PLC and touch screen intelligent control system; realize more intelligent heat calibration; the system automatically calculates the heat value;
14. The system has automatic ignition and automatic timing;
15. The test data system automatically saves and retrieves, and test reports can be printed freely;
16. Thermocouple accuracy is 0.1ºC;
17. Test bench size: 650mm x 350 mm x 650mm;
18. Power supply 220V 50/60Hz
19. Industrial propane: prepared by the customer.
