Description
D Type Rubber Fender :
Feature :
  • Reasonable reaction force and high energy absorption ;
  • Easy to install and maintain or replace ;
  • Especially suitable for frame type wharf and shore protection of the wharf . It can also be used in protection of vessel .
Performance:
type(mm) Specification
Deflection(%) Reaction
Force(KN)		 Energy
Absorption(KN-M)
D150x150x1000 50 115 3.2
D200x200x1000 50 211 8.6
D250x250x1000 50 252 9.2
D300x300X1000 50 300 12
D300x360x1000 50 330 14.28
D400x400x1000 50 390 20
D500X500x1000 50 460 32

NOTE : Performance tolerance is ±10%

Specification:
type (mm) Specification
H B L Holes Q C h D d
D150x150x1000 150 150 1000 3 350 150 25 40 24
D200x200x1000 200 200 1000 3 350 150 35 55 30
D200x200x3000 200 200 3000 8 400 100 35 55 30
D250x250x1000 250 50 1000 3 350 150 35 60 30
D250x250x3000 250 250 3000 8 400 100 35 60 30
D300x300x1000 300 300 1000 3 350 150 40 65 32
D300x300x3000 300 300 3000 8 400 100 40 65 32
D300X360x1000 300 360 1000 3 350 150 40 65 32
D300x360x3000 300 360 3000 8 400 100 40 65 40
D400x400x1000 400 400 1000 3 400 150 55 80 32
D400x400x3000 400 400 3000 8 400 100 55 80 40
D500x500x1000 500 500 1000 3 350 150 90 97 45
D500x500x3000 500 500 3000 8 400 100 90 97 45
Accessories of Fenders:
No. Name Material
1 Bolt Q235 hot galvanized 0Cr17Nil2M02
1Cr13(2Cr13)1Cr18Ni9Ti,SUS304, SUS316
2 Washer Q235
3 Pre-built-in nut Q235 hot galvanized 1Cr13(2Cr13) 1Cr18Ni9Ti
4 Foot rod Q235

Foot board Q235

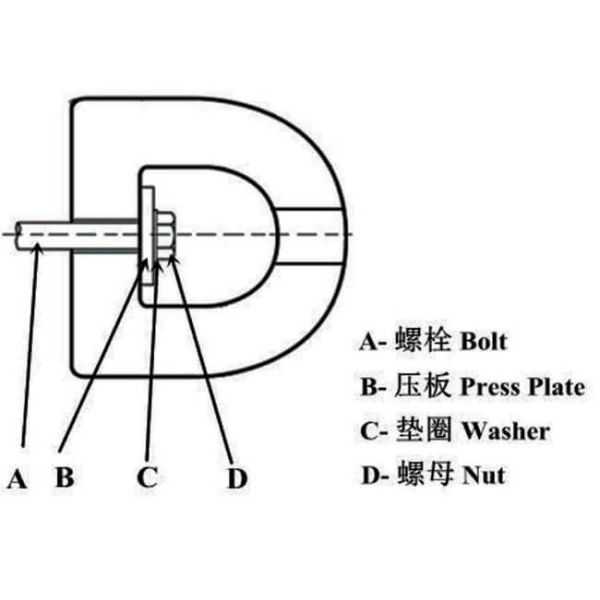

Installation Figure

 Harbor Wharf Floating Dock Fender D Type Rubber Fender Easy To Install And Maintain Or Replace Aging Resistance Custom Pontoon Fender System Boat Marina

Accessories Sizes
Fender Spec.		 Pressure Board Bolt Washer Nut
B S b R e c Q L1 n D L L0 h GB GB
D150x150x1000 50 8 24 12 20 140 350 980 3 M20 240 50 50 20 M20
D200x200x850 60 14 28 14 22 90 325 830 3 M24 350 60 70 24 M24
D200x200x900 60 14 28 14 22 140 600 880 2 M24 350 60 70 24 M24
D200x200x1000 60 14 28 14 22 140 50 980 3 M24 350 60 70 24 M24
D200x200x1500 60 14 28 14 22 140 400 1480 4 M24 350 60 70 24 M24
D300x300x850 100 16 34 17 28 90 325 830 3 M30 400 80 90 30 M30
D300x300x900 100 16 34gm 17 28 140 600 880 2 M30 400 80 90 30 M30
D300x300x1000 100 16 34 17 28 140 350 980 3 M30 400 80 90 30 M30
D300x300x1500 100 16 34 17 28 140 600 1480 3 M30 400 80 90 30 M30
D300x300x1500 110 16 34 17 28 4 400 1480 4 M30 400 80 90 30 M30
D300x300x1500 110 16 34 17 28 90 325 1480 5 M30 400 80 90 30 M30
D400x400x850 135 18 40 20 32 90 325 830 3 M36 500 110 116 36 M36
D400x400x1000 135 18 40 20 32 140 350 980 3 M36 500 110 116 36 M36
D400x400x1500 135 18 40 20 32 140 600 1480 3 M36 00 110 116 36 M36
D400x400x1500 135 18 40 20 32 40 400 1480 4 M36 500 1 116 36 M36
D400x400x1500 135 18 40 20 32 90 325 1480 5 M36 500 110 116 36 M36
D500x500x850 160 20 46 23 36 90 325 830 3 M42 600 30 126 42 M42
D500x500x1000 160 20 46 23 36 140 350 980 3 M42 600 130 126 42 M42
D500x500x1050 160 20 46 23 36 140 600 1480 3 M42 600 130 26 42 M42
D500x500x1500 160 20 46 23 36 140 400 1480 4 M42 600 130 126 42 M42
D500x500x1500 160 20 46 23 36 90 325 1480 5 M42 600 130 120 42 M42
