Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks
Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks
Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks
Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks
Specifications
Model Number :
fender-07
Place of Origin :
china
MOQ :
100
Payment Terms :
T/T
Delivery Time :
15-20
Description
Cone Rubber Fender
Feature
  • Can endure server shear force
  • Structure is more reasonable and increased deflection , high - energy absorption and longer service life
  • It has excellent life - stability in the Marine Enviroment .

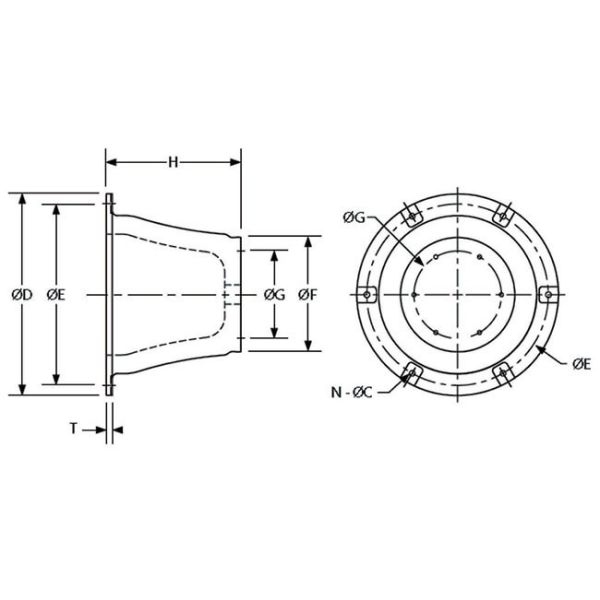

Specification

Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks

Model(mm) Specification
H 0 0G 0E OD Bolt Size N-0C T
CO500 500 425 325 675 750 M24 4-30 25
CO600 600 510 390 810 900 M24 6-30 27
CO700 700 595 455 945 1050 M30 6-38 32
CO800 800 680 520 1080 1200 M36 6-38 32
CO900 900 765 585 1215 1350 M36 6-44 36
CO1000 1000 850 650 1350 1500 M42 3-56 45
CO1100 1100 935 715 1485 1650 M42 6-50 50
CO1150 1150 998 750 1550 1725 M42 6-56 52
CO1200 1200 1020 780 1620 1800 M42 8-50 54
CO1300 1300 1105 845 1755 1950 M48 8-60 59
CO1400 1400 1190 930 1890 2100 M48 8-60 66
CO1600 1600 1360 1060 2160 2400 M48 8-70 72
CO1800 1800 1530 1190 2430 2700 M56 10-76 78

NOTE : Other sizes of rubber fender also available follow customers ' request

Angle Compression Performance Correct Factor
Angle 0° 3o 5° 7° 9° 0 11 3 5° 20 30
Reaction Force 1.0 1.0 1.0 1.0 1.0 0 .0 .0 1.0 .0 0.82
Energy
Absorption		 .0 1.0 1.0 1.0 1.0 .0 0.98 0.97 0.93 0.87 .63
Pre-built Parts
No Name Material
1 Bolt Q235 hot galvanized OCr 17Ni 12MO21Cr 13(2Cr13) 1Cr18Ni9Ti,
SUS304,SUS316
2 Washer ICr 18Ni9Ti Q235hot galvanized
3 Pre-built-in
Nut		 1Cr13(2r13)1Cr18Ni9TV/SUS304/SUS316
4 Rod Q235
5 Foot Board Q235
Performance
Model
(mm)		 Performance
Rated Compression Deflection 70% Max. Compression Deflection 72%
FS FH F0 FL FS FH F0 FL
R E R E R E R E R E R E R E R E
CO500 342 80.6 273 64.3 204 47.9 168 37.7 388 91.8 317 71.4 237 51 197 41.8
CO 600 490 160 390 130 289 95.9 230 76.5 533 164 438 132 325 06 263 86.7
CO700 665 240 532 185 320 53 314 122 705 248 579 196 435 157 348 127
CO800 879 375 720 300 512 229 410 183 949 388 850 300 588 257 437 212
CO900 1099 504 879 407 648 312 518 260 1213 527 976 440 717 4 569 275
CO1000 1366 682 1100 552 800 446 641 357 1537 750 1237 600 900 488 712 388
CO1100 1459 847 1169 663 946 505 816 416 1601 882 1284 695 1039 538 850 441
CO1150 1799 1050 1420 900 1059 679 847 543 2025 1125 1625 957 1175 731 937 600
CO1200 1883 1115 1526 97 1128 719 908 571 2086 1172 1698 1018 1252 754 1005 599
CO1300 2166 1617 1739 1336 1346 1064 1148 765 2358 1673 1938 1387 1567 1099 1224 816
CO1400 2300 1720 1840 1376 1472 1101 1173 877 2556 1791 2045 1433 1636 1147 1304 914
CO1600 3084 2467 2313 1974 1850 1579 1446 1259 3213 2570 2570 2056 2056 1645 1606 1311
CO1800 3825 3609 3060 2887 2449 2309 1950 1840 4249 3760 3400 3007 2720 2406 2168 1918

(1) - reaction force ( KN ), E - energy absorption ( KN - M )

(2) RS - ultra high reaction force , RH - high reaction force , RO - standard reaction force RL - low reaction force

(3) Performance tolerance :±10%

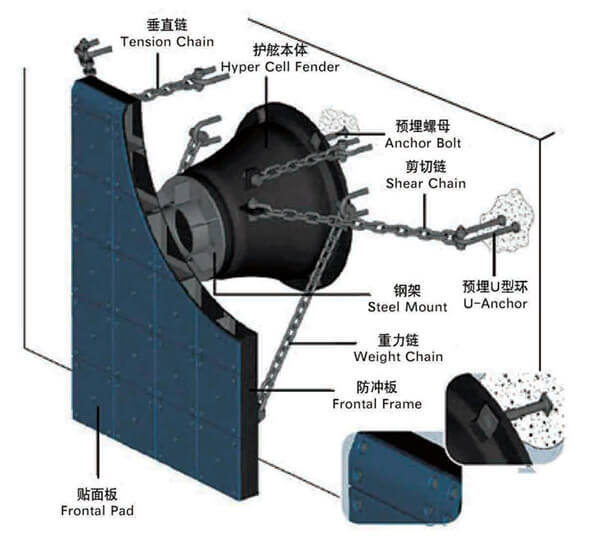

Installation Figure

Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks

Name Applications Material
Buffer Absorb ship berthing energy to protect dock
and vessels		 Rubber, Q235
Front Panel Reduce surface pressure in avoid of damage
of the fender&vessels		 Q235paint
Face Pad educe friction coefficient to protect hull UHMW-PE
Pre-built-in Sets Pre-built-in
Bolt&Nuts		 Fasten fenders onto dock stainless(or Q235 Hot dip
galvanized)
Pre-built-in U Ring Holding chains Q235 paint
(or hot dip Galvanized)
Link Bolt,Nut Connect fender and front panel , and other
accessories		 Stainless (or hot dip Galvanized)
Chain Weight Chain Support the front panel in void of sagging stainless(or Q235hot Dip
galvanized)
Tension Chain Limit fender deflection while Lower parts
under strain		 Q235hot dip galvanized or paint
Shear Chain Prevent fender system from shear deflection Q235hot dip galvanized or paint

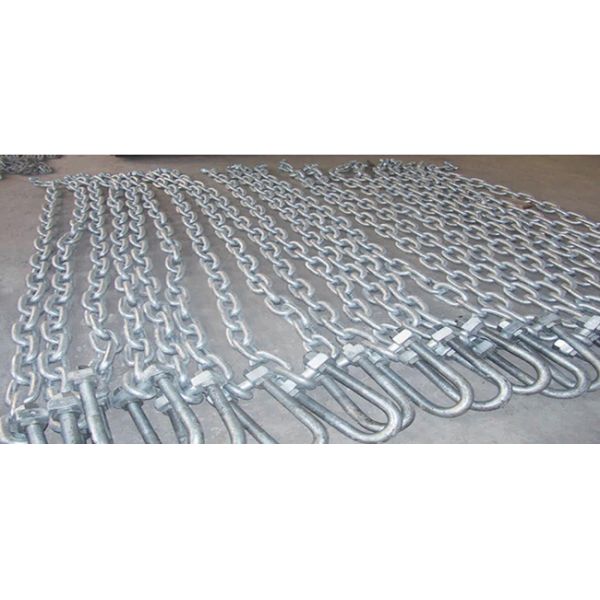

U-ring and Chain:

Cone Rubber Fender with High Energy Absorption Low Reaction Force and Corrosion Resistance for Marine Docks













Connective parts between fender and frontal frame:

Spec Bolt Washer
D J S H d1 d2 f
500H 24 50 40 15 26 44 4
600H 24 50 40 15 26 44 4
700H 30 55 45 19 33 56 4
800H 36 65 50 23 39 66 5
900H 36 75 60 23 39 66 5
1000H 42 80 65 26 45 78 6
1100H 42 80 65 26 45 78 6
1150H 42 85 70 26 45 78 6
1200H 42 92 75 26 45 78 6
1300H-1600H 48 100 80 30 52 92 8
1800H 56 120 100 35 62 105 10
Material Q235 hot galvanized Q235 hot galvanized

specification:

Type Bolt Washer Pre-built-in nut ／Foot rod ／Foot
board
D H J S M N D P Q U V R b e a L G T
CO500H M24 15 60 55 55 20 69 25 40 4 28 15 90 36 60 240 75 6
CO600H M24 15 65 60 60 20 83 30 48 5 28 15 100 36 65 240 75 6
C0700H M30 19 70 65 65 20 93 33 55 5 34 15 105 39 70 300 80 6
CO800H M36 23 85 70 70 24 102 35 62 5 40 15 120 44 85 360 85 0
CO900H M36 23 90 75 70 24 113 37 70 6 40 15 120 44 85 360 85 9
CO1000H M42 26 100 85 85 26 126 43 77 6 46 25 125 59 95 420 100 9
CO1190H M42 26 100 90 85 26 134 43 85 6 46 25 130 59 95 420 100 9
C01150H M42 26 100 90 90 28 142 46 90 6 46 25 130 59 95 420 100 12
CO1200H M42 26 110 95 90 31 144 46 92 8 46 25 140 59 100 420 100 12
C01300H M48 30 110 95 105 31 158 52 100 8 52 30 15 65 100 480 115 12
CO1400H M48 30 120 95 110 31 165 52 107 8 52 30 150 65 100 480 120 12
CO1600H
CO1800H		 M48 30 135 110 115 34 190 52 122 10 52 40 165 78 105 480 135 16
M56 35 135 110 115 40 207 60 137 10 60 40 165 78 105 560 140 16
