Wing DO Type Rubber Fender with Pre-built-in Steel Plate Mount and Double Bolt Fixation for Framework Quay
Wing DO Type Rubber Fender with Pre-built-in Steel Plate Mount and Double Bolt Fixation for Framework Quay
Specifications
Model Number :
fender-12
Place of Origin :
china
MOQ :
500
Payment Terms :
T/T
Delivery Time :
15-20
Description

Wing ( DO Type ) Rubber Fender

Feature :

1.DO type rubber fender is a new type fender on the basis of D type fender innovation , DO type fenderenlarge fender bottom width and pre - built - in steel plate mount , it can be fixed with double bolts , the strength of installation and utility life is much moreimproved tha D type fender .

2.Particularly applicable for framework quay , in addition it can be

Specification :

Wing DO Type Rubber Fender with Pre-built-in Steel Plate Mount and Double Bolt Fixation for Framework Quay

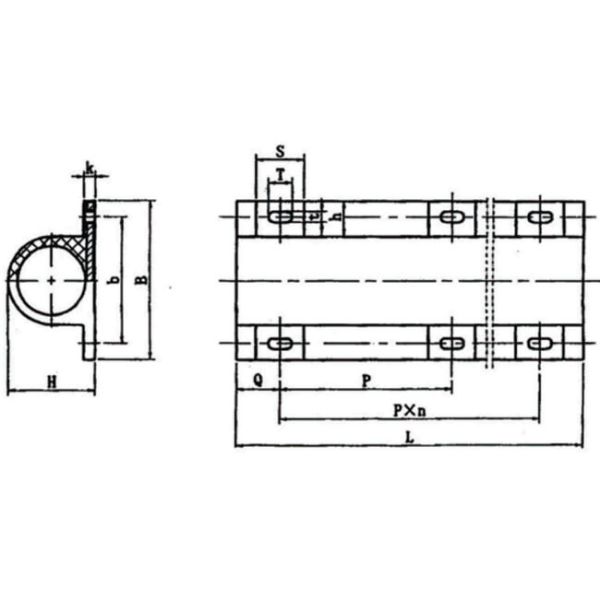

Specification Sizes
H B b L Q P S h T t K n
DO 280 x540x1000 280 540 430 1000 150 700 165 120 82 41 40 2
DO 280 x540 x1500 280 540 430 1500 150 600 165 120 82 41 40 3
DO 280 x540 x2000 280 540 430 2000 145 570 15 120 82 41 40 4
DO 280 x540x 2500 280 540 430 2500 150 550 165 120 82 41 40 5
DO 280 x600x3000 280 540 430 3000 150 540 165 120 82 41 40 6
DO 300 x600x1000 300 600 600 1000 150 700 165 120 82 41 40 2
DO 300 x600 x1500 300 600 600 1500 150 600 165 120 82 41 40 3
DO 300 x600x 2000 300 600 600 2000 145 570 165 120 82 41 40 4
DO 300x600 x2500 300 600 600 2500 150 550 165 120 82 41 40 5
DO 300 x600x3000 300 600 600 3000 150 540 165 120 82 41 40 6

NOTE : Other size of rubber fenders can be made follow customers " request

Performance :

Specification Dynamic Performance
Rated
Compression
Deflection		 (Kn)
Reaction Force		 (KN-M)
Energy
Absorb		 (%)
Tolerance
DO 280x 540 x 1000 50 382.5 14.28 ±10
DO 300x 600 x 1000 504.9 20.4

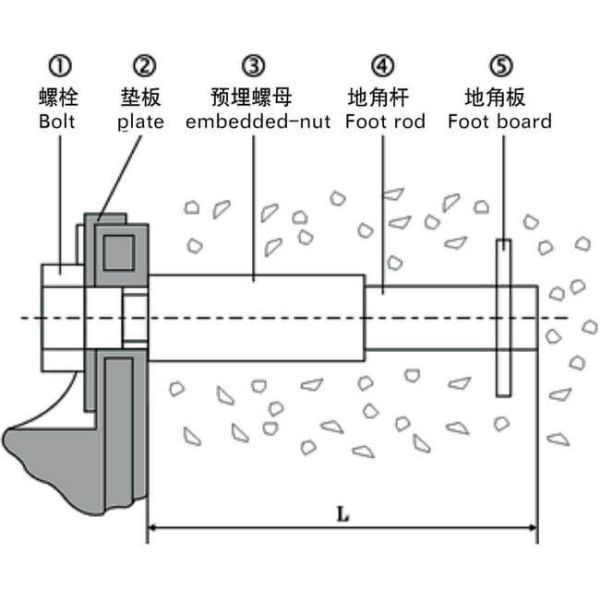

Installation Figure :

Name Bolt


Bolt





Pre-built Nut,
foot Rod, Foot Board





D J 5 H m N n UV QP R de
a b L T G
Sizes M36 95 80 23 119 126 22 643 58 25 M36 49 85 125 360 10-6 85

Wing DO Type Rubber Fender with Pre-built-in Steel Plate Mount and Double Bolt Fixation for Framework Quay

No. Name Material
1 Bolt Q235 hot galvanized
2 Washer Q235 hot galvanized
3 Pre-built-in Nut 1Cr13(2Cr13)1Cr18Ni9Ti
4 Anchor Bar Q235
5 Anchor Plate Q235
