Corrosion Resistant PIANC Certified Cell Rubber Fender with Front Panel for Easy Installation
Corrosion Resistant PIANC Certified Cell Rubber Fender with Front Panel for Easy Installation
Specifications
Model Number :
fender-11
Place of Origin :
china
MOQ :
300
Payment Terms :
T/T
Delivery Time :
10-20
Description

Cell Rubber Fender

Feature:

1.Low reaction force and high energy absorption

2.Easy to install and has long using life .

3.The fenders are fitted with front panel .

Specification :

Corrosion Resistant PIANC Certified Cell Rubber Fender with Front Panel for Easy Installation

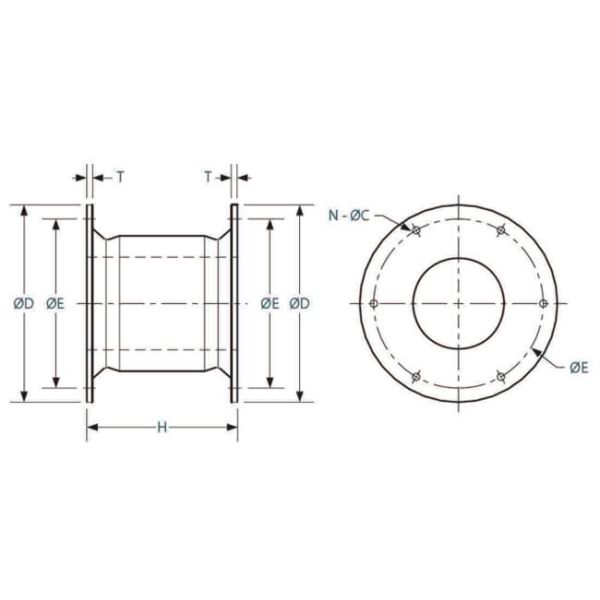

Type(mm) specification
H 0D 0F T (holes) N-0C
C400H 400 650 550 25 4 $30
C500H 500 650 550 25 4 $32
C630H 630 840 700 30 4 $39
C800H 800 1050 900 30 6 $40
C1000H 1000 1300 1100 35 6 $47
C1150H 1150 1500 1300 40 6 $50
C1250H 1250 1650 1450 45 6 $53
C1450H 1450 1850 1650 47 6 $61
C1600H 1600 2000 1800 50 8 $61
C1700H 1700 2100 1900 55 8 $66
C2000H 2000 2200 2000 55 8 $74
C2250H 2250 2550 2300 60 10 ①74
C2500H 2500 2950 2700 70 10 $90
C3000H 3000 3350 3150 75 12 $90

NOTE : Other size of fenders are also available follow customer ' s requests .

Performance :

Rated compression deflection :55%

Type Performance
Super High
Reaction
Force(FE)		 Super High
Reaction
Force(FS)		 Super High
Reaction
Force(FH)		 Super High
Reaction
Force(FO)		 Super
High Reaction
Force(FL)
(KN)
Reaction
Force		 (KN-M)
Energy
Absorption		 (KN)
Reaction
Force		 (KN-M)
Energy
Absorption		 (KN)
Reaction Force		 (KN-M)
EnergyA
bsorption		 (KN)
Reaction Force		 (KN-M)
Energy
Absorp
tion		 (KN)
Reaction Force		 E 吸能量
(KN-M)
Energy
Absorption
C400H 128 21.4 114 18.4 98.9 15.3 76.5 12.2 60 9.7
C500H 214 43.9 191 38.8 163 32.6 128 25.5 101 19.4
C630H 315 86.7 280 77.5 242 68.3 186 51 150 40.8
C800H 503 177 446 156 386 135 298 104 230 79.6
C1000H 800 350 710 310 615 269 472 207 379 166
C1150H 1058 531 938 472 814 409 626 315 501 252
C1250H 1250 682 1109 606 961 526 740 404 593 322
C1450H 1682 1066 1493 947 1294 820 996 631 797 505
C1600H 2047 1433 1817 1272 1575 1102 1213 849 969 678
C1700H 2311 1719 2052 1525 1778 1326 1369 1017 1095 814
C2000H 3199 2798 2839 2484 2461 2153 1893 1657 1515 1325
C2250H 4494 4424 3989 3925 3458 3403 2659 2617 2260 2224
C25001H 5550 6068 4926 5386 4266 4668 3284 3590 2792 3052
C3001 - - - - 6751 7971 5201 6149 4301 5297

NOTE :Performance tolerance ±10%

Max . compression deflection :55%

Type Performance
SuperHigh
ReactionForce(FE)		 Super High
ReactionForce(FS)		 Super High
ReactionForce(FH)		 Super High
ReactionForce(FO)		 High ReactionForce(FL)
(KN)
ReactionForce		 (KN-M)
EnergyAb
sorption		 (KN)
Reaction
Force		 (KN-M)
EnergyAb
sorption		 (KN)
Reaction
Force		 (KN-M)
EnergyAbs
orption		 (KN)
Reaction
Force		 (KN-M)
EnergyAbs
orption		 (KN)
Reaction
Force		 (KN-M)
EnergyAbso
rption
C40011 112 19.4 97.9 17.3 85 14.3 65.3 11.2 52 9.2
C500H 186 40.8 165 36.7 143 30.6 110 23.5 87.7 18.4
C630H 296 81.6 263 73.4 229 63.2 175 47.9 141 38.8
C800H 473 166 420 148 341 128 281 97.9 215.2 76.5
C1000H 752 331 668 293 578 254 445 195 356 156
C1150H 995 502 882 446 765 387 590 297 471 238
C1250H 1176 645 1042 572 903 496 696 382 557 305
C1450H 1582 1007 1404 894 1217 775 936 597 750 477
C1600H 1926 1353 1710 1201 1482 1040 1139 802 912 641
C1700H 2174 1623 1930 1441 1673 1249 1287 960 1029 768
C2000H 3000 2643 2671 2346 2315 2034 1781 1565 1426 1252
C2250日 4228 4177 3753 3701 3252 3213 2503 2473 2127 2101
C2500H 5220 5730 4634 5087 4016 4408 3089 3392 2625 2883
C3001 - - - - 5801 7605 4400 5790 3751 4995

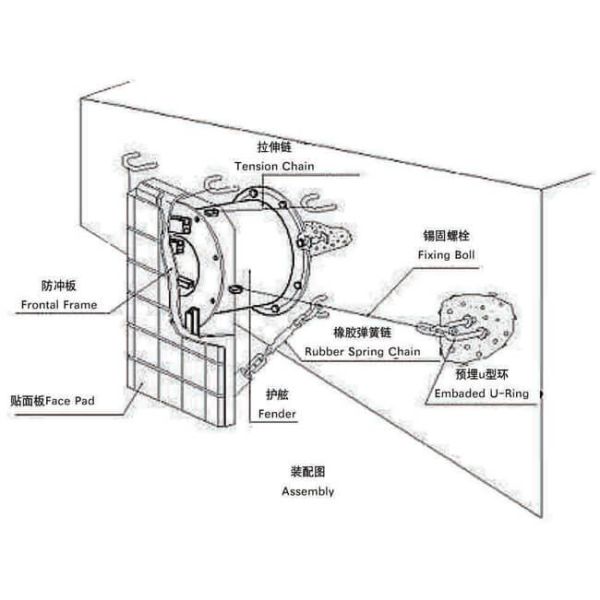

Installation Figure

Corrosion Resistant PIANC Certified Cell Rubber Fender with Front Panel for Easy Installation

Main Accessories and Applications

No Name Applications Material
1 Buffer Absorb ship berthing energy to protect dock and vessels Rubber Q235
2 Front Panel Reduce surface pressure ,to stand reaction force
generated by fender, increase contacting area		 Q235 painted
Q235 hot-galv
3 Face Pad Reduce frictioncoefficient to protect hull UHMW-PE
4 Pre-built-in Sets re-built-in bolt&nuts Fasten fender onto dock Stainless (or
Q235
hot-galv)
Pre-built-in
U ring		 Holding chains Q235 painted
Q235 hot-galv
5 Link Bolt,Nut Connect fender and front panel and other sets Stainless (or
Q235
hot-galv)
6


Chain

 Weight chain Support the front panel in void of sagging Q235hot
galvanized or
paint
Tension chain Limit fender deflection while lower parts
under strain		 Q235hot
galvanized or
paint
Shear chain Prevent fender system from shear deflection Q235hot
galvanized or
paint
