Super Arch Rubber Fender with High Energy Absorption Low Reaction Force and Long Usage Life for Marine Applications Set Of Manufacturers And Suppliers To Large
Super Arch Rubber Fender with High Energy Absorption Low Reaction Force and Long Usage Life for Marine Applications Set Of Manufacturers And Suppliers To Large
Specifications
Model Number :
fender-09
Place of Origin :
china
MOQ :
200
Payment Terms :
,T/T
Delivery Time :
10-20
Description
Super Arch Rubber Fender :
Feature
  • High energy absorption and low reaction force
  • Reasonable structure and long usage life
  • Convenient and deep - set installation .
Material :
No. Name Material Qty
1 Bolt Q235 Hot galvanized 1
2 Washer Q235 Hot galvanized 1
3 Pre-built-in Nut 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316 1
4 Foot Rod Q235 1
5 Foot Board Q235 1
Specification:

Super Arch Rubber Fender with High Energy Absorption Low Reaction Force and Long Usage Life for Marine Applications Set Of Manufacturers And Suppliers To Large

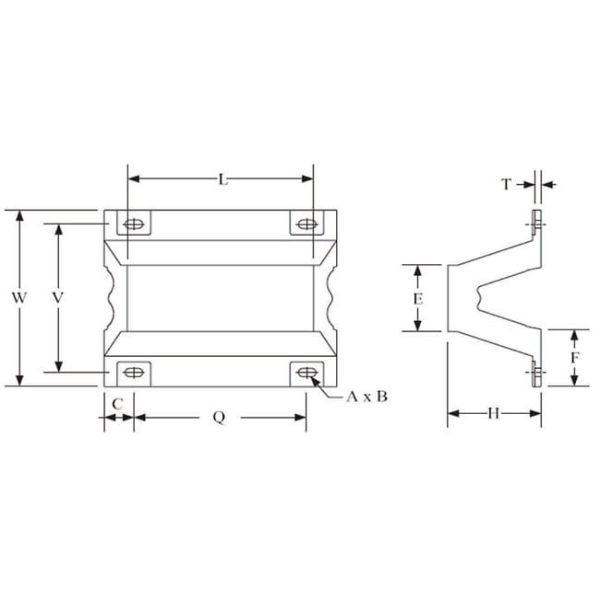

Specification Dimension(mm)
H L C Q n E V W F T A B
V-150x1000 150 1000 110 855 2 98 240 300 96 22.5 50 25
V-150x1500 150 1500 112.5 675 3 98 240 300 96 22.5 50 25
V-150x2000 150 2000 215 620 4 98 240 300 96 22.5 50 25
V-150x2500 150 2500 220 785 4 98 240 300 96 22.5 50 25
V-150x3000 150 3000 215 715 5 98 240 300 96 22.5 50 25
V-150x3500 150 3500 220 671 6 98 240 300 96 22.5 50 25
V-200x1000 200 1000 120 860 1 145 320 400 128 30 58 29
V-200x1500 200 1500 120 680 2 145 320 400 128 30 58 29
V-200x2000 200 2000 120 62 3 145 320 400 128 30 58 29
V-200x2500 200 2500 122.5 785 3 145 320 400 128 30 58 29
V-200x3000 200 3000 120 715 4 145 320 400 128 30 58 29
V-200x3500 200 3500 120 672 5 145 320 400 128 30 58 29
V-250x1000 250 1000 130 865
164 410 500 160 30 64 32
V-250x1500 250 1500 132.5 680 2 164 410 500 160 30 64 32
V-250x2000 250 2000 132.5 620 3 164 410 500 160 30 64 32
V-250x2500 250 2500 127.5 790 3 164 410 500 160 30 64 32
V-250x3000 250 3000 132.5 715 4 164 410 500 160 30 64 32
V-250x3500 250 3500 130 673 5 164 410 500 160 30 64 32
V-300x1000 300 1000 140 870
225 490 600 195 33 70 35
V-300x1500 300 1500 140 65 2 225 490 600 195 33 70 35
V-300x2000 300 2000 137.5 625 3 225 490 600 195 33 70 35
V-300x2500 300 2500 140 790 3 225 490 600 195 33 70 35
V-300x300 300 3000 145 715 4 225 490 600 195 33 70 35
V-300x3500 300 3500 140 674 5 225 490 600 195 33 70 35
V-400x1000 400 1000 150 900 1 300 670 800 260 4 82 41
V-400x1500 400 1500 150 700 2 300 670 800 260 4 82 41
V-400x2000 400 2000 147.5 635 3 300 670 800 260 4 82 41
V-400x2500 400 2500 150 800 3 300 670 800 260 4 82 41
V-400x3000 400 3000 150 725 4 300 670 800 260 4 82 41
V-400x3500 400 3500 150 680 5 300 670 800 260 4 82 41
V-500x1000 500 1000 160 930 1 375 840 1000 325 45 94 47
V-500x1500 500 1500 160 715 2 375 840 1000 325 45 94 47
V-500x2000 500 2000 157.5 645 3 375 840 100 325 45 94 47
V-500x2500 500 2500 160 810 3 375 840 1000 325 45 94 47

NOTE:Other sizes can be available follow customers request.

Performance length:1m
Rubber Grade Super High Reaction
Force(FS)		 High Reaction Force(FH) Standard Reaction
Force(FO)		 Low Reaction Force(FL)
52.5% 55% 525% 55% 52.5% 55% 52.5% 55%
Performance Reaction
Force
KN		 Energy
Absorp
tion
KN-M		 Reacti
Force
KN		 Energy
Absorp
tion
KN-M		 Reacti
0n
Force
KN		 Energy
Absorp
tion
KN-M		 Reacti
B
Force
KN		 Energy
Absorp
tlon
KN-M		 Reacti
0n
Force
K		 Energy
Absorp
tion
KN-M		 Reacti
0n
Force		 Energy
Absorp
fion
KN-M		 Reacti
Force
N		 Energy
Absorp
6om
KN-M		 Reacti
0n
Force
N		 Energy
Abeorp
liom
KN-M
Type
V-150H 35 7.1 82 8.4 147 6. 57 7. 87.7 4.1 1 5.1 58 3.1 79.6 4.1
V-200H 176 11.2 240 14.3 156 11.2 208 12.2 14 8.2 5 9.2 78.5 5. 04 5.1
V-250H 28 29 391 41.2 216 22.8 300 24 79 18.8 249 19.8 54 16.6 213 17.7
V-300H 330 41.8 460 44.8 254 31.6 353 33.7 2.9 25.5 300 27.4 8 22.4 25 24.5
V-400H 441 74.4 12 79.4 339 57.1 469 6.12 28 46.9 36 50 24 40.5 34 43.9
V-500H 55 15 765 23 423 89.5 588 94.9 35 73.4 487 78.5 301 69.4 418 67.3
V-600H 660 166 17 179 508 29 706 38 420 06 90 13 6 90.7 502 97
V-800H 881 296 1224 317 677 228 940 254 56 89 779 202 48 62 669 73
V-1000H 1101 463 1529 49 846 356 1176 8 703 295 975 17 602 253 35 27

NOTE:Performance tolerance is +10% or -10%

Fixing Parts
Spec Bolt Washer Pre-built-in Nut, Foot Rod. Foot Board
D J S H m N n P Q U V R a b e T L G
150H M22 55 50 14 68 12 60 23 32 5 24 10 50 75 28 6 165 50
200H M24 65 59 15 74 14 80 33 42 5 26 10 59 85 34 6 180 55
250H M27 65 60 17 88 16 95 42 48 5 30 15 60 95 34 9 200 55
300H M30 85 70 19 100 19 110 47 58 5 37 15 85 12 44 9 300
400H M36 95 80 23 119 22 126 52 68 6° 43 25 85 125 48 9 60 85
500H M42 110 90 26 127 25 145 56 83 6 49 30 95 140 58 12 420 110
600H M48 110 00 30 39 28 65 61 98 6 52 30 95 45 65 12 480 15
800H M64 150 120 40 195 32 266 124 134 8 70 40 125 90 78 16 640 30
1000
H		 M64 150 120 40 215 36 306 134 164 8 70 40 125 90 78 16 640 30
