W-Type Rubber Fender with Low Reaction Force, High Energy Absorption, and Easy Mounting for Marine Vessels
W-Type Rubber Fender with Low Reaction Force, High Energy Absorption, and Easy Mounting for Marine Vessels
Specifications
Model Number :
fender-19
Place of Origin :
china
MOQ :
1500
Payment Terms :
T/T
Delivery Time :
10-15
Description

W - type rubber fender

Features

1) It absorbs high energy absorption with low reaction force .

2) Convenient in mounting and repair .

3) It is available in bow bottom and stem of the vessels .

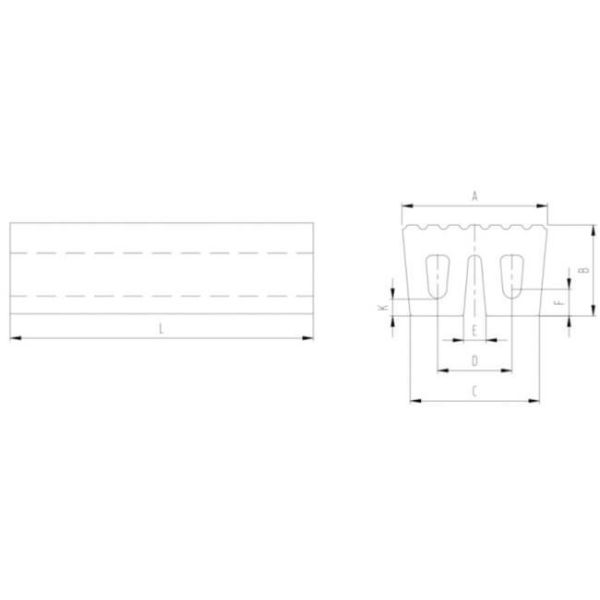

Specification

W-Type Rubber Fender with Low Reaction Force, High Energy Absorption, and Easy Mounting for Marine Vessels

UNIT : mm

TYPES Sizes(mm)
K B C D E F K L
W320x200 320 200 280 180 100 67 50 ≤2000
W400x250 400 250 346 220 104 75 55 ≤2000
W480x300 480 300 426 245 74 88 58 ≤3000
W500x330 500 330 420 248 76 90 65 ≤2000
W500x400 500 400 449 270 120 99 74 ≤2000
W500x450 500 450 420 225 90 100 75 ≤2500


Performance Curve

W480X300X1000L

Defiection
Rubber-comp		 Design Compressive Deflection 30%
Reaction
Force		 Energy
Absorption		 Tolerance
Standard type 705.6 31.3 ±10%
