D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width
D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width
Specifications
Model Number :
fender-18
Place of Origin :
china
MOQ :
1000
Payment Terms :
T/T
Delivery Time :
20-25
Description

D - type rubber fenders are divided into DD - type , DC - type and irregular D - type rubber fenders .

Features

1) With reasonable reaction force it may absorb more energy than that of cylindrical type

2) Convenientin mounting

3) It is usually used for dock of frame work type and ships due to the small size of its bottom wicth .


According to the installation methods , DD - type rubber fenders are divided into side hole mounted fenders and up and bottom hole mounted DD - type fenders .

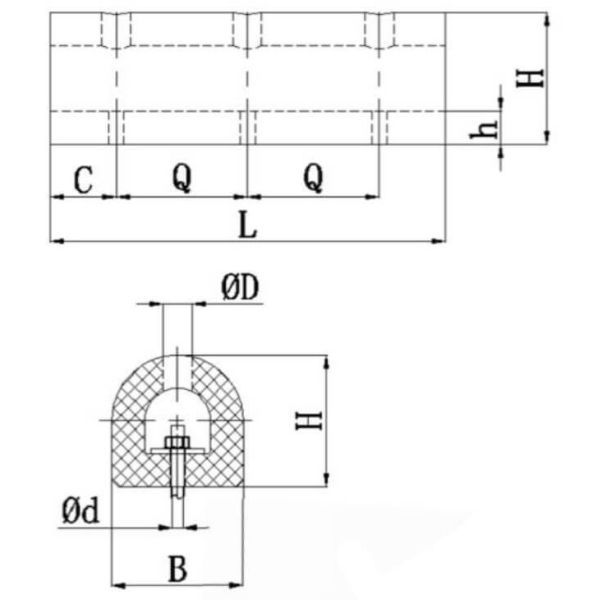

Up and bottorm hole mounted DD - type fenders


Specification

D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width

UNIT :mm

TYPES Specification Remarks
H B L Holes Q C h D d
D125X125X1000 125 125 1000 3 300~400 100~150 32.5 45 20 Fenders of
other
specificati
on and size
can be
discussed
with
customers
D150X150X1000 150 150 1000 3 300~400 100~150 37.5 60 25
D200X150X1000 150 200 1000 3 300~400 100~150 38 60 25
D200X200X1000 200 200 1000 3 300~400 100~150 50 60 30
D200X250X1000 250 200 1000 3 300-400 100~150 50 60 30
D250X250X1000 250 250 1000 3 300~400 100~150 62.5 65 32
D800X300X1000 300 300 1000 3 300~400 100~150 75 65 35
DB50X350X1000 350 350 1000 3 300~400 100~150 87.5 80 38
DB80X380XD00 380 380 1000 3 300~400 100~150 95 80 40
D400X400X1000 400 400 1000 3 300~400 100~150 100 80 40
D600X500X1000 500 500 1000 3 300~400 100~150 125 90 45

Performance

TYPES Performanee
Design compressive
deflection		 Reaction Force Absorption Energy Tolerance %
DI25X125X1000
58.5 1.4 ±10
D150X150X1000
75 2
D200X200X1000
0 3.6
D250X250X1000
126 5.7
D300X300X1000 40 5 8.2
D350X350X1000
176 10.8
D380X380X1000
189 12.65
D400X400X1000
o 14.5
D500X500X1000
252 22.7

Performance Curve

Deflection Rubber-comp Design Compressive Deflection 5%
ReactionForce Energy Absorption Tolerance
Stundardtype 151 8.2 ±10%

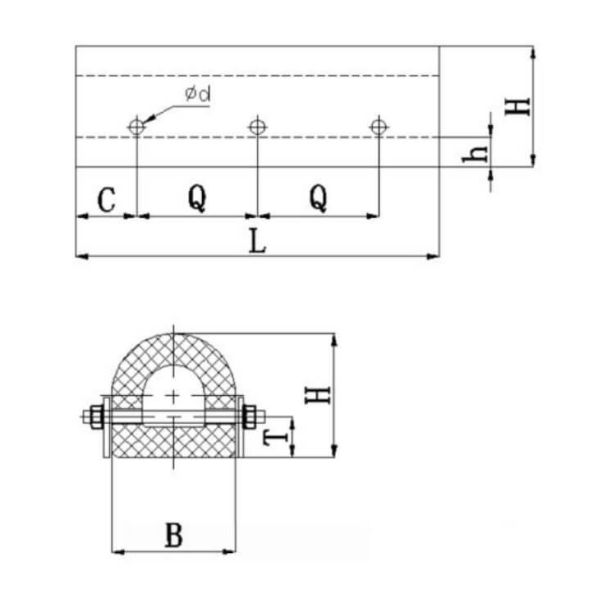

side hole mounted DD-type fenders

Specification

D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width

UNIT :mm

TYPES Specification Remarks
H B L Holes Q C h T d
DI25X125X1000 125 125 1000 3 300-400 100~150 32.5 45 20 Fenders of
other
specification
and size can
be discussed
with
customers
D150X150X1000 150 150 1000 3 300-400 100~150 37.5 55 25
D200X150X1000 150 200 1000 3 300-400 100~150 38 55 25
D200X200X1000 200 200 1000 3 300-400 100~150 50 70 30
D200X250X1000 250 200 1000 3 300-400 100~150 50 70 30
D250X250X1000 250 250 1000 3 300-400 100~150 62.5 85 32
D300X300X1000 300 300 1000 3 300~400 100~150 75 100 35
350X350X1000 350 350 1000 3 300-400 100~150 87.5 110 38
D380X380X1000 -
380		 380 1000 3 300-400 100~150 95 120 40
D400X400X1000 400 400 1000 3 300-400 100~150 100 125 40
D500X500X1000 500 500 1000 3 300-400 100~150 125 150 45

performance

TYPES Performance
Design
compressive
deflection		 Reaction Force Absorption Energy Tolerance%
D125X125X1000 50 121.4 2.1 ±10
D150X150X1000 150 3.5
D200X200X1000 207.3 8.4
D250X250X1000 250 9.9
D300X300X1000 294.3 11.8
D350X350X1000 338.5 15.7
D380X380X1000 Re0.6gm 17.7
D400X400X1000 382.6 19.6
500X500X1000 451.3 31.4

According to the installation methods , DC - type rubber fenders are divided into side hole mounted fenders and up and bottom hole mounted DC - type fenders

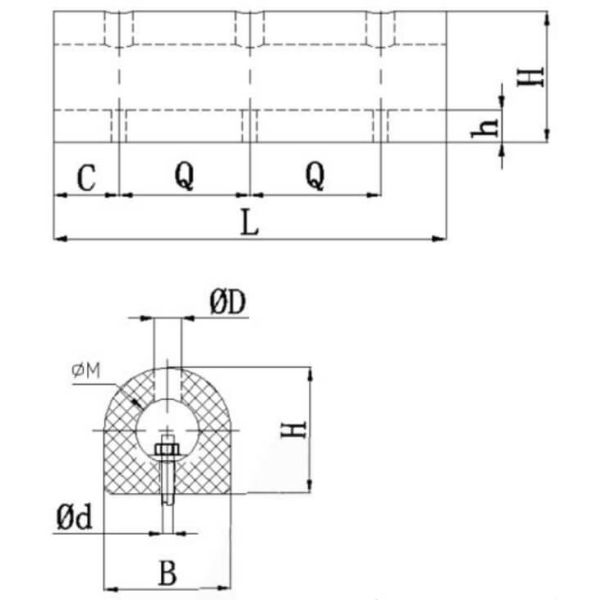

Up and bottom hole mounted DC - type fenders


Specification

D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width

UNIT : mm

TYPES Specification Remarks
M H B L Holes Q C h D d
DC150X1000 75 150 150 1000 3 300~400 100~150 37.5 60 25 Fenders
of other
specification
and
size can
be
discussed
with
customers
DC200X1000 95 ¥
200		 200 1000 3 300~400 100~150 50 60 30
DC250X1000 125 250 250 1000 3 300~400 100~150 62.5 65 32
DC300X1000 150 300 300 1000 3 300~400 号
100~150		 75 65 35
DC350X1000 150 350 350 1000 3 300~400 100~150 87.5 80 38
DC400X1000 200 400 400 1000 3 300~400 100~150 100 80 40
DC500X1000 250 500 500 1000 3 300-400 100~150 125 90 45

performance

TYPES Performance
Design
compressive
deflection		 Reaction Force Absorption Energy Tolerance %
DC150X1000 40 82 1.9 ±10
DC200x1000 109 3.4
DC250X1000 136 5.4
DC300X1000 165 7.7
DC350X1000 189 10.5
DC400X1000 218 14
DC500X1000 273 21.5

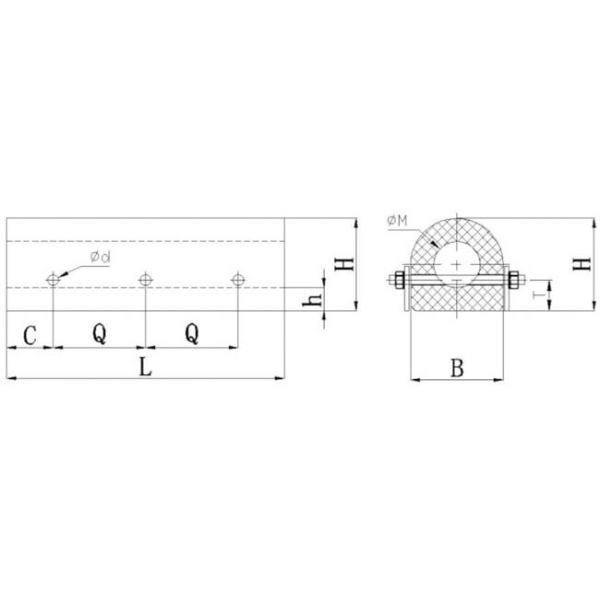

side hole mounted DC-type fenders

specification

D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width

UNIT : mm

TYPES Specification Remarks
M H B
Holes Q C h T d
DC150X1000 75 150 150 1000 3 300-400 100~150 37.5 55 25 Fenders with other
specifications could be
discussed with customers
and solved to produce.
DC200X1000 95 200 200 1000 3 300~400 100~150 52.5 70 30
DC250X1000 25 250 250 1000 3 300~400 100~150 62.5· 85 32
DC300X1000 150 300 300 1000 3 300-400 100~150 75 100 35
DC350X1000 150 350 350 1000 3 300~400 100~150 100 125 38
DC400X1000 200 400 400 1000 3 300-400 100~150 100 125 40
DC500X1000 250 500 500 1000 3 300~400 100~150 125 155 45

performance

TYPES Performance
Design
compressive
deflection		 Reaction Force Absorption Energy Tolerance%
DC150X1000 50 240 9 士10
DC200X1000 320 7
DC250X1000 396 11
DC300X1000 478 15.8
DC350X1000 6 21.5
DC400x1000 3 28
DC500X1000 803 14

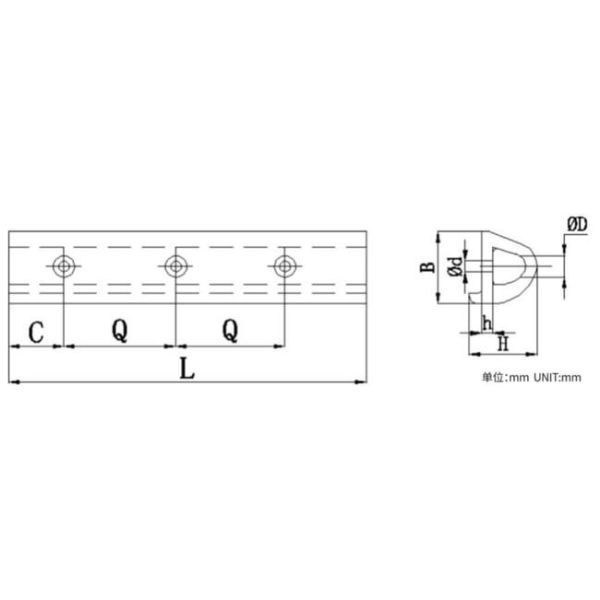

Irregular D-type rubber fenders

Specification

D-Type Rubber Fender Marine Fender with High Energy Absorption Convenient Mounting and Small Bottom Width

TYPES Specification
H a L Holes 0 c ¥ D 」
D202X190X1000 9d 07 1000 3 300-400 100'150 2 5 s
D270X350X1000 350 270 1000 3 100-400 100 150 i0 5 2
