GD Type Rubber Fender for Dock with High Energy Absorption Low Reaction Force and Long Service Life
GD Type Rubber Fender for Dock with High Energy Absorption Low Reaction Force and Long Service Life
Specifications
Model Number :
fender-26
Place of Origin :
china
MOQ :
1000
Payment Terms :
T/T
Delivery Time :
15-25
Description

GD type rubber fenders

Features

1) It absorbs high energy with low reaction force .

2) It is used for dock of frame work type .

3) It has high strength in installation and long service life

Specification

GD Type Rubber Fender for Dock with High Energy Absorption Low Reaction Force and Long Service Life

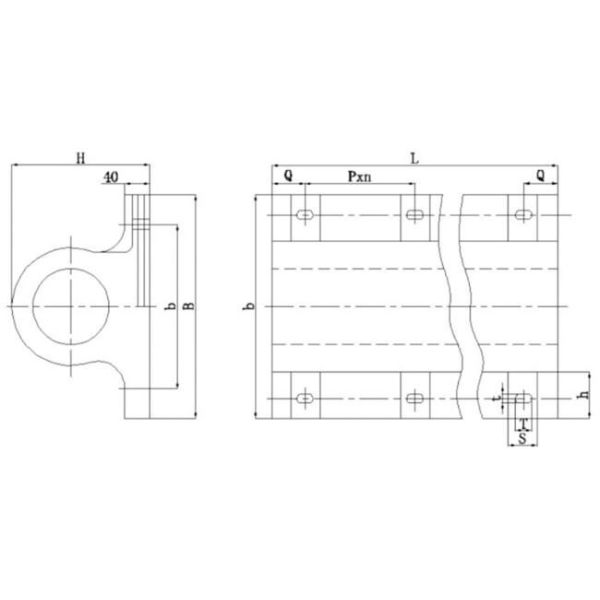

TYPES H B b L Q P s h T t n
GD280x1000L 280 540(600) 430(490) 1000 150 700 165/170 120 82/90 41/45 1
GD280x1500L 280 540(600) 430(490) 1500 150 600 165/190 120 82/90 41/45 2
GD280X2000L 280 540 430 200 4 570 165 120 82 41 3
GD280X2500L 280 540 430 2500 150 550 165 120 82 41 4
GD300X1000L 300 600 490 1000 150 700 165 120 90 45 1
GD300X1500L 300 600 490 1500 150 600 165 120 90 45 2
GD300X2000L 300 600 490 2000 145 570 165 120 90 45 3
GD300X2500L 300 600 490 2500 150 550 165 120 90 45 4

Performance

TYPES Design compressive deflection(%) Performance
Reaction Force Energy Absorption Tolerance%
GD280x1000L 50 371.0 14.0 +10
GD280X1500L 557.0 21.0
GD280X2000L 742.0 28.0
GD280X2500L 927.5 35.0
GD300x1000L 441.0 17.6
GD300X1500L 661.5 26.4
GD300X2000L 882.0 35.2
GD300X2500L 1102.5 44.0
