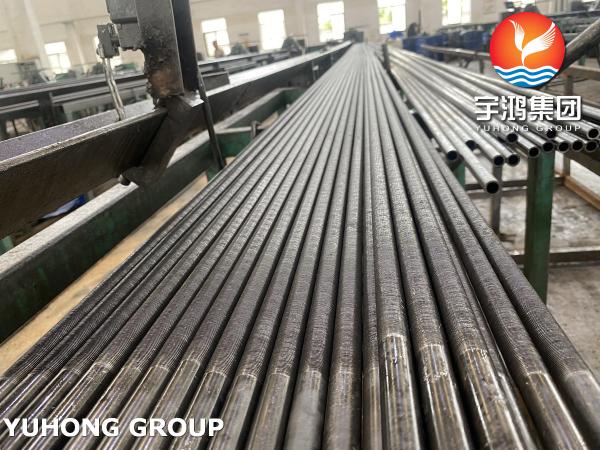

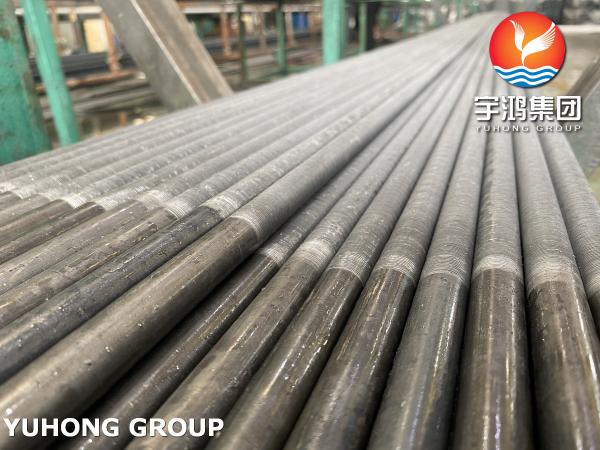

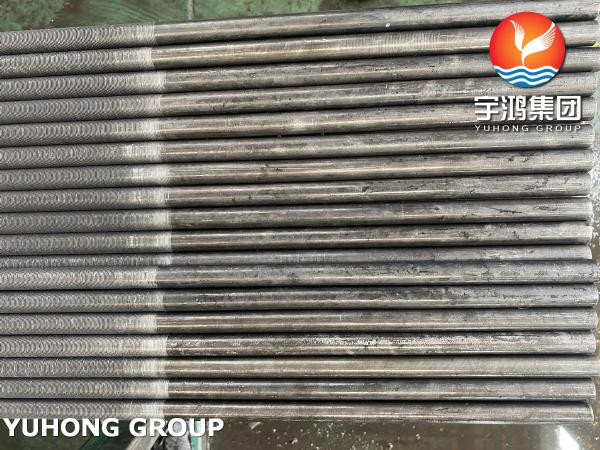

Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Robust ASME SA210 Integral Low Fin Tubes For Heating Pipes
Specifications
Brand Name :
YUHONG
Model Number :
Low Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Base Tube Material Grade :
GR A1
Base Tube Material Standard :
ASME SA210
Type :
Straight Tube
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type :
Low Fin
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description
Low Fin Tube ASME SA210 GR A1 Heat Exchanger Application
Product Specifications
Attribute Value
Base Tube Material Grade GR A1
Base Tube Material Standard ASME SA210
Type Straight Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type Low Fin
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description
Low fin tubes manufactured from ASME SA210 Grade A1 offer an optimal solution for high-efficiency heat exchangers, combining superior mechanical strength with enhanced heat transfer capabilities. These tubes are particularly well-suited for applications requiring robust performance in demanding thermal environments.
Material Characteristics
ASME SA210 Grade A1 covers seamless medium-carbon steel tubes intended for boiler and superheater tubes. The medium-carbon content ensures excellent mechanical properties, including high tensile and yield strength, while maintaining good ductility and toughness.
The integral low fins are precisely rolled from the base tube material, significantly increasing the external surface area and thereby enhancing the heat transfer rate. The fins are an integral part of the tube, ensuring structural integrity and eliminating the risk of fin detachment.
Low fin tubes made from ASME SA210 Grade A1 are a superior choice for heat exchanger applications that demand high mechanical strength and efficient heat transfer. Their enhanced surface area, combined with the robustness of medium-carbon steel, ensures reliable performance and longevity in various industrial environments.
Key Features
  • Compact design allows for space-saving heat exchanger configurations
  • Cost-effective solution with material and installation savings
  • Enhanced heat transfer efficiency through integral low fins
  • Excellent mechanical properties including high tensile strength
  • Versatile applications across multiple industries
Technical Specifications
Chemical Composition
Grade C Mn Si P S
A1 0.27 Max 0.93 0.10 0.035 0.035
Mechanical Properties
Tensile Strength Yield Strength Elongation Hardness
≥415 ≥255 ≥30 ≤79
Wall Thickness Tolerance
Outer Diameter (mm) Wall Thickness Tolerance
1½ (38.1) and under +20 / -0
Over 1½ (38.1) +22 / -0
Applications
  • Power Generation: Feedwater Heaters, Economizers
  • Petrochemical and Chemical Processing: Process Coolers and Heaters, Heat Recovery Units
  • HVAC and Refrigeration Systems
  • Marine and Offshore Applications: Oil and Gas Platforms
  • Industrial Heat Exchangers and Condensers
