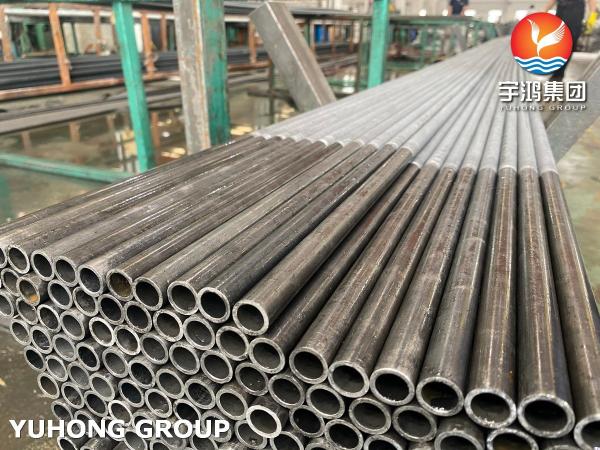

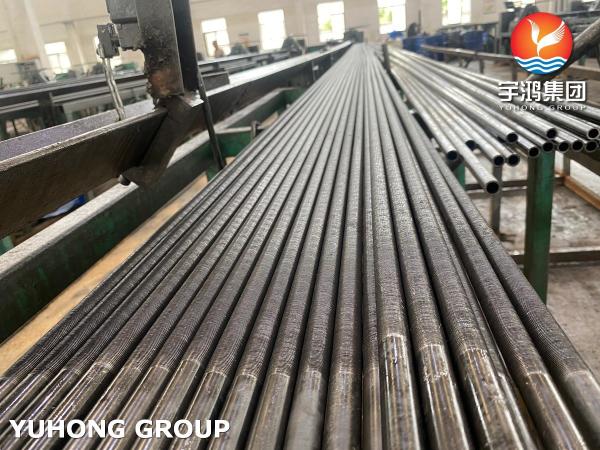

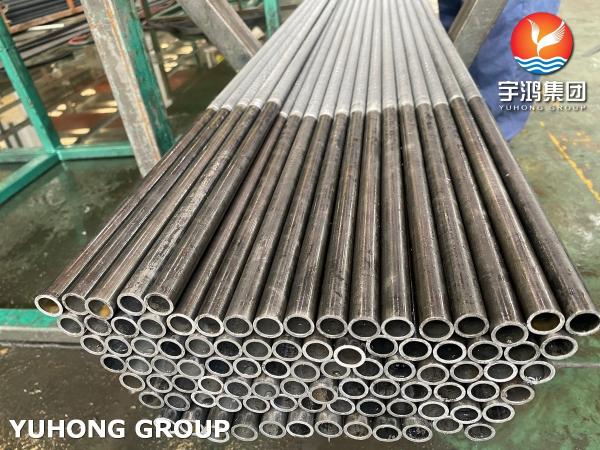

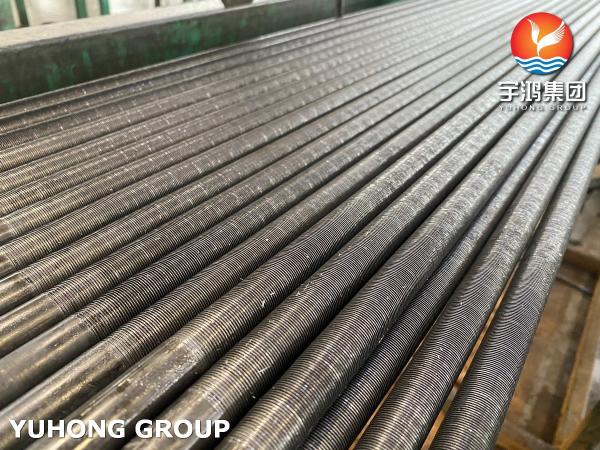

ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
ODM Carbon Steel Cooling Low 3/4 Fin Tube For Pipe Heat Exchanger In Refinery Industry
Specifications
Brand Name :
YuHong
Model Number :
ASTM 179
Certification :
ISO, ABS, BV, ISO, ASTM, SGS
Place of Origin :
China
MOQ :
200~500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
According to Clients' requirements
Delivery Time :
35-60 Days (Depend on Customer's Requirements)
Packaging Details :
Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Product Name :
Low Finned Tube
Base Tube Specification&Material :
ASTM A179
Fin Height :
＜1.6mm
Fin Thickness :
~0.3mm
Base Tube OD :
10~38mm
Fin Pitch :
0.6~2mm
Application Industries :
Heat recovery systems, Petrochemical and Refinery, Power Plants
Description
Low Finned Tube ASTM A179 Carbon Steel For Heat Exchanger In Refinary Industry
Product Specifications
Attribute Value
Product Name Low Finned Tube
Base Tube Specification & Material ASTM A179
Fin Height <1.6mm
Fin Thickness ~0.3mm
Base Tube OD 10~38mm
Fin Pitch 0.6~2mm
Application Industries Heat recovery systems, Petrochemical and Refinery, Power Plants
Product Overview

A low finned tube is a specialized heat exchanger tube featuring external finning that enhances surface area for superior heat transfer between the tube and surrounding fluids or gases. With smaller, more densely packed fins than standard tubes, these components deliver exceptional heat transfer coefficients, making them ideal for demanding thermal applications.

Key Advantages of ASTM A179 Low Finned Tubes
  • Enhanced Heat Transfer: Fin geometry increases surface area for optimal thermal efficiency
  • Superior Performance: Outperforms standard bare tubes in heat transfer applications
  • Energy Savings: Reduces operational costs through improved efficiency
  • Anti-Fouling Design: Minimizes surface deposits and maintenance requirements
  • Space Efficiency: Compact footprint enables installation in constrained spaces
  • Material Versatility: Available in ASTM A179 and other alloys for specific application needs
ASTM A179 Material Properties

ASTM A179 carbon steel offers high thermal conductivity, excellent ductility, and reliable corrosion resistance:

Chemical Composition
  • Carbon (C): 0.06-0.18%
  • Manganese (Mn): 0.27-0.63%
  • Phosphorous (P): 0.035% max
  • Sulfur (S): 0.035% max
Mechanical Properties
  • Tensile strength: 325 MPa (minimum)
  • Yield strength: 180 MPa (minimum)
  • Hardness: HRB 72 max
  • Elongation: 35% min
Industrial Applications

ASTM A179 low finned tubes serve critical roles in numerous industrial processes:

  • Heat exchangers requiring high thermal transfer rates
  • Air cooler systems for temperature regulation
  • Refrigeration systems for energy-efficient cooling
  • Condensers with enhanced efficiency and reduced fouling
  • Boiler systems for waste heat recovery
  • Chemical processing equipment demanding thermal performance
  • Petrochemical operations handling oils and chemicals
  • Power generation components including turbines and heat exchangers
ODM Carbon Steel Cooling Low 3/4
