ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
ASTM B111 C12200 Cooling Copper Tube Aluminum Fin Coil Pipe Bundle Custom
Specifications
Brand Name :
YUHONG
Model Number :
Seamless Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Material Grade :
C12200
Material Standard :
ASTM B111 , ASME SB111
Type :
Straight Tube
Application :
Heat Exchangers, Condensers, Coolers, Etc.
Fin type :
Low Fin
Fin Material :
Copper
Description
ASTM B111 C12200 Low Fin Tube For Heat Exchanger Condenser Tube Bundle
Product Specifications
Attribute Value
Material Grade C12200
Material Standard ASTM B111, ASME SB111
Type Straight Tube
Application Heat Exchangers, Condensers, Coolers, Etc.
Fin type Low Fin
Fin Material Copper
Product Description

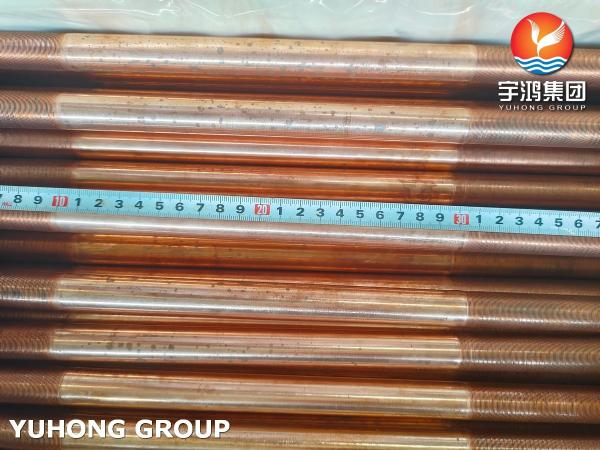

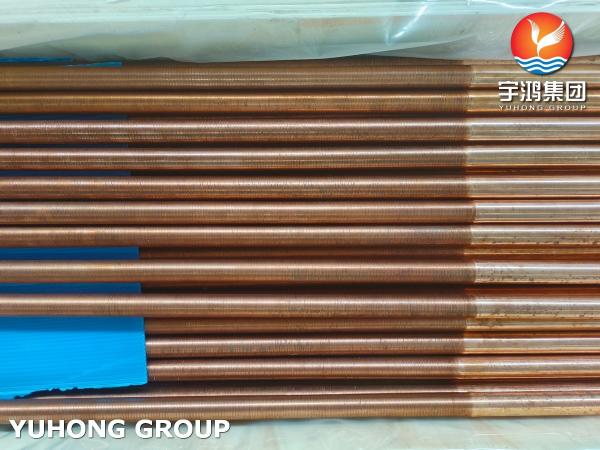

ASTM B111 C12200 Low Fin Tube is a copper alloy tube with low fins designed to increase surface area for enhanced heat transfer. Manufactured from phosphorus-deoxidized copper, this tube offers exceptional thermal and electrical conductivity.

The low fin design maximizes heat transfer efficiency without significantly increasing volume. It provides good resistance to various environments including water and mild chemicals, and can be easily fabricated and joined through brazing or soldering.

Chemical Composition
Grade Cu P
C12200 99.9% min 0.015-0.040%
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
C12200 Varies depending on temper 205-275 MPa (30-40 ksi) 30% min in 50 mm Varies with temper
Applications
Heat Exchangers

Industrial Boilers: Used in heat exchanger tubes for efficient thermal transfer. Suitable for evaporators and condensers in HVAC systems.

Air Conditioning Units: Maximizes energy efficiency and cooling performance. Essential in condenser and evaporator coils.

Plumbing Systems

Water Supply Systems: Commonly used in residential and commercial plumbing. Offers reliability and corrosion resistance.

Solar Heating Systems: Ideal for solar thermal panels due to high thermal conductivity. Ensures efficient heat absorption and transfer.

Marine Applications

Seawater Piping Systems: Resistant to corrosion in marine environments. Used in desalination plants and shipbuilding.

Industrial Applications

Chemical Processing: Suitable for transporting corrosive fluids at moderate temperatures. Maintains integrity and performance in chemical plants.
