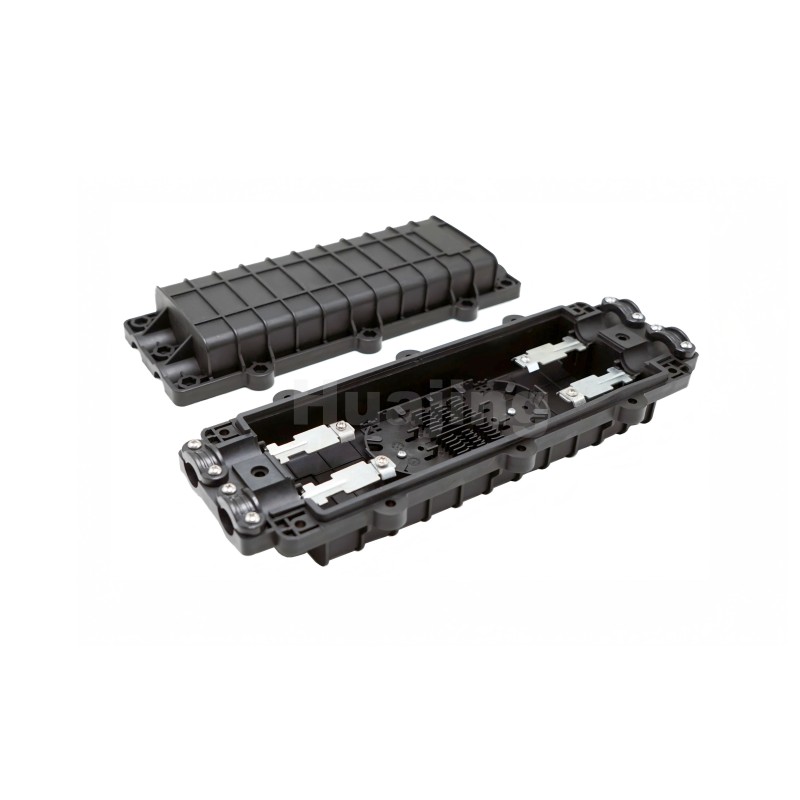

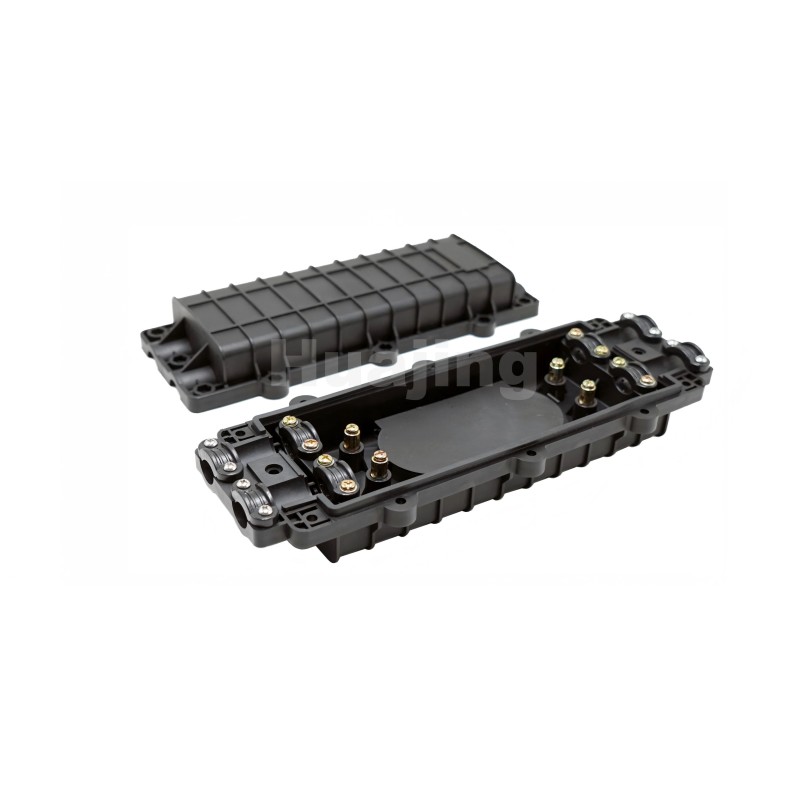

Compact 4 Ports 144 Cores Flexible In Line Optical Fiber Splice Closure Cable Connection IP68
Compact 4 Ports 144 Cores Flexible In Line Optical Fiber Splice Closure Cable Connection IP68
Compact 4 Ports 144 Cores Flexible In Line Optical Fiber Splice Closure Cable Connection IP68
Compact 4 Ports 144 Cores Flexible In Line Optical Fiber Splice Closure Cable Connection IP68
Compact 4 Ports 144 Cores Flexible In Line Optical Fiber Splice Closure Cable Connection IP68
Compact 4 Ports 144 Cores Flexible In Line Optical Fiber Splice Closure Cable Connection IP68
Specifications
Material :
ABS
Model Number :
GJS(04)-3YS
Model. :
GJS(04)-3YS
Brand Name :
Huajing
Weight :
1.25 kg
Price :
8.6-12.5USD/PC
Mountingoptions :
Pole, wall, and underground
Splice capacity :
144 cores
Delivery Time :
1-4weeks
Cable port :
4
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Sealing method :
Silicon rubber
Place of Origin :
China
Dimensions :
350*135*85
MOQ :
100
Description

Application:

The product can be applied in the straight line and branch line connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

  1. The case body is made from high-intensity engineering plastics(ABS).
  2. The case body and cable inlet/outlet are sealed with adhesive rubber strip (non-vulcanized) and belts, which have reliable sealing performance and are easy to reopen, use and maintain.
  3. Unique configuration of different cable loops enables user to flexibly choose according to the outer diameter of optical cable, effectively enhancing the reliability of the cable inlet/outlet seal of the joint box
  4. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  5. The metal components outside the box body are all made of stainless steel, which can meet various environments and be reused.Internal and external secondary optical cable fixing devices make the installation of optical cable more secure and convenient.
  6. Users can choose a metal or plastic cable holder structure.

Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP68

Specification:

Parameter Packing Detail
Model. GJS(04)-3YS Carton Size(mm) 380×320×545/10pcs
Size(mm) 350*135*85 CBM(m³) 0.072
Weight(Kg) 1.25 Grossweight(Kg) 14
Cable in/out 2 in 2 out
Cable diameter Φ10~Φ18
Splice tray capacity＆quantity 24(single core)＆6pcs
Core capacity 144(single core)
Sealing type Silicon rubber
