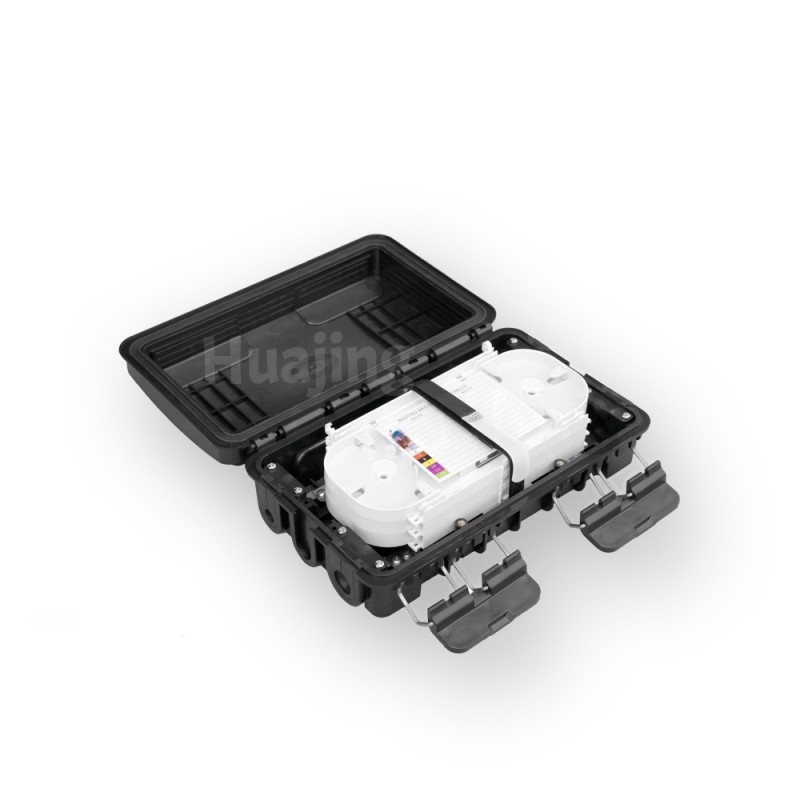

72 Cores Buckled Cover Flexible In Line Fiber Splice Closure Optical Cable Splicing IP65 Protection
72 Cores Buckled Cover Flexible In Line Fiber Splice Closure Optical Cable Splicing IP65 Protection
72 Cores Buckled Cover Flexible In Line Fiber Splice Closure Optical Cable Splicing IP65 Protection
72 Cores Buckled Cover Flexible In Line Fiber Splice Closure Optical Cable Splicing IP65 Protection
Specifications
Splice capacity :
72 cores (single core)
Place of Origin :
China
MOQ :
100
Delivery Time :
1-4weeks
Price :
10.8-17.9
Material :
ABS
Cable diameter :
Φ7~Φ18mm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Mounting options :
Pole, wall, and underground
Weight :
2 kg
Brand Name :
Huajing
Dimension :
290*190*110mm
Model Number :
GJS(06)-C
Description

Application:

This product integrates optical splitting and cable distribution, can achieve direct or branch cable connection. It suits for the cable distribution of the optical communication equipment. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

  1. The product is made of high-quality and impact resistant plastics, and has a standard use interface.
  2. Anti-UV, impact resistant and waterproof .
  3. Buckeld cover, unique and reversible middle plate can be flipped ≥180oC, that provides more distinctive area for fiber splicing and splitting, and the line crossing is reduced.
  4. Cable can access the box with no need of breaking.
    ​

Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP65

Specification:

Parameter Packing Detail
Model. GJS(06)C Carton Size(mm) 430×340×510/8pcs
Size(mm) 290*190*110 CBM(m³) 0.075
Weight(Kg) 2 Grossweight(Kg) 17.6
Cable in/out 2 in / 2 out
Cable diamter (mm) Φ7~Φ18
Splice tray capacity＆quantity 24 (single core)＆3pcs
Core capacity 72 (single core)
Sealing type Silicon rubber

72 Cores Buckled Cover Flexible In Line Fiber Splice Closure Optical Cable Splicing IP65 Protection72 Cores Buckled Cover Flexible In Line Fiber Splice Closure Optical Cable Splicing IP65 Protection
