20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
20 - 1000mm Pvc Belling Machine Plastic Auxiliary Equipment Pipe Customizable
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
ZX - KKJ
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
8000 - 15000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Model :
ZX-KKJ
Power :
According to the model, the total power varies
Usage :
Plastic Pipe Belling
Expansion Shape :
Customizable
Description

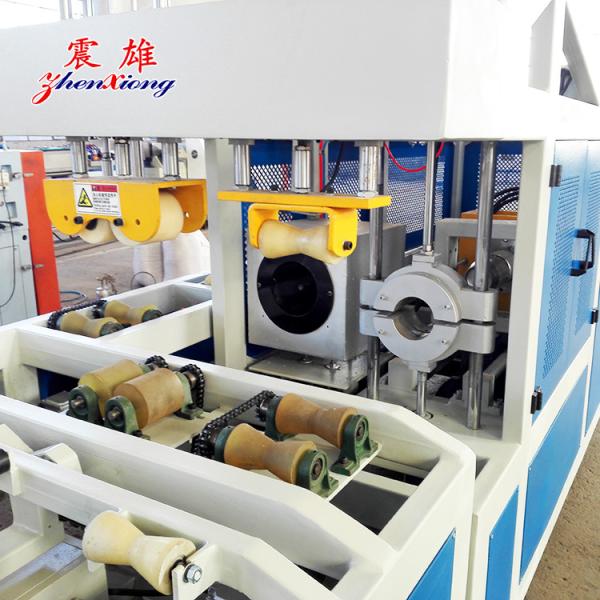

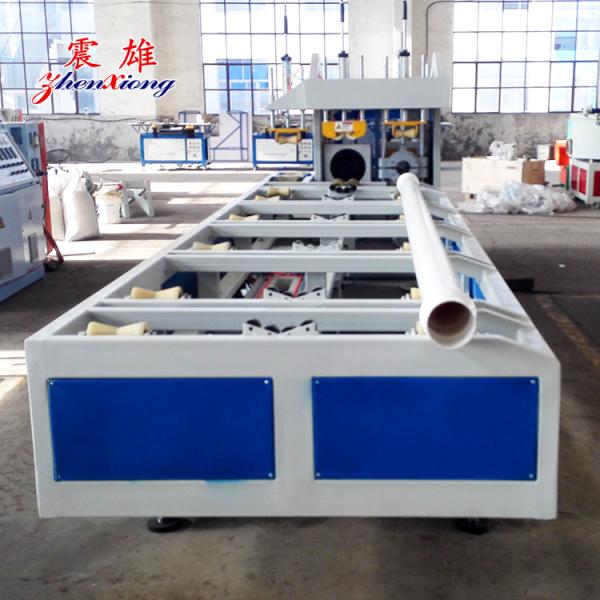

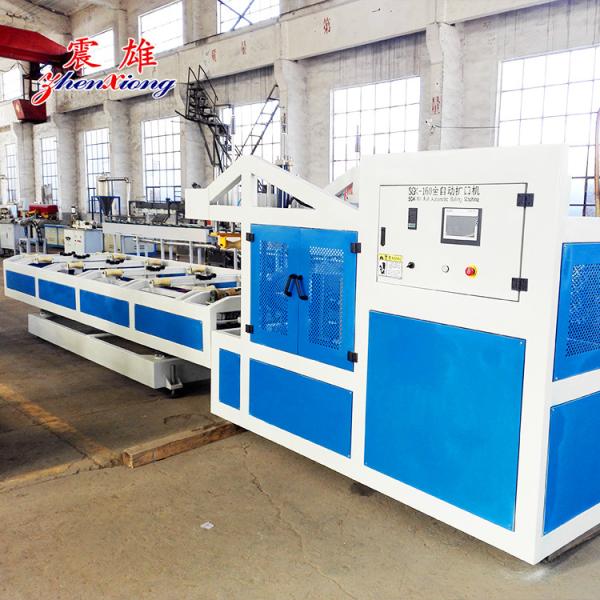

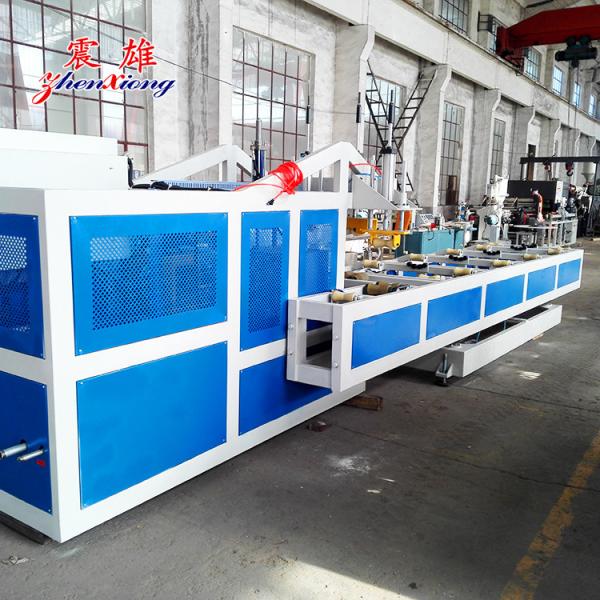

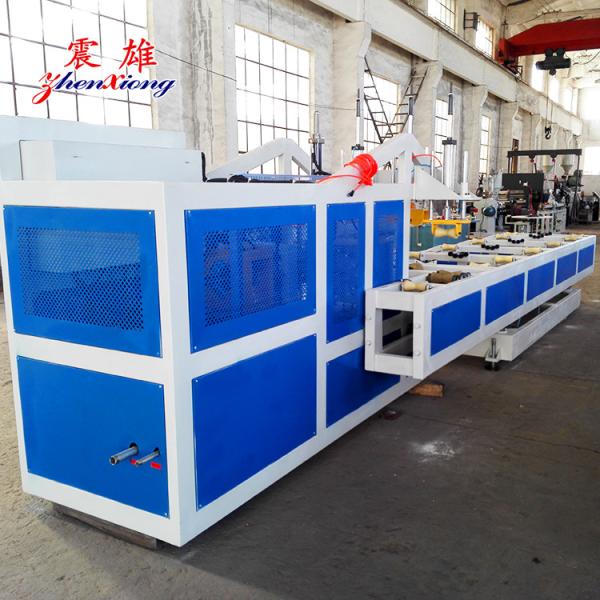

20 - 1000mm Plastic Auxiliary Equipment Pipe Belling Machine Fast Working

The automatic belling machine is equipped with a material receiving and traction device and a corresponding program interface that matches the main machine. It can be used online with the main machine or as a stand-alone machine offline.

Core advantages:

  • The movement of the pipe during the expansion process of the fully automatic expansion machine adopts a translational method, which is stable, accurate, and not easy to damage the pipe.
  • Adopting infrared heating method and dual heating furnace type, the pipe mouth forming size is accurate.
  • The fully automatic expanding machine can design and process various specifications of expanding die heads according to different customer requirements.
  • The expanding range of the automatic expanding machine is 20-1000mm.
  • The automatic expanding machine can be equipped with single-station, double-station, and 4-station expanding mechanisms.
  • The control panel of the automatic expanding machine has a switch for straight and R ports, which makes it very convenient to choose the expansion method and has strong process adaptability.
  • The electrical control switches of the automatic expanding machine are all imported components, and the system performance is stable and reliable.

110

250

450

500

1000

Pipe range

20-110

50-250

160-450

160-500

400-1000

Expansion method

High pressure wind shaping

Vacuum shaping

High pressure wind shaping

Vacuum shaping

Cooling method

Air Cooling

Air Cooling

Water cooling

Air Cooling

Water cooling

Power

2

1

1

2

1

Heating power

4

4

7.2

15.6

25.4

Total power

5.53

10.1

12.1

22

36.2

Fully automatic belling machine application range: Used for plastic pipe belling, etc.
