20 - 1000mm Plastic Auxiliary Equipment Pipe Belling Machine Fast Working

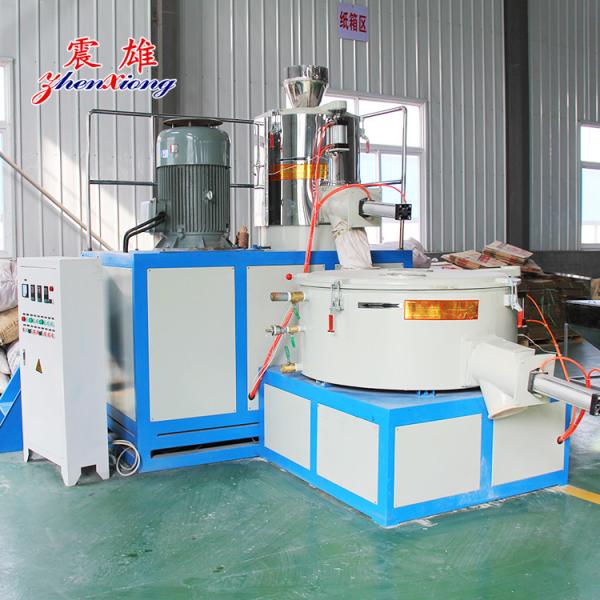

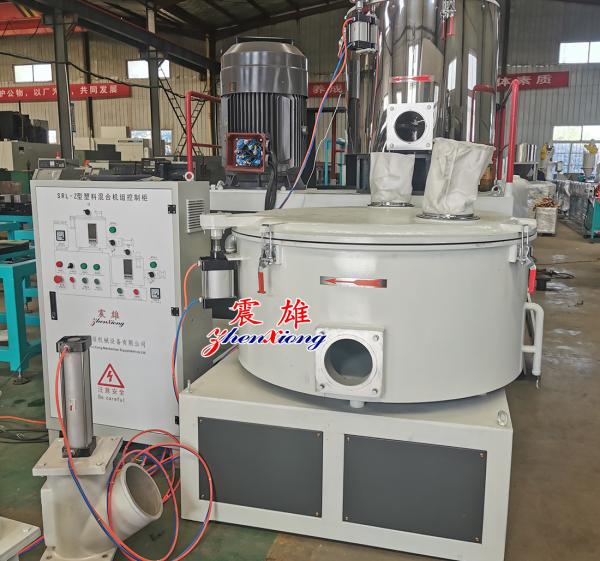

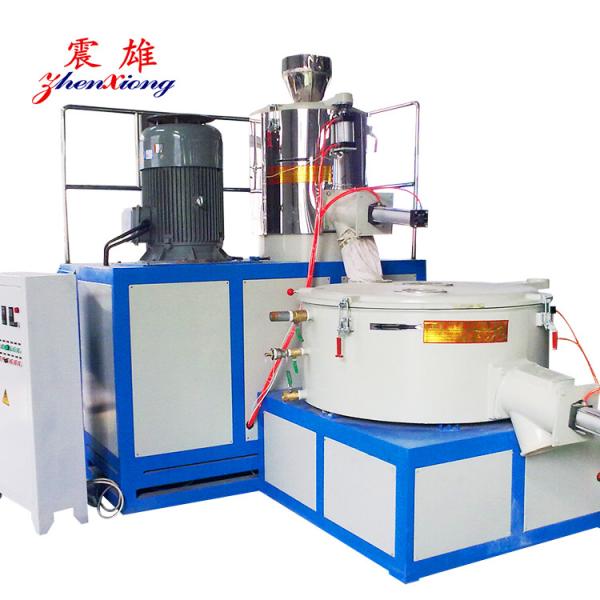

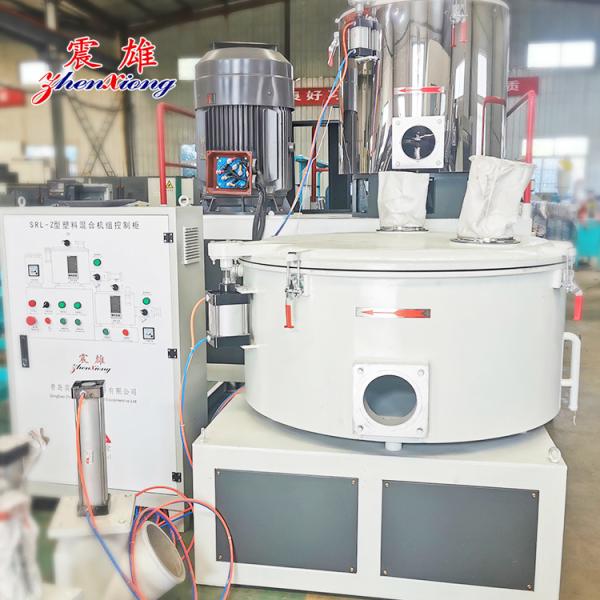

The high-speed cold hot hybrid unit is a popular model developed and manufactured by our company through the introduction of foreign technology. The unit combines a hot mixer and a cold mixer to automatically discharge the hot mixed material into the cold mixer for cooling, eliminating residual gases and preventing material agglomeration.
Core advantages:
●The high-speed cold and hot mixing unit is controlled by a frequency converter or PLC, with a high degree of automation, reducing mixing time, and ensuring uniform material mixing.
●The mixed material adopts the principle of negative pressure mixing, and the mixing effect is good.
●The high-speed cold hot hybrid unit adopts branded electrical instruments and control components, which operate stably and reliably, reducing maintenance costs.
●The blades in the high - speed cold and hot mixing unit are formed via precision stainless - steel pressure casting. After successfully passing static and dynamic balance tests, they ensure that the unit operates smoothly and quietly.
●The cooling machine blade adopts a spiral stirring structure to ensure that the entire container has no dead corners, fast cooling speed, and clean discharge.
●The high-speed hot and cold mixing unit can be customized according to customer requirements and equipped with a feeding and dust removal system.
●The high-speed hot and cold mixing unit has a filtering and dust removal device, which removes dust and speeds up the discharge efficiency of the high-speed mixer.
●The pneumatic discharge method of the high-speed hot and cold mixing unit is fast and has no residue.
SHR500/SHL1000Mixer
| Mainframe | |||
| Hot mixing machine | Cold mixing machine | ||
| Total volume | 500L | 1000L | |
| Valid volume | 350L | 640L | |
| Number of oar | 3 | 1 | |
|
Heating and cooling form |
Heating form: electricity | (1)Cooling form: water (2)Cooling medium pressure: water＞0.1ML (3)Cooling material temperature: 40~60℃ (4)Cooling water temperature: 0~15℃ | |
|
Motor | Model | YD200L-8/4-V1 | Y132M-4 |
| power | 75 KW | 15KW | |
| Rotation speed | 1450 r/m | 130r/m | |
| Mixing time(minute) | 8-10 | 10-15 | |
SHR300/SHL600 Mixer
|
| Mainframe | ||
| Hot mixing machine | Cold mixing machine | ||
| Total volume | 300L | 600L | |
| Valid volume | 200L | 400L | |
| Number of oar | 3 | 1 | |
|
Heating and cooling form |
Heating form: electricity | (1)Cooling form: water (2)Cooling medium pressure: water＞0.1ML (3)Cooling material temperature: 40~60℃ (4)Cooling water temperature: 0~15℃ | |
|
Motor | Model | YD200L-8/4-V1 | Y132M-4 |
| power | 55 KW | 11KW | |
| Mixing time(minute) | 8-10 | 10-15 | |
Application scope of high-speed hot and cold mixing unit:
High-speed hot and cold mixing unit is used for mixing, stirring, coloring and other processes of materials in industries such as plastics, rubber, and daily chemicals. It is an ideal equipment for producing plastic sheets, pipes, special-shaped materials and degradable plastics.
