2.2kw PA PERT Chipless Cutting Machine Plastic Auxiliary Equipment
2.2kw PA PERT Chipless Cutting Machine Plastic Auxiliary Equipment
2.2kw PA PERT Chipless Cutting Machine Plastic Auxiliary Equipment
2.2kw PA PERT Chipless Cutting Machine Plastic Auxiliary Equipment
2.2kw PA PERT Chipless Cutting Machine Plastic Auxiliary Equipment
2.2kw PA PERT Chipless Cutting Machine Plastic Auxiliary Equipment
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
QGJ
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
2000 - 6000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Color :
Customizable
Power Source :
Electric
Cutting range :
20 - 800 mm
Total Power :
2.2kw
Cutting Method :
Chipless
Plastic Processed :
PE PP PPR PERT PA PVC
Description

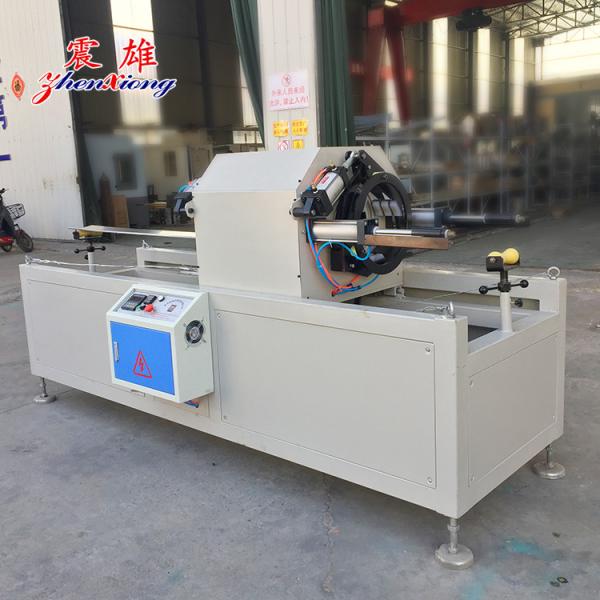

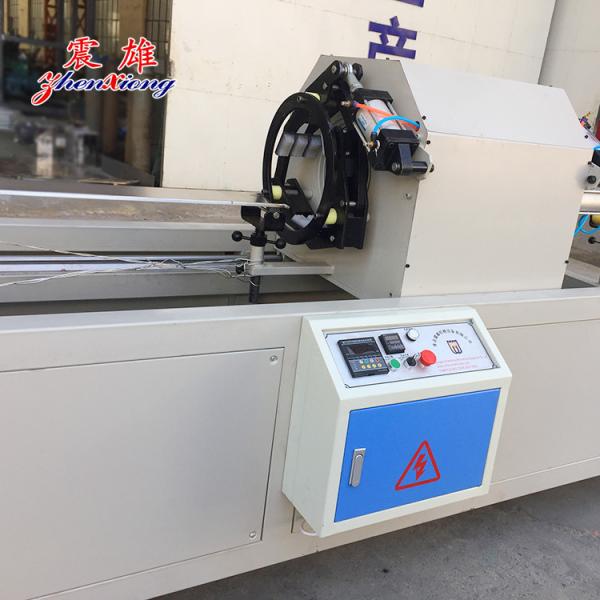

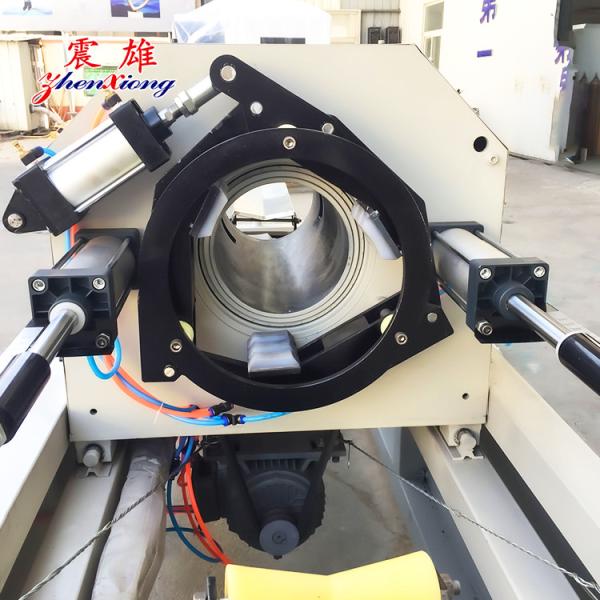

Chipless Cutting Machine Plastic Auxiliary Equipment Minimal Material Waste Easy Operation

This series of chipless cutting machines are suitable for chipless and dust-free cutting of various plastic pipes such as PE, PP, PPR, PERT, PA, PVC, etc. The pipe end faces are flat and smooth, without burrs, and the cutting noise is low, which can meet the requirements of high-speed cutting.

Core advantages:

  • The cutting diameter of the chipless cutting machine is adjustable, and one machine can be used for multiple purposes.
  • The chipless cutting machine adopts Siemens PLC control system, with high control accuracy and automatic cutting of fixed length.
  • The electromechanical components of the chipless cutting machine use brands such as Siemens and Schneider, with reliable performance and long service life.
  • The blade of the chipless cutting machine is made of high-speed alloy steel, which is strong and not easy to break, reducing maintenance and replacement costs.
  • The chipless cutting machine is installed between the traction machine and the turning rack, with a simple structure, convenient operation and beautiful appearance.
  • The cutting machine table of the chipless cutting machine adopts a servo synchronous follow-up system, which is easy to adjust and easy to operate, ensuring high-speed synchronization with the traction machine.
  • The chipless cutting machine does not produce sawdust during the cutting process, eliminating the trouble of cleaning.

Model number

63

160

250

630

800

Cutting range

20-63

63-160

50-250

250-630

250-800

Maximum thickness

12

30

30

5

5

Maximum cutting frequency

4/6

4

4

2

2

Saw table moving speed

15/30

10

7

2

1

Center height

1000

1000

1000

1150

1300

Power

1.5

1,5

2.2

3

3

Remark

Solid wall tube

Solid wall tube

Solid wall tube

Solid wall tube

Solid wall tube

Application range of chipless cutting machine:

Suitable for online cutting of various pipes such as PPR, PE, PP, PVC, hot and cold water pipes, gas pipes, silicon core pipes, etc.
