Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Customizable Plastic Auxiliary Equipment Low Noise Chipless Cutting Machine
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
QGJ
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
2000 - 6000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Equipment model :
63 / 160 / 250 / 630 / 800
Cutting range :
According to model
Color :
customizable
Feature 1 :
Eliminating the trouble of cleaning.
Description

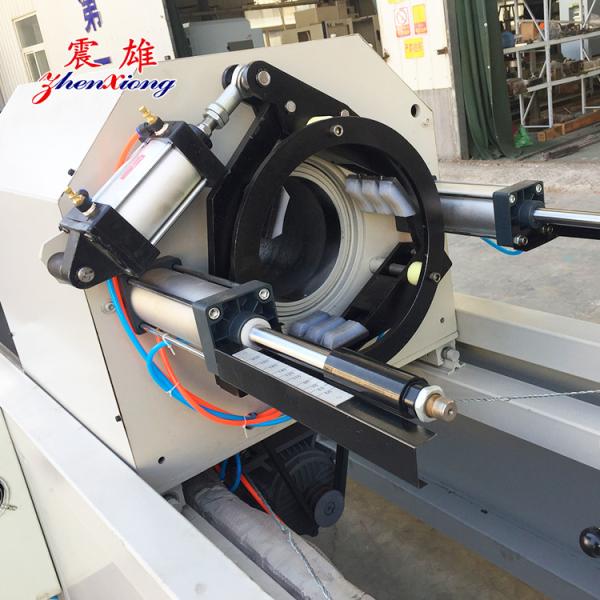

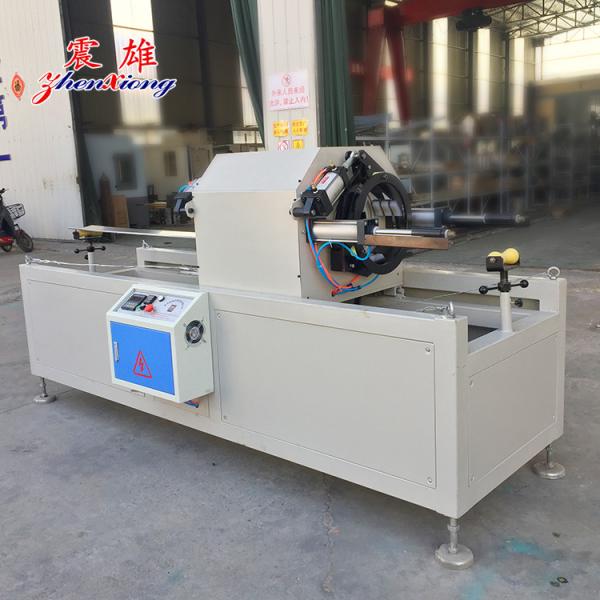

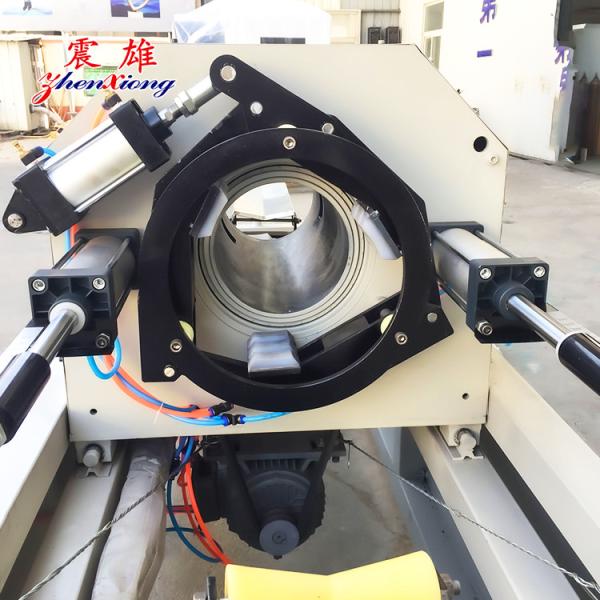

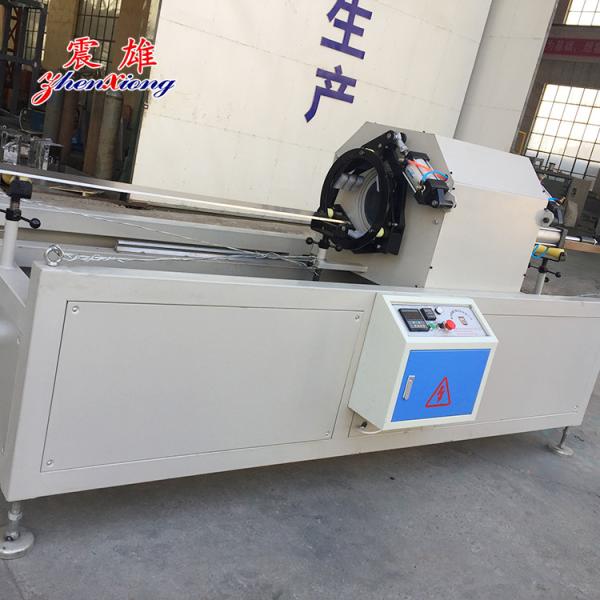

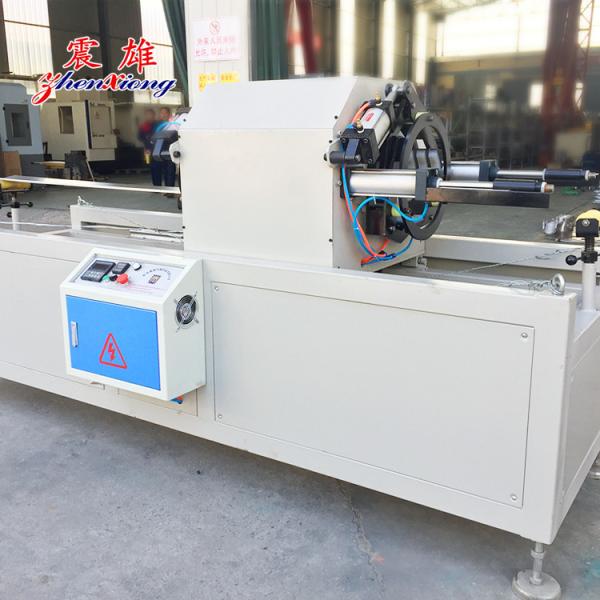

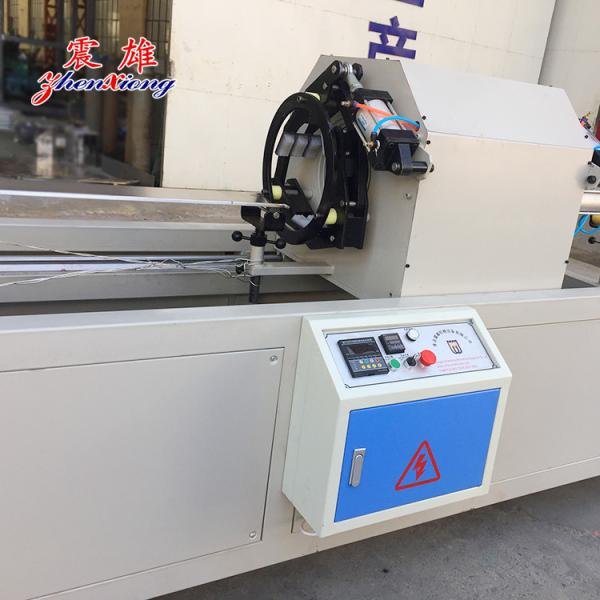

Energy Conservation Plastic Auxiliary Equipment Chipless Cutting Machine Low Noise

This series of chip free cutting machines is suitable for cutting various types of plastic pipes such as PE, PP, PPR, PERT, PA, PVC, etc. without chips or dust. The end face of the pipe is flat and smooth, without burrs, and the cutting noise is low, which can meet the requirements of high-speed cutting.

Core advantages:

  • The cutting diameter can be adjusted, making it versatile for one machine.
  • The chip free cutting machine adopts Siemens PLC control system, which has high control accuracy and achieves automatic cutting of fixed length.
  • This chip free cutting electromechanical device uses brands such as Siemens and Schneider, with reliable performance and long service life.
  • The blade of the chipless cutting machine is made of high-speed alloy steel, which is strong and not easy to break, reducing maintenance and replacement costs.
  • The chipless cutting machine is installed between the traction machine and the turning rack, with a simple structure, convenient operation and beautiful appearance.
  • The cutting machine table of the chipless cutting machine adopts a servo synchronous follow-up system, which is easy to adjust and easy to operate, ensuring high-speed synchronization with the traction machine.
  • The chipless cutting machine does not produce sawdust during the cutting process, eliminating the trouble of cleaning.

Model number

63

160

250

630

800

Cutting range

20-63

63-160

50-250

250-630

250-800

Maximum thickness

12

30

30

5

5

Maximum cutting frequency

4/6

4

4

2

2

Saw table moving speed

15/30

10

7

2

1

Center height

1000

1000

1000

1150

1300

Power

1.5

1,5

2.2

3

3

Remark

Solid wall tube

Solid wall tube

Solid wall tube

Solid wall tube

Solid wall tube

Application range of chipless cutting machine:

Suitable for online cutting of various pipes such as PPR, PE, PP, PVC, hot and cold water pipes, gas pipes, silicon core pipes, etc.
