Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
ZX-QYJ
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
3000 - 15000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Model :
SJQ630 / 6
Traction range/mm :
∅ 250 - ∅ 630
Traction speed m/min :
0.06 - 1.2
Contact length mm :
1600
Traction N :
30000
Note :
Different models and configurations are available for customization
Description
Multi Specification Track Tractor Plastic Auxiliary Equipment Variable Frequency Speed Control

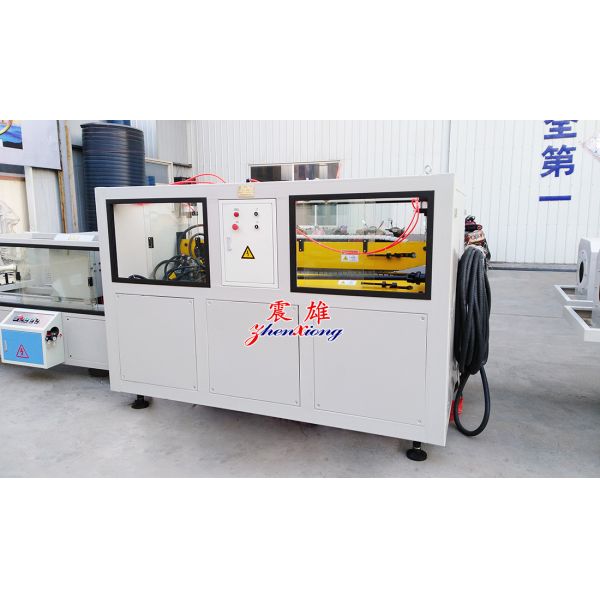

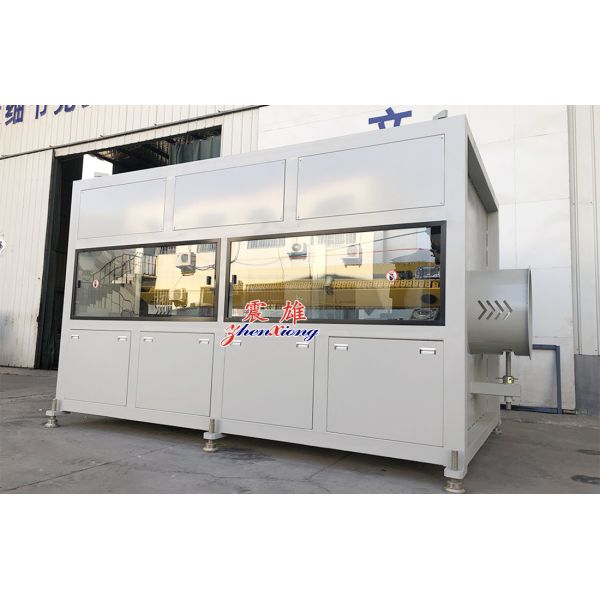

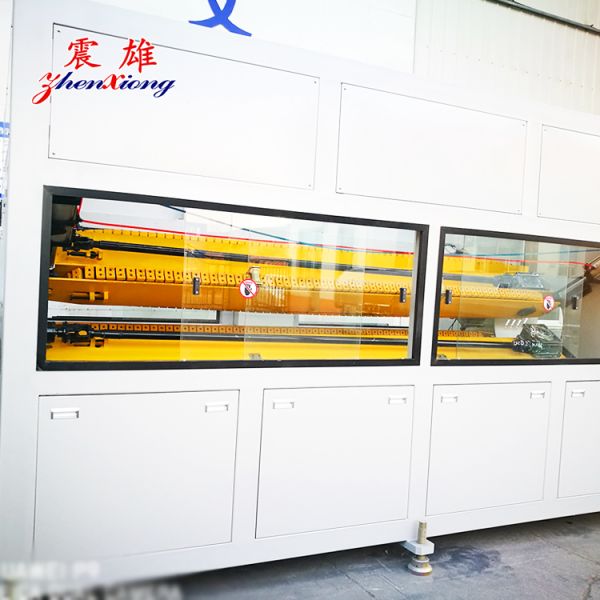

This equipment is a crawler-type haul-off machine, primarily paired with plastic extruders, using a chain haul-off method. It offers wide applicability, capable of hauling the vast majority of pipe products, with strong adaptability to complex working conditions.
Model Specifications
Model SJQ125/3 SJQ250/4 SJQ450/4 SJQ630/6 SJQ800/6
Traction Range (mm) ∅32-∅125 ∅63-∅250 ∅110-∅450 ∅250-∅630 ∅315-∅800
Track Quantity 2 3 4 6 6
Contact Length (mm) 1200 1400 1600 1600 2000
Traction (N) 7500 10000 20000 30000 40000
Traction Speed (m/min) 0.6-12 0.4-8 0.1-1.5 0.06-1.2 0.05-1
Advantage Highlights:
Comprehensive haul-off mechanism specifications (from two-claw to ten-claw) with large speed ratios, capable of matching different pipe sizes and production speeds.
Utilizes frequency conversion speed regulation, possessing a broad speed adjustment range and stable speed output.
Supports pneumatic clamping and worm gear clamping, ensuring pipes are firmly gripped without deformation.
Motor power 2.2-22KW, providing sufficient power for stable and reliable haul-off operation.
The crawler employs a self-tensioning flexible structure, ensuring continuous close contact between the chain and track.
The track is selected from special high molecular material, enhancing haul-off speed stability.
Large contact area with the pipe, adjustable pressure, achieving constant haul-off force and effectively preventing slipping.

Application Scope:
Applicable for hauling extruded plastic pipes, hoses, and various plastic profiles, also suitable for haul-off processing of other soft and hard plastic pipes.
