Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Eight Jaw Track Tractor Plastic Auxiliary Equipment with Wide Speed Range and Uniform Stable Speed
Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
ZX-QYJ
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
3000 - 15000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Model :
SJQ125 / 3
Traction range/mm :
∅ 32 - ∅ 125
Traction speed m/min :
0.6 - 12
Contact length mm :
1200
Traction N :
7500
Note :
Different models and configurations are available for customization
Description
Eight Jaw Track Tractor Plastic Auxiliary Equipment Wide Speed Range Niform And Stable Speed

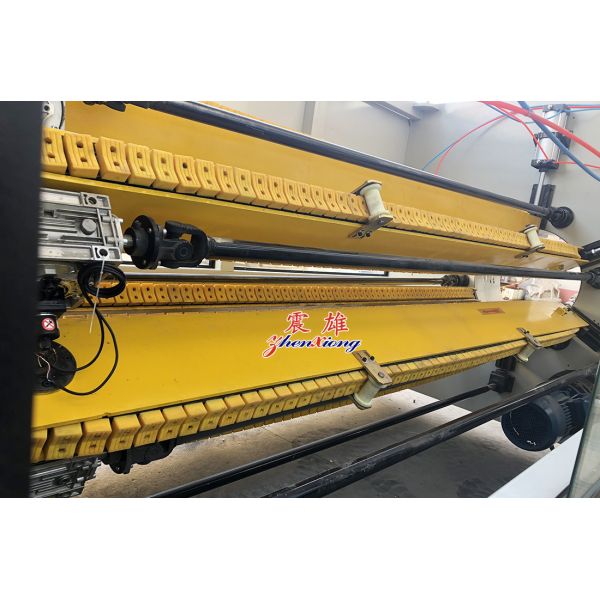

Our crawler-type haul-off machine is primarily designed to match with plastic extruders, employing a chain-type haul-off method. It offers wide applicability, capable of hauling most pipe products, and can adapt to more complex working environments.
Model Specifications
Model SJQ125/3 SJQ250/4 SJQ450/4 SJQ630/6 SJQ800/6
Traction range/mm ∅32-∅125 ∅63-∅250 ∅110-∅450 ∅250-∅630 ∅315-∅800
Track quantity 2 3 4 6 6
Contact length mm 1200 1400 1600 1600 2000
Traction N 7500 10000 20000 30000 40000
Traction speed m/min 0.6-12 0.4-8 0.1-1.5 0.06-1.2 0.05-1
Core Advantages:
Provides multi-specification haul-off mechanisms with two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, and other configurations, featuring large speed ratios to adapt to different size and speed requirements of pipe extrusion production lines.
Utilizes frequency conversion speed regulation, offering a wide speed adjustment range with uniform and stable operation.
Employs pneumatic or worm gear haul-off methods to securely clamp pipe products, preventing deformation.
Motor power ranges from 2.2-22KW, delivering high power and friction for stable pipe haul-off operation.
The crawler features a flexible self-tensioning structure, ensuring the chain closely fits the track.
The track is made from special high molecular material, guaranteeing haul-off speed stability.
Large contact area with the pipe, adjustable clamping pressure, constant haul-off force, and resistance to slipping.

Application Scope:
Suitable for hauling extruded plastic pipes, hoses, and various other plastic profiles, as well as other soft or hard plastic pipes.
