Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
ZX - KKJ
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
8000 - 15000 USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Cooling :
Air / Water Cooling
Speed :
Match with the production line
Processed Pipe :
PVC PE PPR pipe
Belling Range :
20 - 1000mm
Expansion mechanism :
Optional single station, dual station, and 4-station expansion mechanisms
Expansion method :
straight mouth and R mouth
model :
1000
production scope :
400 - 1000
Cooling method :
Water cooling
Description
Automatic Pipe Belling Machine Plastic Auxiliary Equipment Used Online Or Offline Standalone
Product Overview
The fully automatic expansion machine is an efficient device suitable for multiple scenarios, equipped with material receiving and traction matching and program interfaces, enabling collaborative or independent operation with the host.
Core Advantages

Smooth and accurate pipe translation operation, maximizing the protection of the pipe body;
Infrared dual furnace heating technology ensures consistent expansion size;
Customization of different specifications of expansion molds according to user requirements;
Expansion diameter 20-1000mm, supporting multi station selection;
The control panel is easy to switch between straight port and R port modes, with strong adaptability;
The electrical system adopts imported components, which operate stably and have low faults.

Technical Specifications
Pipe Range (mm) Expansion Method Cooling Method Power (kW) Heating Power (kW) Total Power (kW)
20-110 High Pressure Wind Shaping Air Cooling 2 4 5.53
50-250 Vacuum Shaping Air Cooling 1 4 10.1
160-450 High Pressure Wind Shaping Water Cooling 1 7.2 12.1
160-500 Vacuum Shaping Air Cooling 2 15.6 22
400-1000 Vacuum Shaping Water Cooling 1 25.4 36.2
Application Range
This equipment is mainly used for the expansion molding of various plastic pipes.
Automatic Pipe Belling Machine with 20-1000mm Expansion Range Infrared Dual Heating Furnace and Customizable Expansion Die Heads

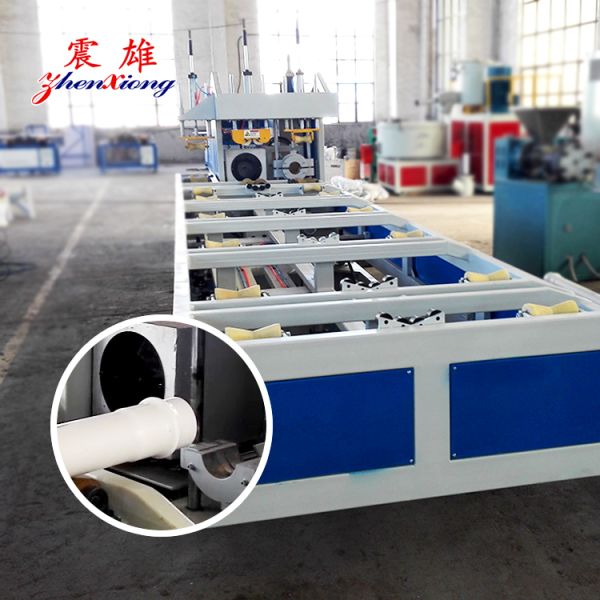

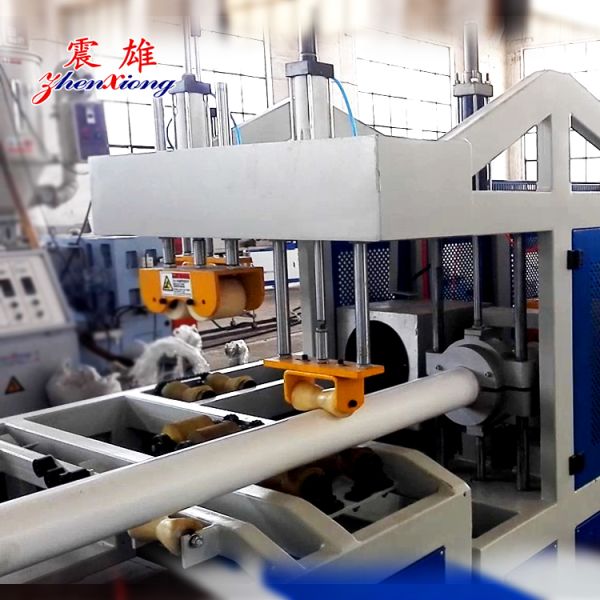

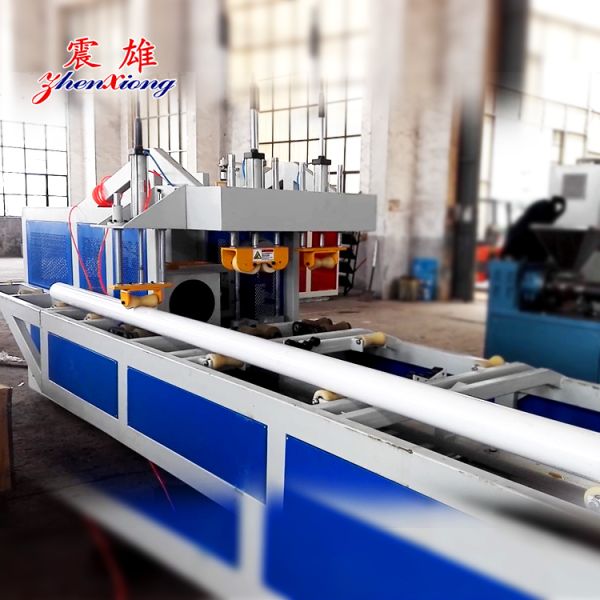

Operational view of plastic pipe expansion machine during pipe processing
Automatic Pipe Belling Machine with 20-1000mm Expansion Range Infrared Dual Heating Furnace and Customizable Expansion Die Heads

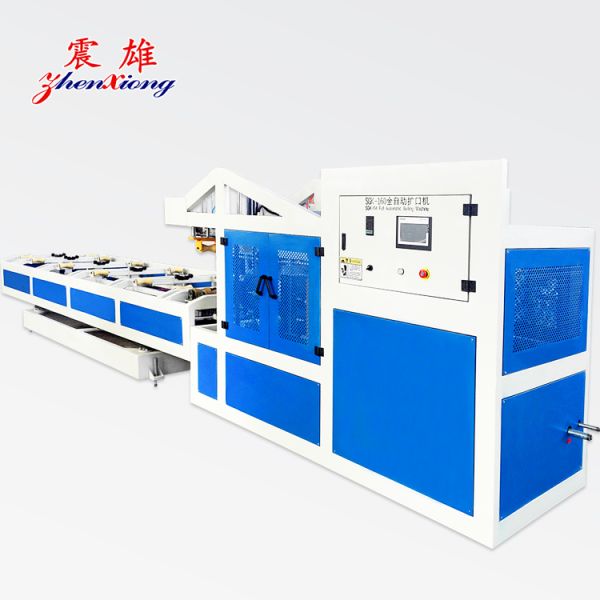

Detailed view of machine components and control interface
