Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-AF13 40KW
Certification :
CE FCC RHos
Place of Origin :
Sichuan, China
MOQ :
1
Price :
USD4848~4545/Unit
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
820*405*1860mm
Interface Standard: :
GB/T 20234.2-2015
Output Current: :
67-70A
Output Power: :
40KW
Input Voltage: :
AC380V±20%
OCPP :
1.6
Input voltage: :
AC 380V±20%
Output voltage :
200-750V
Cable length :
5M(Customizable)
Warranty :
2 Years
Measurement accuracy: :
Level 0.5
Current limit protection value :
≥110%
Car Fitment :
TESLA M., Tesla
Description

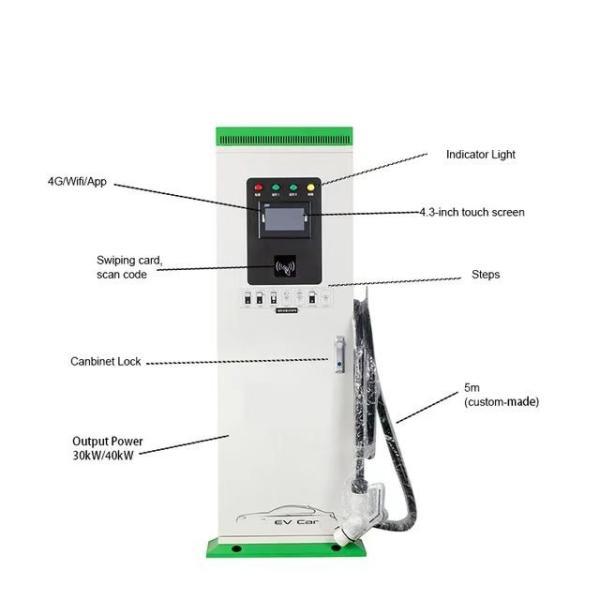

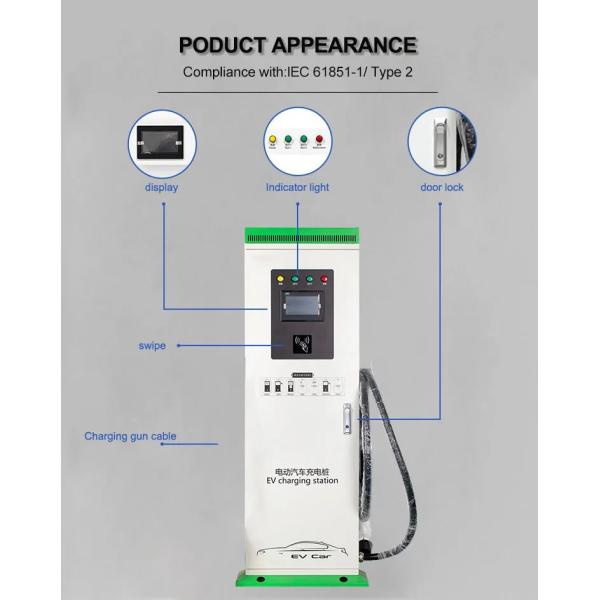

Floor-Mounted Charging Stations Fast Electric Car Ev Charger 40kw With CCS1 CCS2 Double Guns Cable

Products Complies With CCS2/CCS1 Standard
Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating).
Humanized design with a good grasp feel, easy to use. Various accessories available, protection cap include damping cap, metal string cap,etc.
The plug and socket termination type is wire crimping.
Degree of protection: IP54
Excellent protection performance, protection grade IP54, it can keep EV
connector working even if use in a rainy day-working condition.
We provide our customers with complete EVSE for electric vehicles.The mainproducts are Ac EV charger, Dc EV charger, EV charging stack, EV Chargingguns.We are also able to provide OEM and oDM services to our customers.
Product spectification
Model ES-AF-13-1 ES-AF-13-2
Detailed specifications rated power 30kW 40kW
Charging equipment Installation method Vertical
Wiring method Go down
Input voltage AC380V±20%
Input frequency 45-65Hz
The output voltage 200-750VDC
Single gun output current range 200V-500V 200V-750V 200V-750VConstant power
0-120A 0-80A 0-150A
Cable length 5m
Measurement accuracy 1.0 level
Electrical indicators Current limit protection value ≥110%
Stabilization accuracy ≤±0.5%
Steady flow accuracy ≤±1%
Ripple factor ≤±0.5%
effectiveness ≥94.5%
Power factor ≥0.99 (above 50% load)
Harmonic content THD ≤5% (above 50% load)
Feature design HMI 7-inch bright color touch screen
Charging mode Automatic full charge / fixed power / fixed amount / fixed time
charging method Charging by swiping/charging by scanning code/charging by password
payment method Credit card payment/scan code payment/password charging
Networking method Ethernet/4G
Safe design Executive standard IEC 61851-1:2017,ICE 62196-2:2016,SAE J1772
security function Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators Operating temperature -25℃~+50℃
Working humidity 5%~95% non-condensing frost
Working altitude <2000m
Protection level IP54
cooling method Air-cooled
Noise control ≤60dB
MTBF 100,000hours
Dimensions Product Dimensions 790*300*1670mm 790*300*1670mm
Package Dimension 820*405*1860mm 820*405*1860mm
Net Weight 90Kg
92KG		 92KG
Gross Weight 95Kg
97KG		 97KG

Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable
Floor Mounted Fast Ev Charger 40kw With CCS1 CCS2 Double Guns Cable

Company Profile

We deploy infrastructure that meets the needs of the next generation of smarter mobility andprovides a full range series of AC and DC charging stations that support European IECstandards, American SAE standards, and Chinese national standards. What's more, you cancustomize the products from the appearance to the operating network(OCPP1.6) in the fieldof EV charging, and make them feasible for commercial, residential and fleet operators, etc.Not only hardware is our advantage but also the full solution. We are promoting to combinatethe PV and storage battery and EV charging and advocate people to save more energy.
Whether you are looking for a car or heavy-duty vehicle charger, we can provide the rightsolution for your needs. We look forward to bringing our strengths, experience and electricaexpertise to your EV charging projectOur mission is to provide green, low-carbon andenergy-saving products.“To build a green & harmonious world, and realize own self-worth"is Energy Splendor's good vision.

Customer Service

1.We can provide customers with professional product advice and purchase options.

2. All emails will be responded within 24 hours during working days.

3. All customers will get one-on-one service.

Delivery Time

1.Samples or test orders can be delivered within 2-5 working days.

2.Orders in standard products above 100pcs could be delivered within 7-15 working days.

3.Orders that require customization could be produced within 20-30 working days.

Customized Service OEM&ODM

1.We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.

2.OEM includes color, length, logo, packaging, etc.

3.ODM includes product appearance design, function setting, new product development, etc.

4.MOQ is depend on different customized requests.

After Sale Service

1.The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.

2.However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory.
