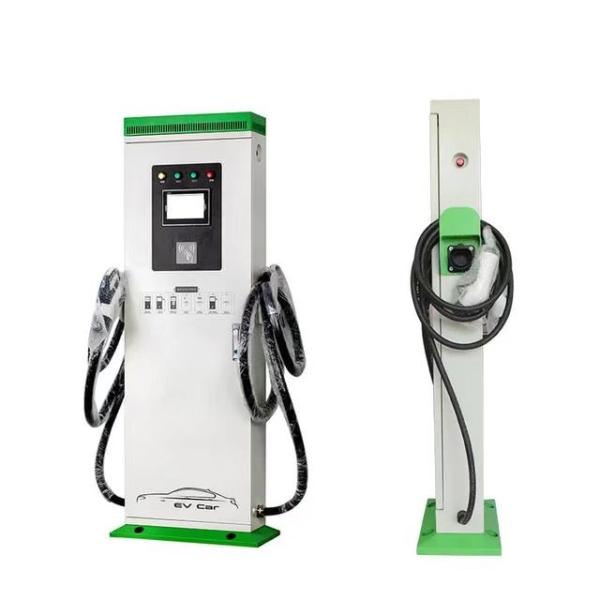

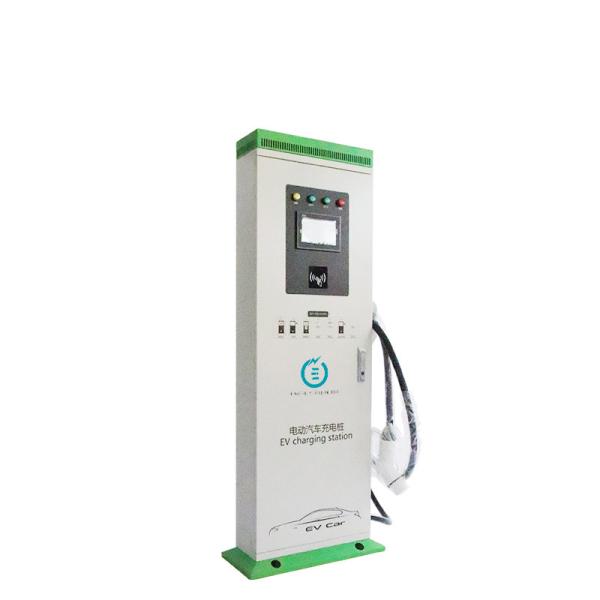

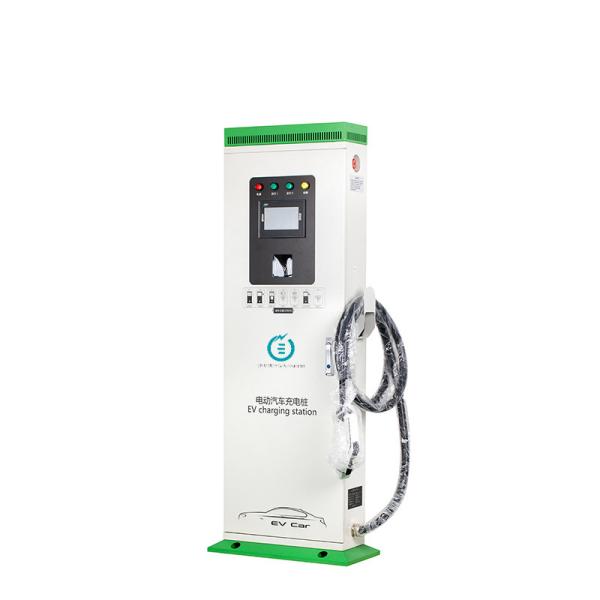

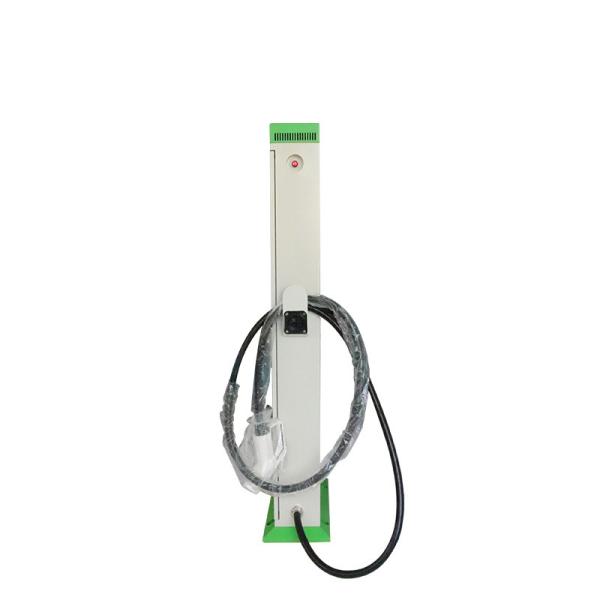

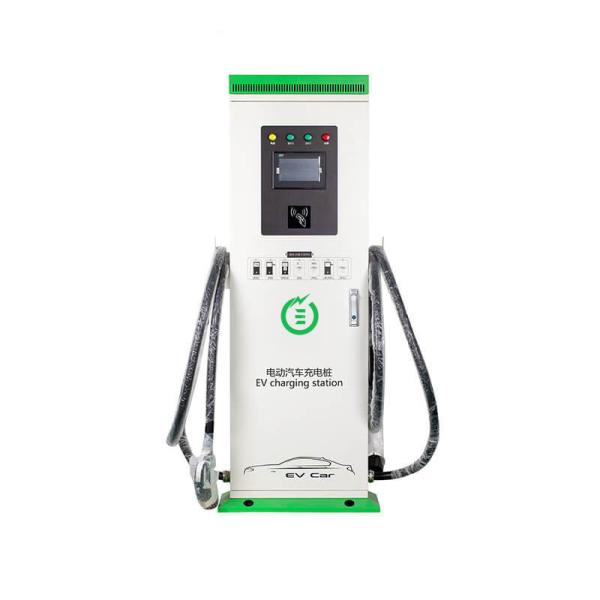

Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector
Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector
Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector
Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector
Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector
Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector
Specifications
Brand Name :
EnergySplendor
Model Number :
ES-AF13
Certification :
CE FCC RHos
Place of Origin :
Sichuan China
MOQ :
1/Units
Price :
USD4000~3757/Units
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000/Mon
Packaging Details :
820*405*1860mm
Product name :
40 DC Fast EV Charging Station
rated power :
30kw 40kw
Input voltage :
AC380V±20%
The output voltage :
200-750VDC
Cable length :
5m
HMI :
7-inch bright color touch screen
Networking method :
Ethernet/4G
Operating temperature :
-25℃~+50℃
Protection level :
IP54
Warranty :
2Years
Description

Floor Mounted Enpower Controller Software Super Fast DC EV Charger 30kw 40kw With CCS1 CCS2 Connector

Products complies with CCS2/CCS1 standard
Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating).
Humanized design with a good grasp feel, easy to use.
Various accessories available, protection cap include damping cap, metal string cap,etc.
The plug and socket termination type is wire crimping.
Degree of protection: IP54
Excellent protection performance, protection grade IP54, it can keep EV
connector working even if use in a rainy day-working condition

Model ES-AF-13-1 ES-AF-13-2
Detailed specifications rated power 30kW 40kW
Charging equipment Installation method Vertical
Wiring method Go down
Input voltage AC380V±20%
Input frequency 45-65Hz
The output voltage 200-750VDC
Single gun output current range 200V-500V 200V-750V 200V-750VConstant power
0-120A 0-80A 0-150A
Cable length 5m
Measurement accuracy 1.0 level
Electrical indicators Current limit protection value ≥110%
Stabilization accuracy ≤±0.5%
Steady flow accuracy ≤±1%
Ripple factor ≤±0.5%
effectiveness ≥94.5%
Power factor ≥0.99 (above 50% load)
Harmonic content THD ≤5% (above 50% load)

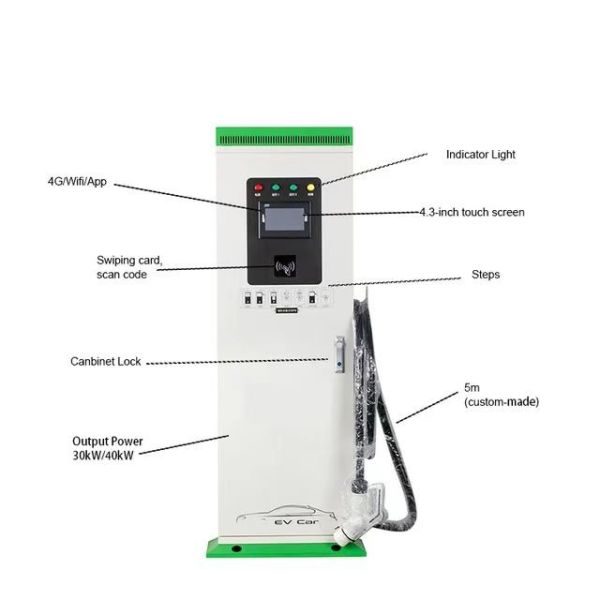

Feature design HMI 7-inch bright color touch screen
Charging mode Automatic full charge / fixed power / fixed amount / fixed time
charging method Charging by swiping/charging by scanning code/charging by password
payment method Credit card payment/scan code payment/password charging
Networking method Ethernet/4G
Safe design Executive standard IEC 61851-1:2017,ICE 62196-2:2016,SAE J1772
security function Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators Operating temperature -25℃~+50℃
Working humidity 5%~95% non-condensing frost
Working altitude <2000m
Protection level IP54
cooling method Air-cooled
Noise control ≤60dB
MTBF 100,000hours
Dimensions Product Dimensions 790*300*1670mm 790*300*1670mm
Package Dimension 820*405*1860mm 820*405*1860mm
Net Weight 90Kg
92KG		 92KG
Gross Weight 95Kg
97KG		 97KG

Floor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 ConnectorFloor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 ConnectorFloor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 ConnectorFloor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 ConnectorFloor Enpower Controller Software DC EV Charger 30kw 40kw With CCS1 CCS2 Connector

COMPANY PROFILE
We deploy infrastructure that meets the needs of the next generation of smarter mobility andprovides a full range series of AC and DC charging stations that support European IECstandards, American SAE standards, and Chinese national standards. What's more, you cancustomize the products from the appearance to the operating network(OCPP1.6) in the fieldof EV charging, and make them feasible for commercial, residential and fleet operators, etc.Not only hardware is our advantage but also the full solution. We are promoting to combinatethe PV and storage battery and EV charging and advocate people to save more energy.
Whether you are looking for a car or heavy-duty vehicle charger, we can provide the rightsolution for your needs. We look forward to bringing our strengths, experience and electricaexpertise to your EV charging project.Our mission is to provide green, low-carbon andenergy-saving products.“To build a green & harmonious world, and realize own self-worth'is Energy Splendor's good vision.
Energy Splendor is a reliable provider of green-energyinfrastructure in Green-energy business that helps reducecarbon emissions, improve roadside air quality and support theworld's development into a low-carbon and smart earth andhelps businesses deploy salable and convenient fast EVcharging solutions.
