Specifications
Brand Name :
Energy Splendor
Model Number :
ES-DC-30kW
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
10000USD-18000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
7-14Days
Packaging Details :
box
Input Voltage :
90-265V/260-475V
AC Input Connection :
L2+L3+PE (NEMA,JPS),L+N+PE/3P + N +PE, Wye connection
Max. Input Current :
32A
Frequency :
50 /60 Hz
Power Factor :
>0.99@full load
Efficiency :
0.95
Max. Output Power :
30KW
Interface :
Touchable screen
Description

charging electric cars OCPP1.6 30kW DC EV Charger Wall-Mounted Adjustable Current Carbon Emission Reduction

Product Description:

High efficiency 30kw 50A EV charging station DC ocpp1.6 commercial DC wallbox 30kw ccs2 ev charger app control.

Friendly interface:7-inch screen LCD and ring LED offer good user display requirements for charging.It is touchable.

Fast and safety:30kW CCS type 2 plug, more efficient charging. IP54 protection for outdoor installation.

Simple control: It is easy to control on and off through the bluetooth function of mobilephone APP and RFID function.

Wide application: Compliant with OCPP1.6 and above enables it to connect to the global EV charge management platform without additional integration and matching.

Supports APP control:

Remote control by APP

Charging history record

Charging time setting

Firmware update

Carbon emission reduction

The user can control the wallbox to start and stop, other operations on the mobile phone through the APP to view the current charging status and historical charging e-cords

OVERVIEW:

This charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup

charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicle at maximum speed as well as many EV cars. take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up you or your customers charging.

FEATURES:

♦ Features Small size and light weight.

♦ 4.3-inch touchscreen display.

♦ Scan or swipe the card to charge.

♦ Support remote charging monitoring and control of mobile phones.

♦ IP54 protection level.

♦ Fashion and high-end modeling.

Note:All product outward appearance, the color take the material object as, the picture only supply the reference

SPECIFICATION:

Model DC7KW DC15KW DC20KW DC30KW
AC Input Input Voltage 90-265V 260-475V 260-475V 260-475V
AC Input Connection L2+L3+PE (NEMA,JPS),L+N+PE 3P + N +PE, Wye connection
Max. Input Current 32A 30A 40A 50A
Frequency 50 /60 Hz
Power Factor >0.99@full load
Efficiency 0.95
DC Output Output Voltage 200-750V
Max. Output Power 7KW 15KW 20KW 30KW
Max. Output Current 20A 38A 60A 100A
User Interface Emergency stop YES
Interface Touchable screen
Packing Dimension(mm) 548 × 378× 160 642×454×178
Weight 20KG 40KW 40KG 50KG
Environment al Operating Temperature -40~85℃,25℃(TYPE)
Humidity 5%-90% RH, non-condensing
Altitude 2000m
IP Level IP54
Mechanical Cable Length Charger gun :5M (CHAdeMO) , 5M (CCS),
5M(GB/T) Customized acceptable
Regulation Regulation EN61851-1
Certification CE , ROHS
Charging protocol CHAdeMO 2.0 / DIN 70121/ISO15118/IEC6185l-23,
IEC6185l-24, GB/T 27930

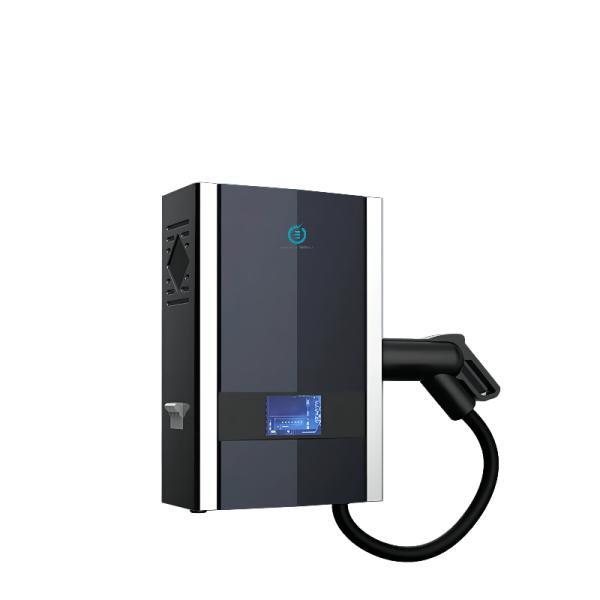

NEMA JPS DC Electric Car Charging Wall Box OCPP 1.6 30kW

NEMA JPS DC Electric Car Charging Wall Box OCPP 1.6 30kW
