Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-AF-18
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per month
Delivery Time :
15-25days
Packaging Details :
Carton or Wooden box
Product :
180kW DC EV Charger
Output Current :
AC380V ±20%
OCPP :
OCPP1.6j
Operating temperature :
-30℃~50℃
nterface Standard :
IEC 61851-1:2017,ICE 62196-2:2016
Protection degree :
IP54
Cable length :
5m (Customized acceptable)
Maximum Output :
180kW
Output Voltage :
200-1000Vdc
Warranty :
2 years
Description

Mode 3 AF-18 Electric Car Charging 180kW EV Charger CCS2 GB/T Fast DC Charging Station For Electric Vehicle CHAdeMo

The Mode 4 AF-18 Electric Car Charging 180kW EV Charger CCS2 GB/T Fast DC Charging Station is a cutting-edge electric vehicle charging solution designed for efficient and reliable charging of electric vehicles. The charging station is equipped with CCS2 and GB/T fast charging protocols, which are standardized protocols used by most European and Chinese automakers, making it compatible with a wide range of electric vehicles.

The charging station can deliver a maximum power output of 180kW, which allows for ultra-fast charging of electric vehicles and reduces charging times significantly compared to standard charging options. This makes it an ideal solution for high-traffic areas such as highways, commercial parking lots, and urban charging stations.

The charging station is designed for easy installation, operation, and maintenance. It features an intuitive user interface and clear instructions for the user, making it easy to use for electric vehicle owners and operators. The station is also equipped with advanced safety features such as overvoltage protection, overcurrent protection, and short-circuit protection to ensure the vehicle's and the user's safety during the charging process.

Overall, the Mode 4 AF-18 Electric Car Charging 180kW EV Charger CCS2 GB/T Fast DC Charging Station is a state-of-the-art charging solution that offers fast, efficient, and safe charging for electric vehicles. It is an ideal solution for high-traffic areas where fast and reliable charging is essential.

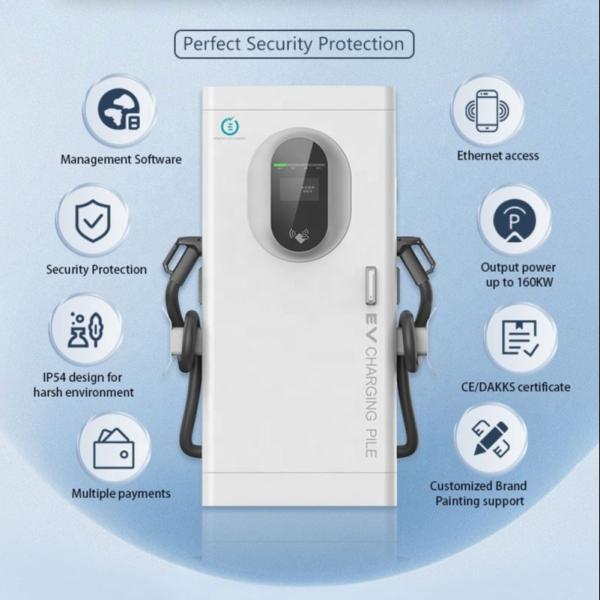

Product feature

  • CCS2 and GB/T fast charging protocols: The charging station is equipped with both CCS2 and GB/T, CCS1, and CHAdeMo fast charging protocols, making it compatible with a wide range of electric vehicles in the market.
  • High power output: The charging station can deliver a maximum power output of 180kW, allowing for ultra-fast charging of electric vehicles.
  • OCPP1.6 support: The charging station supports OCPP1.6, which enables communication between the charging station, electric vehicles, and charging network operators.
  • Easy to use: The charging station features an intuitive user interface and clear instructions for the user, making it easy to use for electric vehicle owners and operators.
  • Advanced safety features: The charging station is equipped with advanced safety features such as overvoltage protection, overcurrent protection, and short-circuit protection to ensure the safety of the vehicle and the user during the charging process.
  • Designed for easy installation and maintenance: The charging station is designed for easy installation and maintenance, with a modular design that allows for easy replacement of parts and components.

Overall, the Mode 3 AF-18 Electric Car Charging 180kW EV Charger CCS2 GB/T Fast DC Charging Station with OCPP1.6 support is a highly efficient, reliable, and safe charging solution that offers fast charging for electric vehicles while enabling communication between the charging station, electric cars, and charging network operators.

Specification

Model ES-AF14-1 ES-AF-2 ES-AF14-3
Detailed specifications rated power 60kW/80kW 120kW/160kW 180kW/240kW
Charging equipment Installation method Vertical
Wiring method Bottom line in, bottom line out
Input voltage AC380V±20%
Input frequency 45-65Hz
The output voltage 200-750VDC
Single gun output current range Ordinary model 0-120A Ordinary model 0-160A Ordinary model 0-250A
Constant power model 0-225A Constant power model 0-250A Constant power model 0-250A
Cable length 5m
Measurement accuracy 1.0 level
Electrical indicators Current limit protection value ≥110%
Stabilization accuracy ≤±0.5%
Steady flow accuracy ≤±1%
Ripple factor ≤±0.5%
effectiveness ≥94.5%
Power factor ≥0.99 (above 50% load)
Harmonic content THD ≤5% (above 50% load)
Feature design HMI 7-inch bright color touch screen
Charging mode Automatic full charge / fixed power / fixed amount / fixed time

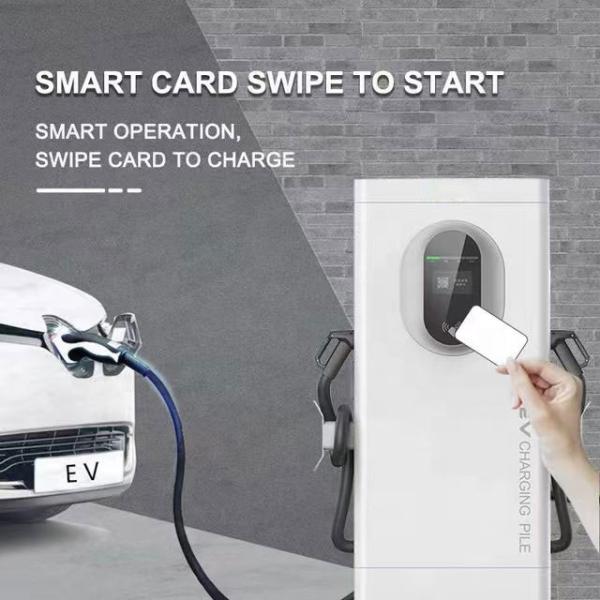

charging method Charging by swiping/charging by scanning code/charging by password
payment method Credit card payment/scan code payment/password charging
Networking method Ethernet/4G
Safe design Executive standard IEC 61851-1:2017,ICE 62196-2:2016
security function Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators Operating temperature -25℃~+50℃
Working humidity 5%~95% non-condensing frost
Working altitude <2000m
Protection level IP54
cooling method Air-cooled
Noise control ≤60dB
MTBF 100,000 hours
Dimensions Product Dimensions 1050*760*1900mm 1050*760*1900mm 1050*760*1900mm
Package Dimension 1750*1060*2000mm 1750*1060*2000mm 1750*1060*2000mm
Net Weight 210KG|220KG 330KG|360KG 390KG|450KG
Gross Weight 218KG|228KG 338KG|368KG 398KG|458KG

Product Display

Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo

Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo

Mode 3 AF-18 Electric Car 180kW Fast DC EV Charger CCS2 GB/T CHAdeMo
