High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-AF-18
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per month
Delivery Time :
15-25days
Packaging Details :
Carton or Wooden box
Product :
120kW DC EV Charger
Output Current :
380V, AC380V ±20%
Keywords :
charging station for electric vehicle
Operating temperature :
-30℃~50℃
Charging Standards :
CCS/CHAdeMO/GB/T/Type2
Color :
OCPP1.6J
Cable length :
5M(Customizable)
Output Power :
120kW
Description

DC EV Charger High Power Output EV Charger CCS2 Fast Charging Station 0-250A 120kW EV Charger

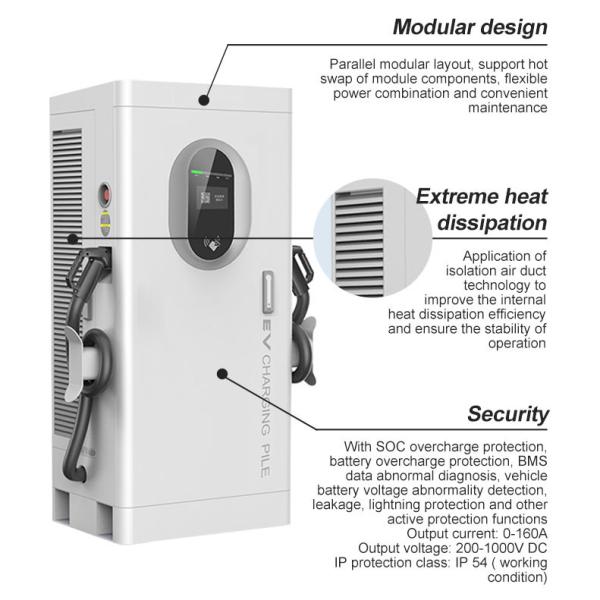

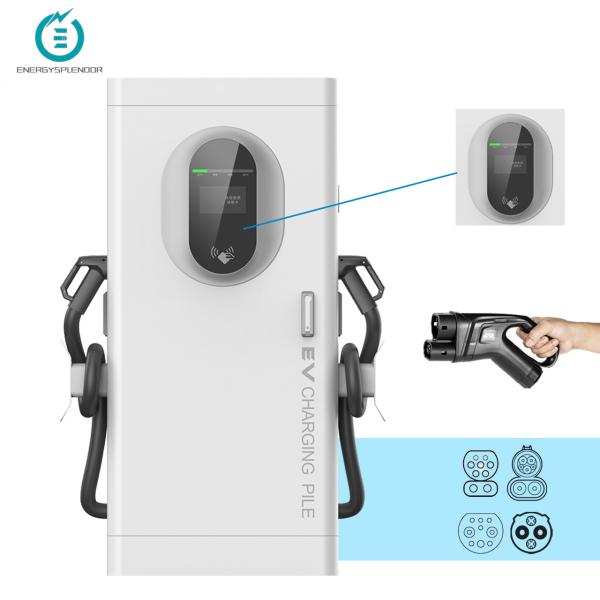

CCS2 120 kW DC EV charging station is a high-powered electric vehicle charging station that uses the CCS2 (Combined Charging System 2) standard to provide a fast and efficient charging option for electric vehicles. With a maximum power output of 120 kilowatts, this charging station is capable of providing a significant charge to an electric vehicle in a short amount of time. The single gun output means that only one vehicle can be charged at a time, but the 0-250A current range allows for the charging of a variety of electric vehicle models. This type of charging station is ideal for public spaces and commercial settings where quick charging is essential.

Product feature

The CCS2 120 kW DC EV charging station has several key product features, including:
High Power Output: With a maximum power output of 120 kW, this charging station is capable of providing a significant charge to an electric vehicle in a short amount of time.

  1. CCS2 Standard: The CCS2 standard is widely used in Europe and provides a reliable and efficient charging option for electric vehicles.
  2. Single Gun Output: The charging station has a single gun output, which means that only one vehicle can be charged at a time.
  3. 0-250A Current Range: The 0-250A current range allows for charging of a variety of electric vehicle models.
  4. User-Friendly Interface: The charging station has a user-friendly interface that makes it easy for EV drivers to use and access charging services.
  5. Weather-Resistant Design: The charging station is designed to withstand various weather conditions, making it suitable for outdoor use.
  6. RFID Authentication: The station features RFID authentication to ensure secure access and usage of the charging station.

Overall, the CCS2 120 kW DC EV charging station is a high-powered and reliable charging solution for electric vehicle owners and is ideal for use in public spaces and commercial settings.

Specification

Model ES-AF14-1 ES-AF-2 ES-AF14-3
Detailed specifications rated power 60kW/80kW 120kW/160kW 180kW/240kW
Charging equipment Installation method Vertical
Wiring method Bottom line in, bottom line out
Input voltage AC380V±20%
Input frequency 45-65Hz
The output voltage 200-750VDC
Single gun output current range Ordinary model 0-120A Ordinary model 0-160A Ordinary model 0-250A
Constant power model 0-225A Constant power model 0-250A Constant power model 0-250A
Cable length 5m
Measurement accuracy 1.0 level
Electrical indicators Current limit protection value ≥110%
Stabilization accuracy ≤±0.5%
Steady flow accuracy ≤±1%
Ripple factor ≤±0.5%
effectiveness ≥94.5%
Power factor ≥0.99 (above 50% load)
Harmonic content THD ≤5% (above 50% load)
Feature design HMI 7-inch bright color touch screen
Charging mode Automatic full charge / fixed power / fixed amount / fixed time
charging method Charging by swiping/charging by scanning code/charging by password
payment method Credit card payment/scan code payment/password charging
Networking method Ethernet/4G
Safe design Executive standard IEC 61851-1:2017,ICE 62196-2:2016
security function Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators Operating temperature -25℃~+50℃
Working humidity 5%~95% non-condensing frost
Working altitude <2000m
Protection level IP54
cooling method Air-cooled
Noise control ≤60dB
MTBF 100,000 hours
Dimensions Product Dimensions 1050*760*1900mm 1050*760*1900mm 1050*760*1900mm
Package Dimension 1750*1060*2000mm 1750*1060*2000mm 1750*1060*2000mm
Net Weight 210KG|220KG 330KG|360KG 390KG|450KG
Gross Weight 218KG|228KG 338KG|368KG 398KG|458KG

Product Display

High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW

High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW

High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 120kW
