Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-AF-18
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per month
Delivery Time :
15-25days
Packaging Details :
Carton or Wooden box
Product Name :
60kW DC EV Charger
Input Voltage :
AC380V ±20%
Keywords :
charging station for electric vehicle
Operating temperature :
-30℃~50℃
Charging Standards :
CCS/CHAdeMO/GB/T/Type2
Input Amps/per phase :
50/60Hz
Cable length :
5M(Customizable)
Maximum Output :
60kW/120kW
Output Voltage :
150-1000Vdc
Number of charging points :
2 charging points
Description

New Design Modern Style 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle Charging

The new design modern style 60kW and 120kW EV Charger CCS2 fast charging station is a state-of-the-art electric vehicle charging solution designed for efficient and reliable charging of electric vehicles.


The charging station features a sleek and modern design that will complement any urban or commercial environment. It is equipped with advanced safety features such as overvoltage protection, overcurrent protection, and short-circuit protection to ensure the safety of the vehicle and the user during the charging process.


The 60kW and 120kW charging options allow for fast charging of electric vehicles, reducing charging times significantly compared to standard charging options. The charging station is also equipped with smart charging technology that allows for load management and power sharing, ensuring that the charging process is efficient and cost-effective.


Overall, the new design modern style 60kW and 120kW EV Charger CCS2 fast charging station is a reliable, efficient, and safe charging solution that meets the needs of modern electric vehicle owners and operators.

Product feature

The CCS2 120 kW DC EV charging station has several key product features, including:
High Power Output: With a maximum power output of 120 kW, this charging station is capable of providing a significant charge to an electric vehicle in a short amount of time.

  1. CCS2 fast charging protocol: The charging station is equipped with the CCS2 (Combined Charging System) fast charging protocol, which is a standardized protocol used by most European and American automakers. This makes it compatible with a wide range of electric vehicles.
  2. Sleek and modern design: The charging station features a sleek and modern design that will complement any urban or commercial environment.
  3. Advanced safety features: The charging station is equipped with advanced safety features such as overvoltage protection, overcurrent protection, and short-circuit protection to ensure the safety of the vehicle and the user during the charging process.
  4. Fast charging options: The charging station comes with a 60kW charging option, which allows for fast charging of electric vehicles and reduces charging times significantly compared to standard charging options.
  5. Smart charging technology: The charging station is equipped with smart charging technology that allows for load management and power sharing, ensuring that the charging process is efficient and cost-effective.
  6. Easy to use: The charging station is designed to be easy to use, with intuitive controls and clear instructions for the user.

Specification

Model ES-AF14-1 ES-AF-2 ES-AF14-3
Detailed specifications rated power 60kW/80kW 120kW/160kW 180kW/240kW
Charging equipment Installation method Vertical
Wiring method Bottom line in, bottom line out
Input voltage AC380V±20%
Input frequency 45-65Hz
The output voltage 200-750VDC
Single gun output current range Ordinary model 0-120A Ordinary model 0-160A Ordinary model 0-250A
Constant power model 0-225A Constant power model 0-250A Constant power model 0-250A
Cable length 5m
Measurement accuracy 1.0 level
Electrical indicators Current limit protection value ≥110%
Stabilization accuracy ≤±0.5%
Steady flow accuracy ≤±1%
Ripple factor ≤±0.5%
effectiveness ≥94.5%
Power factor ≥0.99 (above 50% load)
Harmonic content THD ≤5% (above 50% load)
Feature design HMI 7-inch bright color touch screen
Charging mode Automatic full charge / fixed power / fixed amount / fixed time
charging method Charging by swiping/charging by scanning code/charging by password
payment method Credit card payment/scan code payment/password charging
Networking method Ethernet/4G
Safe design Executive standard IEC 61851-1:2017,ICE 62196-2:2016
security function Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators Operating temperature -25℃~+50℃
Working humidity 5%~95% non-condensing frost
Working altitude <2000m

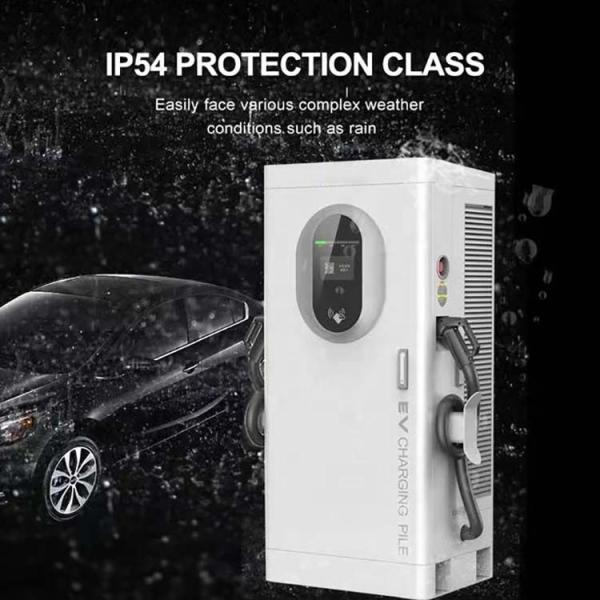

Protection level IP54
cooling method Air-cooled
Noise control ≤60dB
MTBF 100,000 hours
Dimensions Product Dimensions 1050*760*1900mm 1050*760*1900mm 1050*760*1900mm
Package Dimension 1750*1060*2000mm 1750*1060*2000mm 1750*1060*2000mm
Net Weight 210KG|220KG 330KG|360KG 390KG|450KG
Gross Weight 218KG|228KG 338KG|368KG 398KG|458KG

Product Display

Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle

Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle

Modern 60kW 120kW EV Charger CCS2 Fast Charging Station For Electric Vehicle
