Cable Flexing Test Apparatus Compliant with IEC60245-2 and IEC60227-1 for Mechanical Strength Testing at 0.33m/s
Cable Flexing Test Apparatus Compliant with IEC60245-2 and IEC60227-1 for Mechanical Strength Testing at 0.33m/s
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-HWF
Certification :
CNAS Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD1000~USD5000
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
10-20 working days
Packaging Details :
woodencase
Normative standards :
IEC60245-2, IEC60227-1
Application :
for testing the mechanical strength of completed flexiable cables
Configuration :
carrier, driving system, pulleys
Test distance :
1m
Test Speed :
0.33m/s
Mass :
0.5kg, 1.0kg, 2.0kg, 3.0kg, 4.0kg
Diameter of pulleys :
φ60mm, φ80mm, φ120mm, φ160mm, φ200mm
Input :
220V, 50Hz/60Hz
Description

Cable Flexing Test Apparatus for Testing the Mechanical Strength of Completed Flexiable cables Compliant with IEC60245-2

  1. Introduction of Flexing Test Apparatus

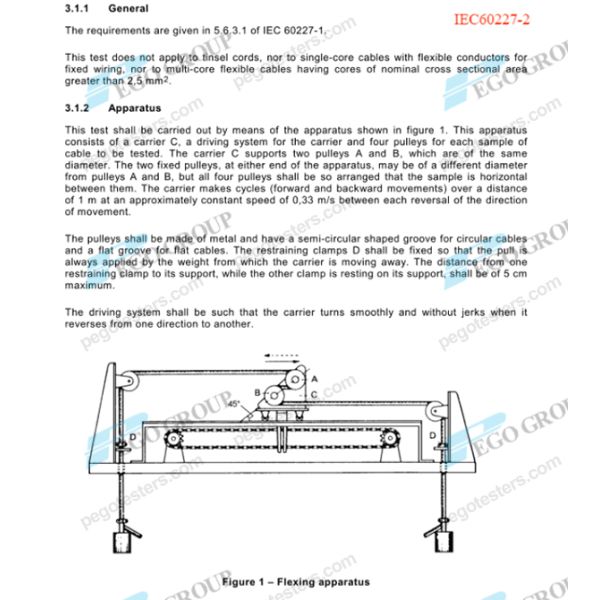

The flexing test apparatus is designed to meet the test requirements of IEC60245-2 clause 3.1 & figure 3.1 and IEC60227-1 clause 3.1 & figure 1, for verifying the mechanical strength of completed flexiable cables. The flexing test is applied to test the PVC insulated cables and rubber insluated cables with 2 or more cores, rated at voltage up and equal to 450V/750V.

The flexing test apparatus mainly consists of a carrier, a driving system for the carrier and four pulleys for each sample of cable to be tested. The carrier supports two pulleys A and B (have same diameter). The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them.


2. Specification of Flexing Test Apparatus

Control units

Meter+button

Test distance

1m

Test speed

0.33m/s

Test current

0-35A (adjustable)

Diameter and quantity of pulleys

φ60mm*2, φ80mm*2, φ120mm*2, φ160mm*2, φ200mm*2

Masses

0.5kg *2, 1.0kg*2, 2.0kg*2. 3.0kg*2, 4.0kg*2

Length of tested cable

5m

Test specimens

2-18 cores, 0.5mm2-2.5mm2

Counter

0-999999 (digital display)

Working power

220V, 50Hz/60Hz
