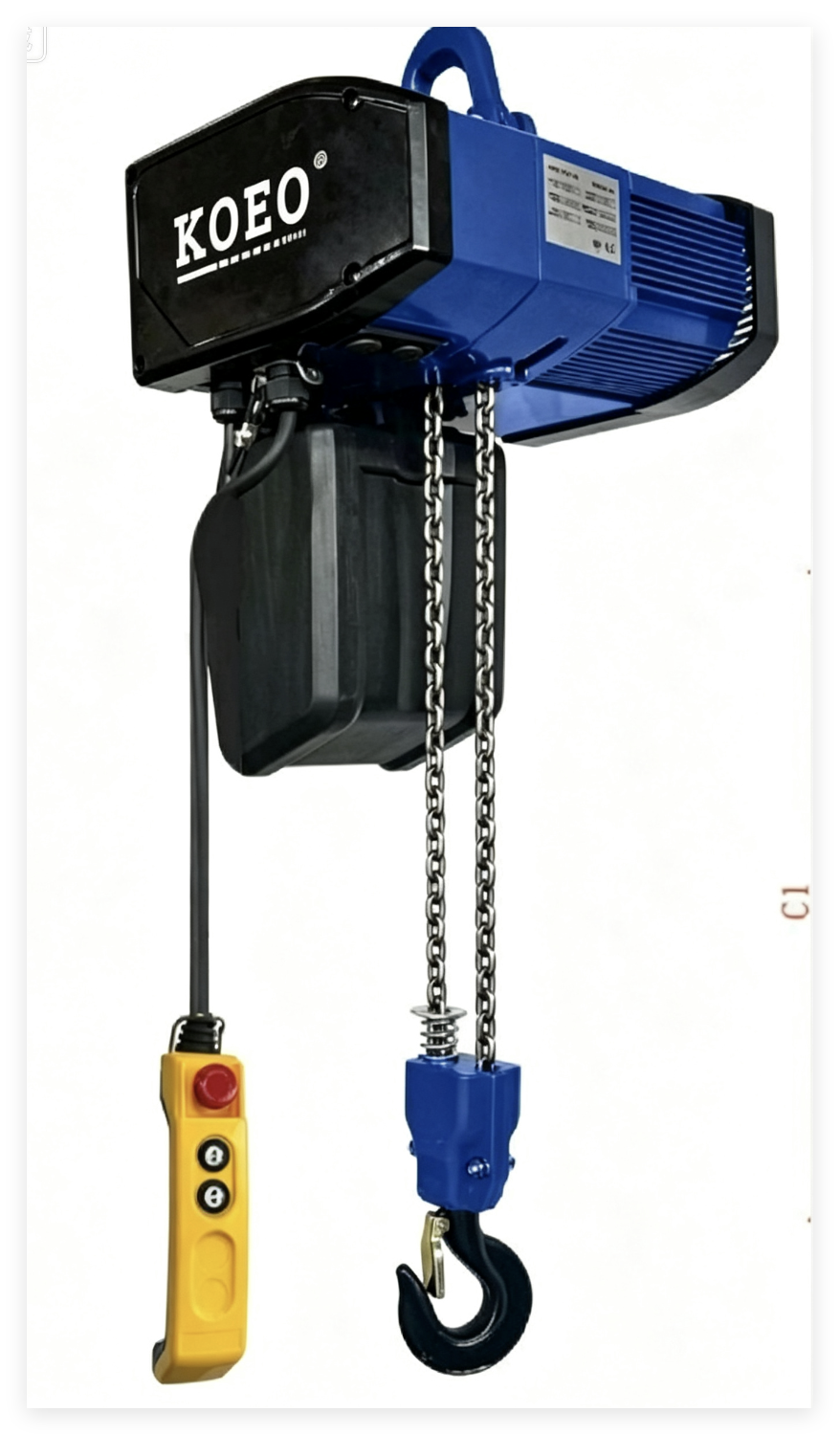

50 Hz Hook Chain Hoist 0.25 T - 6 T Flexible Hoist Longer Service Life
50 Hz Hook Chain Hoist 0.25 T - 6 T Flexible Hoist Longer Service Life
Specifications
Supply Ability :
200 Sets per Month
Model Number :
KN
Hoisting Speed :
0.7-8 m/min
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Frequency :
50 Hz
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Chain Diameter :
Φ36-Φ51 mm
Certification :
CE, ISO 9001:2015
Hoisting Motor Power :
0.9-4.5 kW
Brand Name :
KOEO
Rated Load :
0.25-6 T
Place of Origin :
Zhejiang, China
Voltage :
380 V
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description

Higher Performance European Electric Hook Chain Hoist Longer Service Life

European electric chain hoist with flexible action, positioning accuracy. It stands up quickly and efficiently, offering low speed and high speed hoisting for smooth and accurate load positioning.

In practical terms, European electric chain service life is extended by approximately 20% in comparison with the conventional 2m classification for chain hoists FEM rating. This results in significantly prolonged time between service intervals and general overhauls. This extra operating life is only offered by European electric chain.

Technical Parameter Table

Model Rated Load (T) Hoisting Speed (m/min) Hoisting Motor (3 Phase) Running Motor (3 Phase) Working Class Chain Diameter (mm)
High Speed Low Speed Output Power (kW) Motor Speed (r/min) Phases Voltage (V) Frequency (Hz) Power (W) Motor Speed (r/min) Running Speed (m/min)
KN0.25-01 0.25 8 2 0.9/0.25 2880/720 3 380 50 200 1440 10.5 M6 5
KN0.5-01 0.5 8 2 0.9/0.25 2880/720 3 380 50 200 1440 10.5 M6 5
KN01-02 1 4 1 0.9/0.25 2880/720 3 380 50 200 1440 10.5 M5 5
KN01-01 1 8 1.3 1.8/0.3 2880/480 3 380 50 200 1440 10.5 M5 7.1
KN02-02 2 4 0.7 1.8/0.3 2880/480 3 380 50 200 1440 10 M5 7.1
KN02-01 2 8 1.3 3.6/0.6 2880/480 3 380 50 200 1440 10 M5 10
KN025-02 2.5 4 0.7 3.6/0.6 2880/480 3 380 50 450 1440 10 M4 10
KN03-01 3 8 1.3 4.5/0.8 2880/480 3 380 50 450 1440 10 M4 11
KN04-02 4 4 0.7 3.6/0.6 2880/480 3 380 50 450 1440 10 M5 10
KN05-02 5 4 0.7 3.6/0.6 2880/480 3 380 50 450 1440 10 M5 11
KN06-02 6 4 0.7 4.5/0.8 2880/480 3 380 50 450 1440 10 M4 11

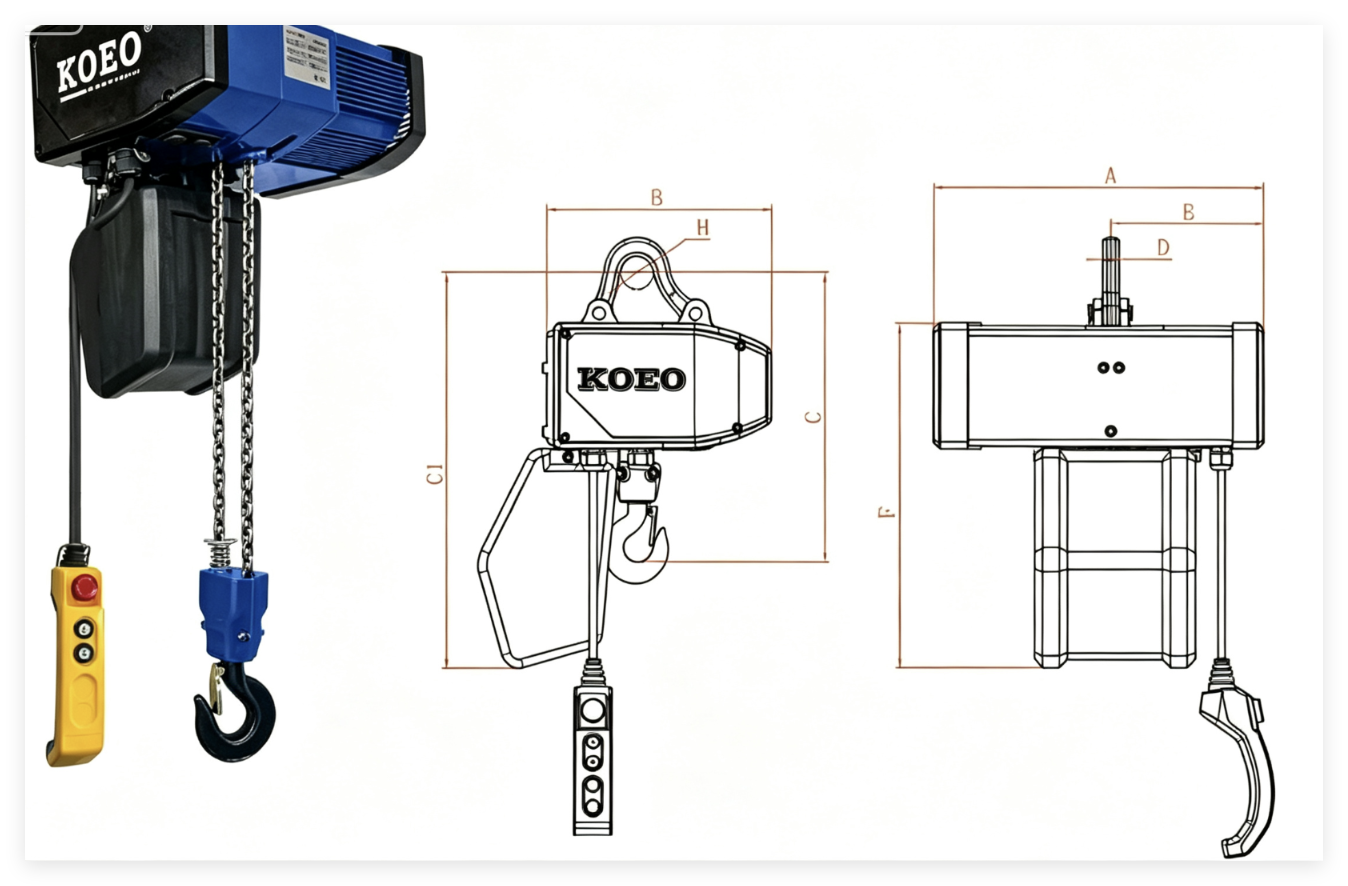

Fixed Type Dimensions

Fixed Type Dimensions
Model C C1 B H D E A F
KNO25-01 370 500 270 Φ36 20 190 406 420
KNO05-01 370 500 270 Φ36 20 190 406 420
KNO1-02 440 500 270 Φ36 20 190 406 420
KNO1-01 450 555 335 Φ40 25 229 510 450
KNO2-02 542 555 335 Φ40 25 229 510 450
KNO2-01 591 723 386 Φ51 37 300 593 595
KNO25-02 542 555 335 Φ40 25 229 510 450
KNO3-01 616 723 386 Φ51 37 300 593 595
KNO4-02 768 723 386 Φ51 37 300 593 595
KNO5-02 768 723 386 Φ51 37 300 593 595
KNO6-02 768 723 386 Φ51 37 300 593 595

50 Hz Hook Chain Hoist 0.25 T - 6 T Flexible Hoist Longer Service Life

KN series hoists are specifically designed for application on aluminum and rigid crane tracks
