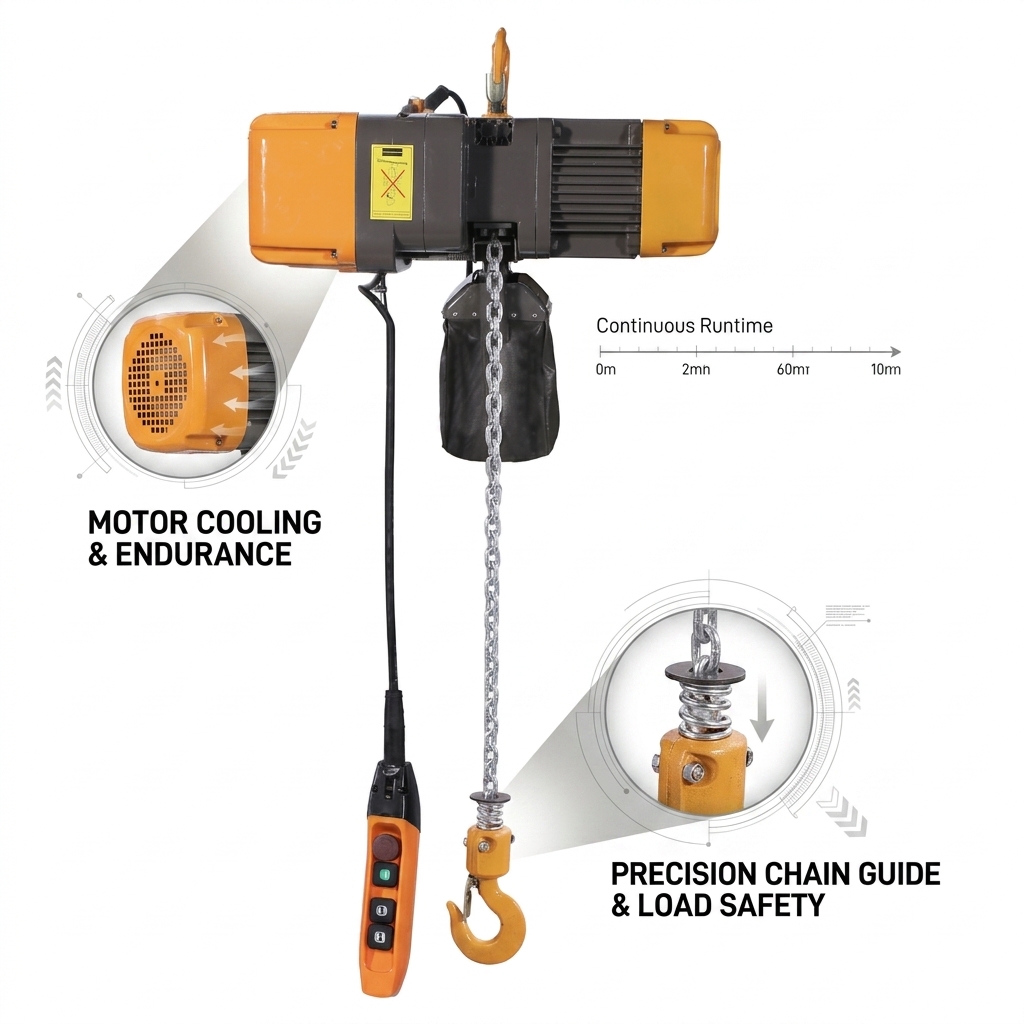

Motorized Trolley 1 Ton Hook Electric Chain Hoist Traveling Type G80 Chain IP55 Motor 380V Workshop Crane

The KOEO EQ01-01 IS is a motorized trolley 1 ton hook electric chain hoist that combines vertical lifting with powered horizontal travel for complete material handling coverage. Designed for single-girder overhead crane systems, monorail installations, and workshop jib crane applications, the EQ01-01 IS provides smooth motorized traverse movement at 11 m/min alongside reliable 1-ton lifting at 6.6 m/min. The integrated trolley carriage with hardened steel wheels, sealed lifetime-lubricated bearings, and adjustable flange width accommodates various I-beam sizes. With IP55 motor protection, G80 alloy steel load chain, and electromagnetic DC braking, this traveling hoist delivers efficient, safe material handling for production lines, assembly stations, and warehouse operations.

• Integrated Motorized Trolley System: The powered trolley carriage provides smooth horizontal travel at 11 m/min, enabling operators to lift and traverse loads across the full span of overhead crane beams without manual pushing. The 0.4 kW trolley motor delivers consistent travel speed regardless of load weight, significantly improving workflow efficiency compared to manual push trolleys.
• 1 Ton Reliable Lifting Performance: The 1.5 kW three-phase motor delivers 6.6 m/min lifting speed at 50Hz with smooth acceleration for stable load handling. Combined with G80 alloy steel chain and electromagnetic DC brake, the hoist provides dependable 1000 kg lifting capacity for daily production and assembly tasks.
• Adjustable Trolley Beam Compatibility: The trolley carriage features adjustable flange width settings to accommodate a wide range of I-beam and H-beam sizes commonly used in overhead crane systems. Hardened steel trolley wheels with sealed lifetime-lubricated ball bearings ensure smooth, quiet travel with minimal maintenance requirements.
• G80 Alloy Steel Load Chain: The 7.1 mm G80 calibrated alloy steel chain provides a 4:1 safety factor with excellent fatigue resistance. The single-fall configuration minimizes moving parts while delivering fast, efficient lifting speeds ideal for high-frequency production line material handling.
• IP55 Enclosed Motor Protection: Both the lifting and trolley motors feature IP55-rated enclosures providing protection against dust and water jets. Class F insulation rated to 155°C ensures reliable performance in dusty manufacturing environments and semi-outdoor covered crane installations.
• Hook-Type Quick Suspension: The forged alloy steel top hook with safety latch enables rapid installation on overhead crane trolleys and jib crane arms. The 360-degree swivel design allows the hoist body to rotate freely, providing flexible load orientation during lifting and traversing operations.
• 48V Pendant with Dual-Axis Control: The ergonomic pendant controller features separate up/down and left/right buttons for intuitive two-axis operation. The 48V low voltage control system ensures operator safety, with an emergency stop button providing immediate shutdown of both lifting and travel functions.

The EQ01-01 IS motorized trolley hook electric chain hoist is ideal for single-girder overhead crane systems in manufacturing assembly lines, monorail conveyor systems in production facilities, workshop jib crane installations for machine tool loading, warehouse loading dock material handling, painting and coating line workpiece transport, and automotive parts distribution centers. The powered trolley eliminates manual pushing effort, reducing operator fatigue and increasing throughput in facilities performing more than 30 lift-and-traverse cycles per shift.

Each EQ01-01 IS hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding, moisture-proof VCI wrapping, and silica gel desiccant packs. Export-grade outer carton with steel banding ensures secure international transit. Every unit undergoes 100 percent factory load testing at 1.25 times rated capacity (1.25 tons) with full trolley travel function verification. CE certified compliant with EU Machinery Directive 2006/42/EC. Manufactured under ISO 9001:2015 quality management systems. G80 chain certified to EN 818-7 standard. Standard delivery within 5 to 7 working days for stock models and 15 to 20 days for bulk production orders.
