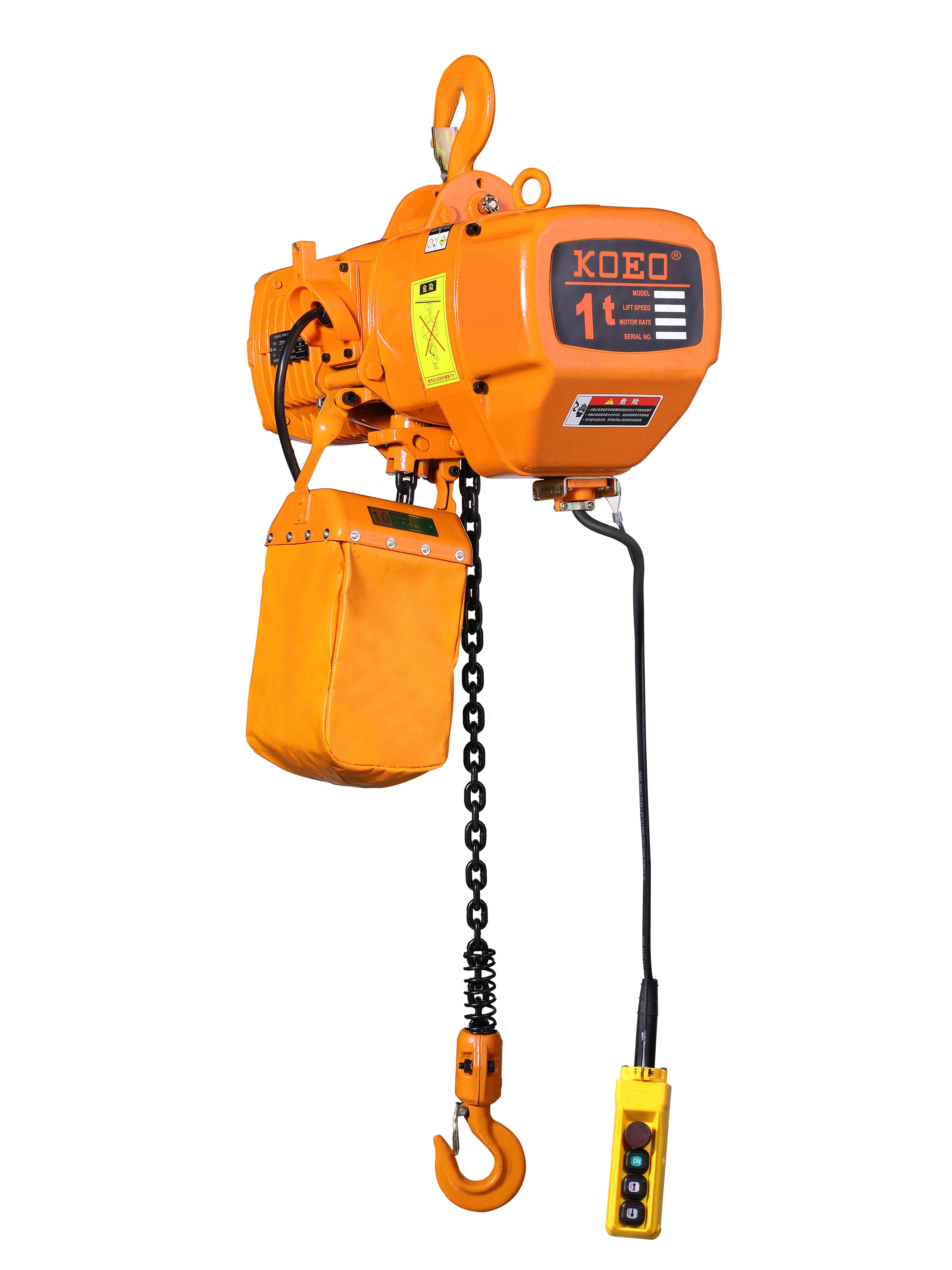

0.5T - 30T Hook Chain Hoist Single Speed Traveling Type Electric Chain Hoist
0.5T - 30T Hook Chain Hoist Single Speed Traveling Type Electric Chain Hoist
0.5T - 30T Hook Chain Hoist Single Speed Traveling Type Electric Chain Hoist
0.5T - 30T Hook Chain Hoist Single Speed Traveling Type Electric Chain Hoist
Specifications
Supply Ability :
200 Sets per Month
Model Number :
HHBB
Lifting speed :
6.8m/min, 3.4m/min, 5.4m/min, 2.7m/min
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Insulation class :
F
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Chain diameter :
6.3mm, 7.1mm, 10.0mm, 11.2mm
Certification :
CE, ISO 9001:2015
Power :
0.75KW, 1.5KW, 3.0KW
Brand Name :
KOEO
Lifting weight :
0.5-30T
Place of Origin :
Zhejiang, China
Work duty :
M3
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description
0.5-30t HHBB Single Speed Traveling Type Electric Chain Hoist Frequency conversion

The HHBB Series is KOEO's mainstream electric chain hoist line, covering a full range of lifting capacities from 0.5 to 30 tons. Featuring frequency conversion technology, the series comes standard with dual-speed lifting and supports stepless speed regulation customization to flexibly adapt to various special working conditions.
The HHBB Single Speed Traveling Type is a single-speed traveling electric chain hoist that combines efficient lifting with horizontal traverse movement, making it the ideal choice for material handling in factories, warehouses, docks, and more.

Chain Hoist Parameters
Model Name Lifting weight speed power work duty Insulation class Order quantity Price (USD)
HHBB 0.5-01 HHBB Series Hook type 0.5T 0.5T 6.8m/min 0.75KW M3 F 1 286
HHBB 01-01 HHBB Series Hook type 1T 1T 6.8m/min 1.5KW M3 F 1 311
HHBB 01-02 HHBB Series Hook type 1T 1T 3.4m/min 0.75KW M3 F 1 311
HHBB 02-02 HHBB Series Hook type 2T 2T 3.4m/min 1.5KW M3 F 1 364
HHBB 02-01 HHBB Series Hook type 2T 2T 6.6m/min 3.0KW M3 F 1 503
HHBB 03-01 HHBB Series Hook type 3T 3T 5.4m/min 3.0KW M3 F 1 525
HHBB 03-02 HHBB Series Hook type 3T 3T 3.3m/min 3.0KW M3 F 1 565
HHBB 05-02 HHBB Series Hook type 5T 5T 2.7m/min 3.0KW M3 F 1 680
Chain Hoist Logistics information
Each product length*width*height (CM) Each piece of merchandise (KG) Delivery period
52*32*36 46 7
57*36*42 53 7
52*32*36 50 7
57*36*42 65 7
66*40*50 110 7
66*40*50 118 7
66*40*50 128 7
66*40*50 136 7
Applicable Type Chain Diameter D (mm) Inside Length P (mm) Inside Width A (mm) Outside Width B (mm) Working Load (kg) Guaranteed Load (kN) Break Load (kN)
HHBB00301 6.3 19 7.5 20 1100 26.5 45
HHBB00501 6.3 19 7.9 22 1120 27 47
HHBB0101 7.1 21 8.9 25 1600 37 61.6
HHBB0202 7.1 21 8.9 25 1600 37 61.6
HHBB0303 7.1 21 8.9 25 1600 37 61.6
HHBB01501 10.0 30 12.5 35 3200 76 125
HHBB0201 10.0 30 12.5 35 3200 76 125
HHBB0302 10.0 30 12.5 35 3200 76 125
HHBB02501 11.2 34 14 39 3800 92 154
HHBB0301 11.2 34 14 39 3800 92 154
HHBB0502 11.2 34 14 39 3800 92 154
HHBB07503 11.2 34 14 39 3800 92 154
HHBB1004 11.2 34 14 39 3800 92 154
HHBB1506 11.2 34 14 39 3800 92 154
HHBB2008 11.2 34 14 39 3800 92 154
HHBB2508 11.2 34 14 39 3800 92 154
HHBB3010 11.2 34 14 39 3800 92 154
HHBB3512 11.2 34 14 39 3800 92 154
Type Load (T) T B A (mm) B (mm) C (mm) D (mm) E (mm) G (mm)
HHBB 0.3 / 0.5 T B 27 18 25 17 35 28
HHBB 1 T B 34 24 30 24 42 32
HHBB 2 T B 46 29 39 30 49 40
HHBB 3 T B 56 35 49 34 59 48
HHBB 5 T B 67 43 57 44 60 48
HHBB 7.5 T B 82 55 80 48 85 80
HHBB 10 T B 82 55 80 48 85 80
HHBB 15 T B 110 78 120 80 120 96
HHBB 20 / 25 T B 142 95 155 98 150 115
Why Choose Junchi HHBB?
Comparison Item Junchi HHBB Advantage
Quality Assurance Strict compliance with international safety standards, reliable quality
Frequency Conversion Technology Smooth operation, precise positioning, lower energy consumption
Aluminum Cast Housing Lightweight design, easier installation and maintenance
Full Range Coverage 0.5–30 T one-stop solution, worry-free selection
Customization Capability Special working conditions and requirements fully adaptable
Cost-Effectiveness Mainstream positioning, premium quality, reasonable price
