High Efficiency Lifting 1T Electric Hoist Single Speed Lightweight Chain Hoist M3
High Efficiency Lifting 1T Electric Hoist Single Speed Lightweight Chain Hoist M3
Specifications
Supply Ability :
200 Sets per Month
Model Number :
HHBB01-01
Lifting speed :
6.8m/min
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Insulation class :
F
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Dimensions :
57*36*42 CM
Certification :
CE, ISO 9001:2015
Power :
1.5KW
Brand Name :
KOEO
Lifting weight :
1T
Place of Origin :
Zhejiang, China
Work duty :
M3
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description
High-Efficiency Lifting 1T HHBB Single Speed Hook Electric Chain Hoist

Junchi offers high quality Hook electric chain hoists, HHBB series is a mainstream type. The capacity is 0.5-30t. Frequency conversion electric chain hoist. Standard dual speed, or stepless speed regulation.Suitable for various special requirements.Integrated aluminum casting molding: Lightweight and easy to maintain.

Chain Hoist Parameters
Model Name Lifting weight speed power work duty Insulation class Order quantity Price (USD)
HHBB 0.5-01 HHBB Series Hook type 0.5T 0.5T 6.8m/min 0.75KW M3 F 1 286
HHBB 01-01 HHBB Series Hook type 1T 1T 6.8m/min 1.5KW M3 F 1 311
HHBB 01-02 HHBB Series Hook type 1T 1T 3.4m/min 0.75KW M3 F 1 311
HHBB 02-02 HHBB Series Hook type 2T 2T 3.4m/min 1.5KW M3 F 1 364
HHBB 02-01 HHBB Series Hook type 2T 2T 6.6m/min 3.0KW M3 F 1 503
HHBB 03-01 HHBB Series Hook type 3T 3T 5.4m/min 3.0KW M3 F 1 525
HHBB 03-02 HHBB Series Hook type 3T 3T 3.3m/min 3.0KW M3 F 1 565
HHBB 05-02 HHBB Series Hook type 5T 5T 2.7m/min 3.0KW M3 F 1 680
Chain Hoist Logistics information
Each product length*width*height (CM) Each piece of merchandise (KG) Delivery period
52*32*36 46 7
57*36*42 53 7
52*32*36 50 7
57*36*42 65 7
66*40*50 110 7
66*40*50 118 7
66*40*50 128 7
66*40*50 136 7
High Efficiency Lifting 1T Electric Hoist Single Speed Lightweight Chain Hoist M3

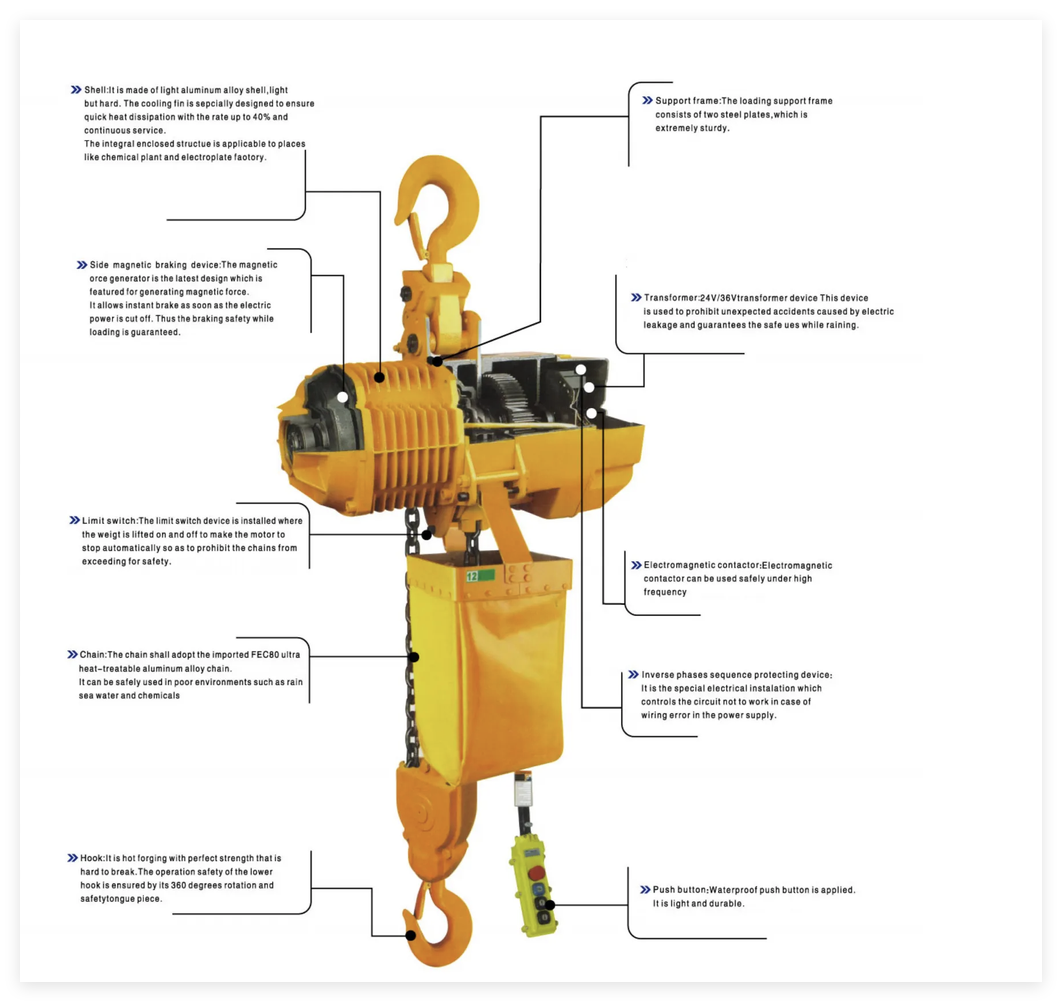

Component Details
Component Description
Shell The shell is made of lightweight aluminum alloy, making it both light and durable. The specially designed cooling fins provide up to 40% higher heat dissipation, allowing continuous operation. The enclosed structure is suitable for harsh environments such as chemical plants and electroplating factories.
Side Magnetic Brake The side-mounted magnetic brake adopts a long-life brake design with excellent safety performance. It provides instant braking immediately after power is disconnected, ensuring reliable load holding and operational safety.
Limit Switch The upper and lower limit switch automatically stops the motor when the hook reaches its travel limit, preventing over-travel of the load chain and ensuring safe lifting operations.
Load Chain The load chain is manufactured from imported FEC80 ultra heat-treated alloy steel, providing outstanding strength and wear resistance. It performs reliably in harsh environments such as rain, seawater, and chemical plants.
Hook The forged hook is manufactured through hot forging for maximum strength and durability. The lower hook features 360° rotation and is equipped with a safety latch for enhanced operational safety.
Support Frame The load-bearing support frame consists of two heavy-duty steel plates, providing excellent rigidity and structural strength.
Transformer (24V / 36V) The built-in 24V/36V transformer ensures low-voltage control operation, reducing the risk of electric leakage and improving operator safety, especially in rainy or humid environments.
Electromagnetic Contactor High-quality electromagnetic contactor designed for high-frequency operation, ensuring stable performance and long service life.
Inverse Phase Sequence Protection The phase sequence protection device automatically prevents incorrect operation caused by reversed wiring or abnormal power supply, protecting both the motor and electrical system.
Push Button Control Waterproof push-button pendant with lightweight and durable construction, providing safe and convenient operation under various working conditions.
