Single Chain Single Speed 3T Chain Hoist Hook Type Electric Chain Hoist
Single Chain Single Speed 3T Chain Hoist Hook Type Electric Chain Hoist
Specifications
Supply Ability :
200 Sets per Month
Model Number :
EQ03-01
Hook speed :
7.0/2.3m/min
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Frequency :
50Hz
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Net weight :
104kg
Certification :
CE, ISO 9001:2015
Motor power :
3.6KW
Brand Name :
KOEO
Lifting weight :
3T
Place of Origin :
Zhejiang, China
Voltage :
380V
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description
3T Single Chain Single Speed Hook Type Electric Chain Hoist

Designed for heavy-duty industrial lifting, this 3-ton electric chain hoist features a single-fall load chain system for smooth, efficient operation. Equipped with a high-strength hook suspension, a single-speed precision motor, and robust safety mechanisms, it delivers reliable performance, easy installation, and maximum durability in workshops, warehouses, and construction sites.

Features:
  1. M5 work level: Means a much longer service life.
  2. IP55 protection level: Can work continuously for longer periods of time in harsh environments.
  3. With friction clutch: Together with up/down limit switch, dual security guarantee.
  4. Integrated aluminum casting molding: Lightweight and easy to maintain.
Product parameters
ModelNameLifting weightspeedpowerwork dutyInsulation classOrder quantityPrice (USD)
EQ 01-01EQ Series Hook type double speed 1T1T7.1/2.4m/min1.5KWM5F1676
EQ 02-02EQ Series Hook type double speed 2T2T3.5/1.2m/min1.5KWM5F1740
EQ 02-01EQ Series Hook type double speed 2T2T7.0/2.3m/min3.0KWM5F1980
EQ 03-01EQ Series Hook type double speed 3T3T7.0/2.3m/min3.6KWM5F11030
EQ 03-02EQ Series Hook type double speed 3T3T3.5/1.1m/min3.0KWM5F11100
EQ 05-02EQ Series Hook type double speed 5T5T3.5/1.1m/min3.6KWM5F11280
Logistics information
Each product length*width*height (cm)Each piece of merchandise(kg)Delivery period
68*35*40507
68*34*41607
85*40*481057
85*39*611107
85*46*611207
85*49*611287
Single Chain Single Speed 3T Chain Hoist Hook Type Electric Chain Hoist
The advantages of frequency conversion used hoop chain hoist:

Motor realize soft start, reduce the start moment shock the electric grid current. At the same time, the motor not easy heating, increase the working life and working level of motor, smoothly start reduce shock equipment after installed frequency conversion, especially installed debugging mould and other precision equipment then more stable and safety.

Technical Parameters
TypeCapacity (Ton)Standard Hook Height (m)Hook Speed (m/min)Lifting Motor Power (kW)Rotation Speed (r/min)PhaseVoltage (V)Frequency (Hz/s)Operating MotorNet Weight (kg)Added Weight per Range Rise (kg)
EQ01-01147.1/2.41.51440338050/471.3
EQ02-01247.0/2.33.01440338050/722.3
EQ02-02243.5/1.21.51440338050/542.6
EQ03-01347.0/2.33.61440338050/1042.8
EQ03-02343.5/1.23.01440338050/1074.7
EQ05-02543.5/1.23.61440338050/1325.6

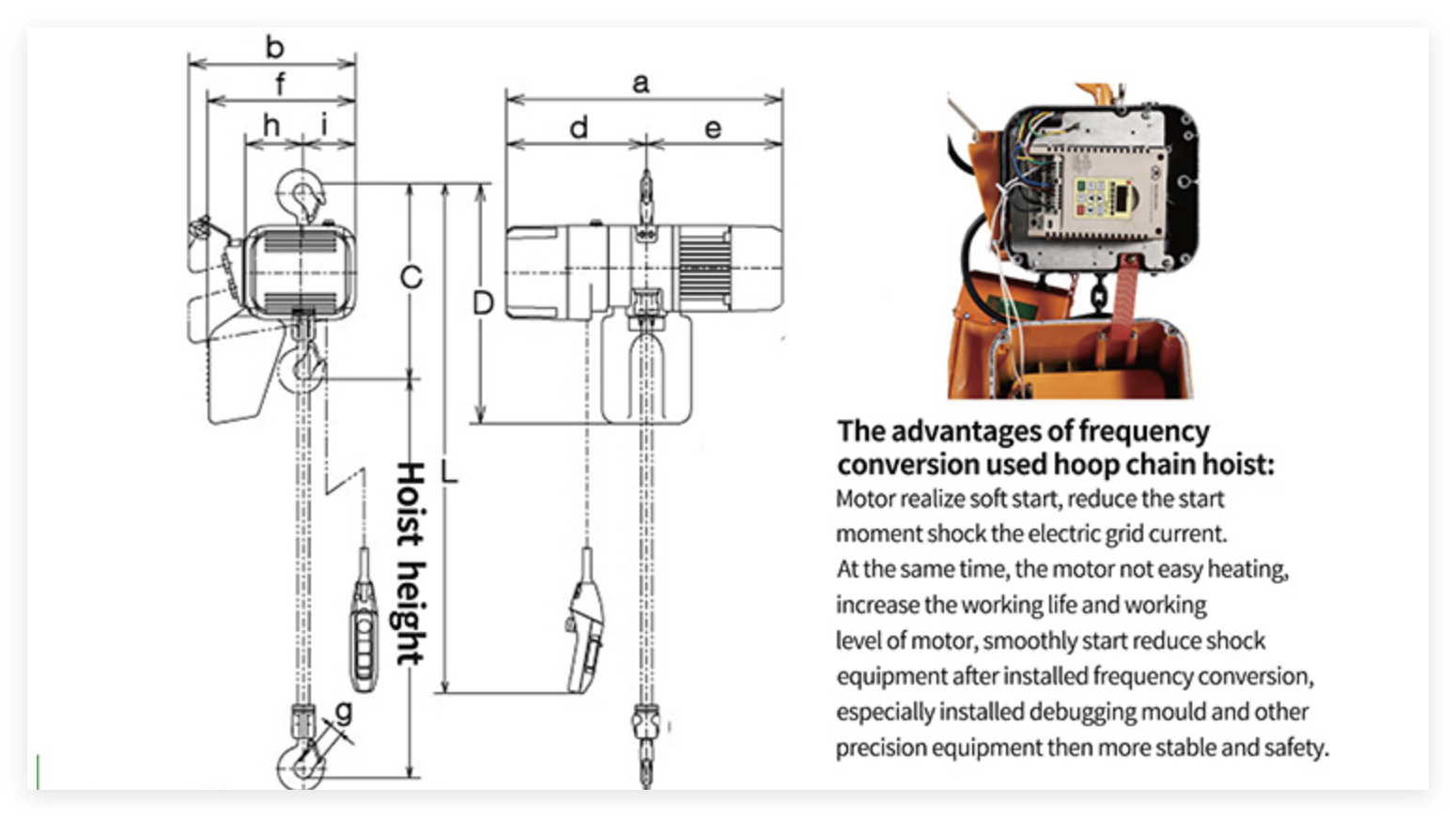

Size Specification Table
TypeCapacity (Ton)CDabdefghiChain
EQ01-011430550650376340300335Φ31129118Φ7.1
EQ02-012540630780427420365400Φ34160124Φ10.0
EQ02-022570630650427340300335Φ3412990Φ7.1
EQ03-013615630780430420365400Φ59160137Φ11.2
EQ03-023690630780430420365400Φ59160142Φ10.0
EQ05-025850800780445420365400Φ5916082Φ11.2
