Product Overview

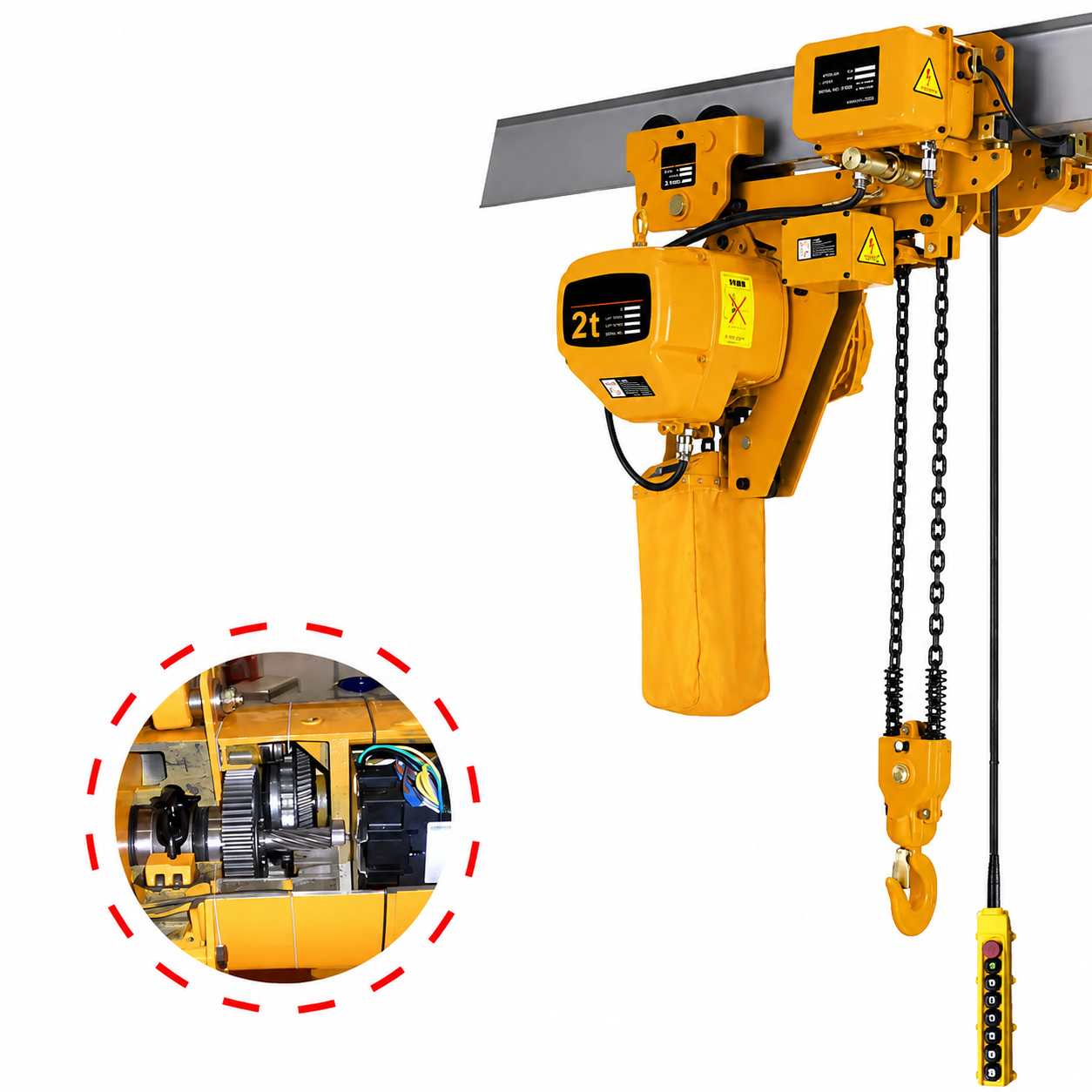

The KOEO HHBBSL02-01 low headroom electric chain hoist is purpose-engineered for facilities with limited overhead clearance. Featuring an ultra-compact body design that maximizes the hook approach distance, this 2 ton capacity hoist delivers exceptional lifting performance in spaces where standard hoists cannot fit. Equipped with a dual speed motorized trolley system and G80 alloy chain, it provides precise load positioning with smooth cross travel along the I-beam runway. The IP54 rated motors and robust construction ensure reliable operation in demanding industrial environments.

Key Features

• Ultra-compact low headroom body design maximizes available lifting height in confined spaces
• Dual speed lifting (6.8/2.2 m/min) enables fast traverse and precise load positioning
• Integrated motorized trolley with independent 0.75kW drive motor for effortless horizontal travel
• Dual speed trolley travel (11/21 m/min) offers efficiency and control across the runway
• G80 high-strength alloy chain with 2-fall configuration distributes load evenly for stability
• 3.0kW copper wound motor with Class H insulation (180°C rating) for thermal endurance
• IP54 rated enclosure protects internal components from dust and low-pressure water jets
• Electromagnetic spring-applied fail-safe brake holds load securely on power interruption
• Adjustable trolley frame fits I-beam flange widths from 100mm to 300mm
• Forged alloy steel load hook with 360-degree swivel and heavy-duty safety latch
• Upper and lower geared limit switches provide redundant over-travel protection
• Anti-corrosion epoxy coating withstands harsh workshop environments

Technical Specifications

Applications

Specifically designed for low-clearance workshops, automotive assembly lines, warehouse mezzanine levels, food processing facilities with limited headroom, textile mill material handling, pharmaceutical clean rooms, printing and packaging workshops, and any industrial environment where maximizing vertical lift height under restricted ceiling clearance is critical.

Certifications & Compliance

ISO 9001:2015 Quality Management System certified manufacturing. CE marked. Complete material traceability and factory acceptance test (FAT) reports provided with each unit. Proudly manufactured by KOEO.
