CE ISO Certified Low Headroom Electric Hoist High Precision Low Headroom Trolley Hoist
CE ISO Certified Low Headroom Electric Hoist High Precision Low Headroom Trolley Hoist
Specifications
Supply Ability :
200 Sets per Month
Model Number :
KN
Model :
KNO.25-01, KNO.5-01, KN01-02, KN01-01, KN02-02, KN02-01, KN025-02, KNO3-01, KNO4-02, KN05-02, KN06-02
MOQ :
1 Set
Delivery Time :
15-30 Days
Payment Terms :
L/C,T/T
Price :
USD 850-1,350 / Set
Certification :
CE, ISO 9001:2015
Trolley Dimensions :
C: 261-593mm, C1: 521-754mm, B: 831-1212mm, B1: 486-758mm, B2: 213-353mm, A: 406-593mm, A1: 301-377mm, A2: 170-182mm, Min.Width E: 80-125mm
Place of Origin :
Zhejiang, China
Stationary Dimensions :
C: 241-584mm, cl: 502-729mm, c2: 80-135mm, b: 537-855mm, b1: 486-758mm, b2: 60-161mm, d: Φ31-Φ54mm, d1: Φ31-Φ43mm, h: 30-55mm, h1: 23.8-34mm, a: 406-593mm, al: 190-300mm, e: 90-120mm
Packaging Details :
KOEO branded heavy-duty plywood case with VCI anti-rust film, reinforced steel frame, high-density foam, export-grade outer carton with steel banding
Brand Name :
KOEO
Name :
Low Headroom Electric Hoist
Description

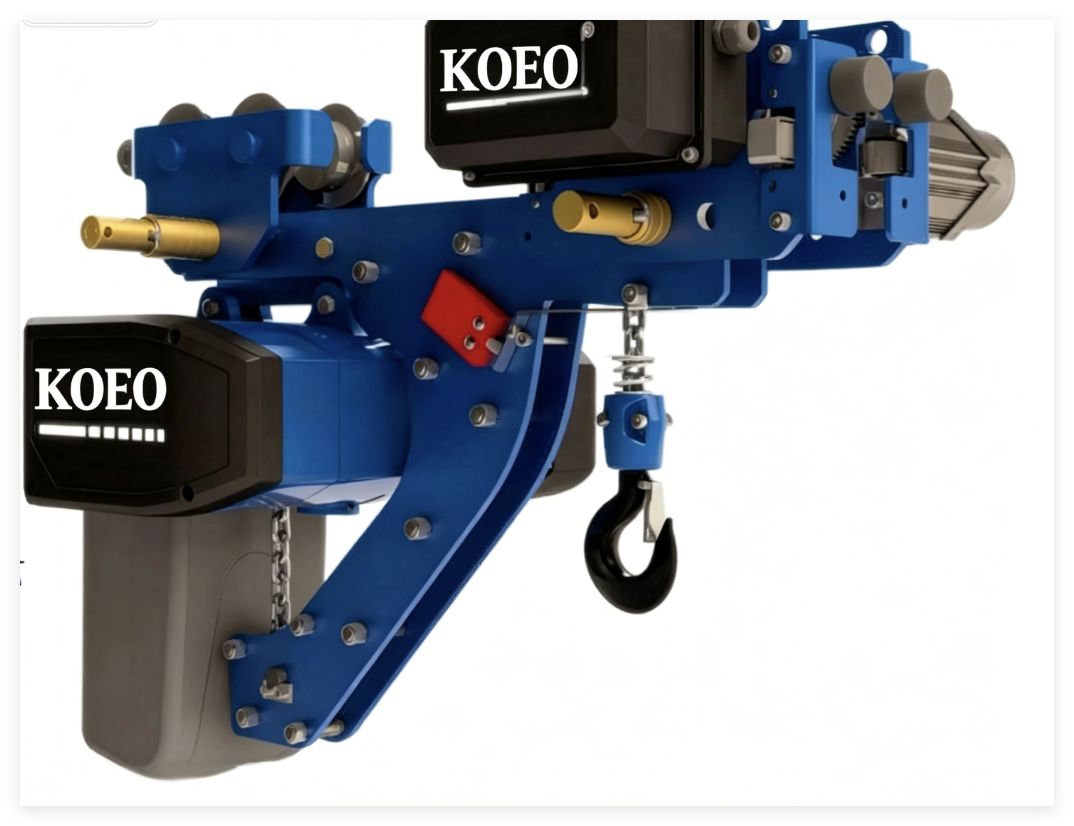

European Low Headroom Electric Chain Hoist High-precision

Product Features:

It is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required.

CE ISO Certified Low Headroom Electric Hoist High Precision Low Headroom Trolley Hoist

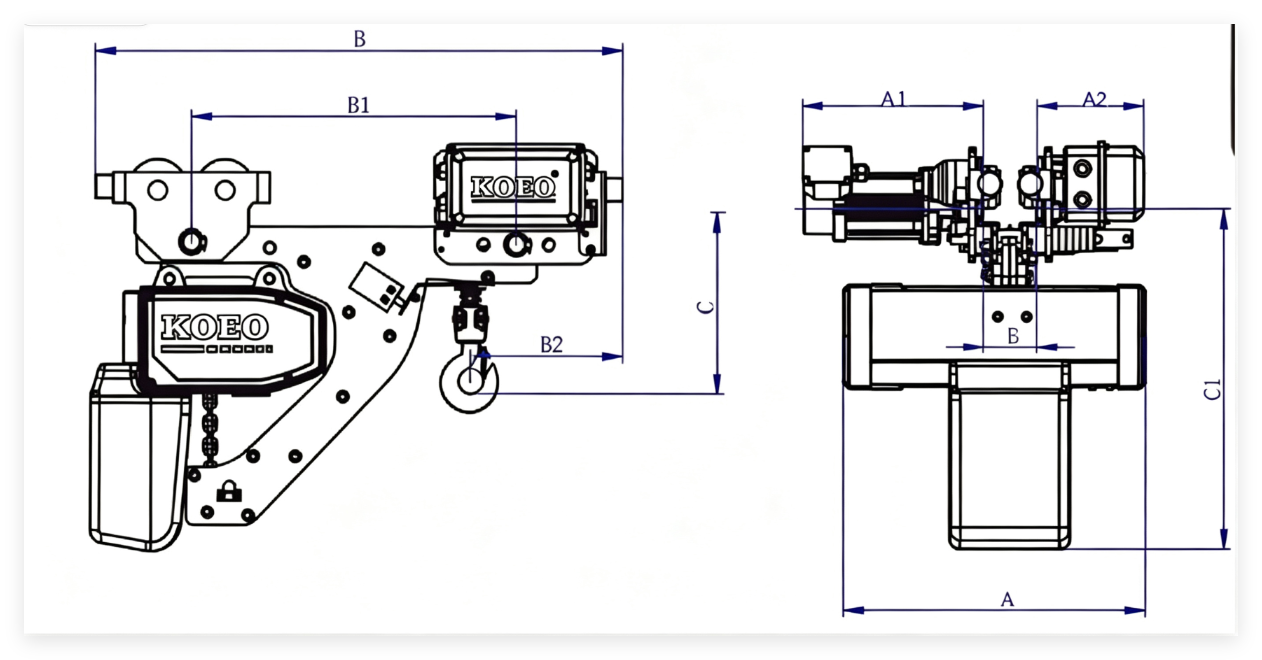

Low Headroom Trolley Dimensional Parameters
Model C C1 B B1 B2 A A1 A2 Min.Width E
KNO.25-01 261 521 831 486 237 406 301 175 80
KNO.5-01 261 521 831 486 237 406 301 175 80
KNO1-02 325 521 831 486 213 406 301 175 80
KNO1-01 311 579 897 552 260 510 306 180 90
KN02-02 411 587 939 552 264 510 311 170 100
KN02-01 433 754 1135 758 330 593 311 170 105
KN025-02 555 754 1181 758 282 593 372 172 105
KNO3-01 462 758 1181 758 353 593 372 172 120
KNO4-02 593 738 1212 758 309 593 377 182 120
KN05-02 593 738 1212 758 309 593 377 182 125
KN06-02 593 738 1212 758 309 593 377 182 125

CE ISO Certified Low Headroom Electric Hoist High Precision Low Headroom Trolley Hoist

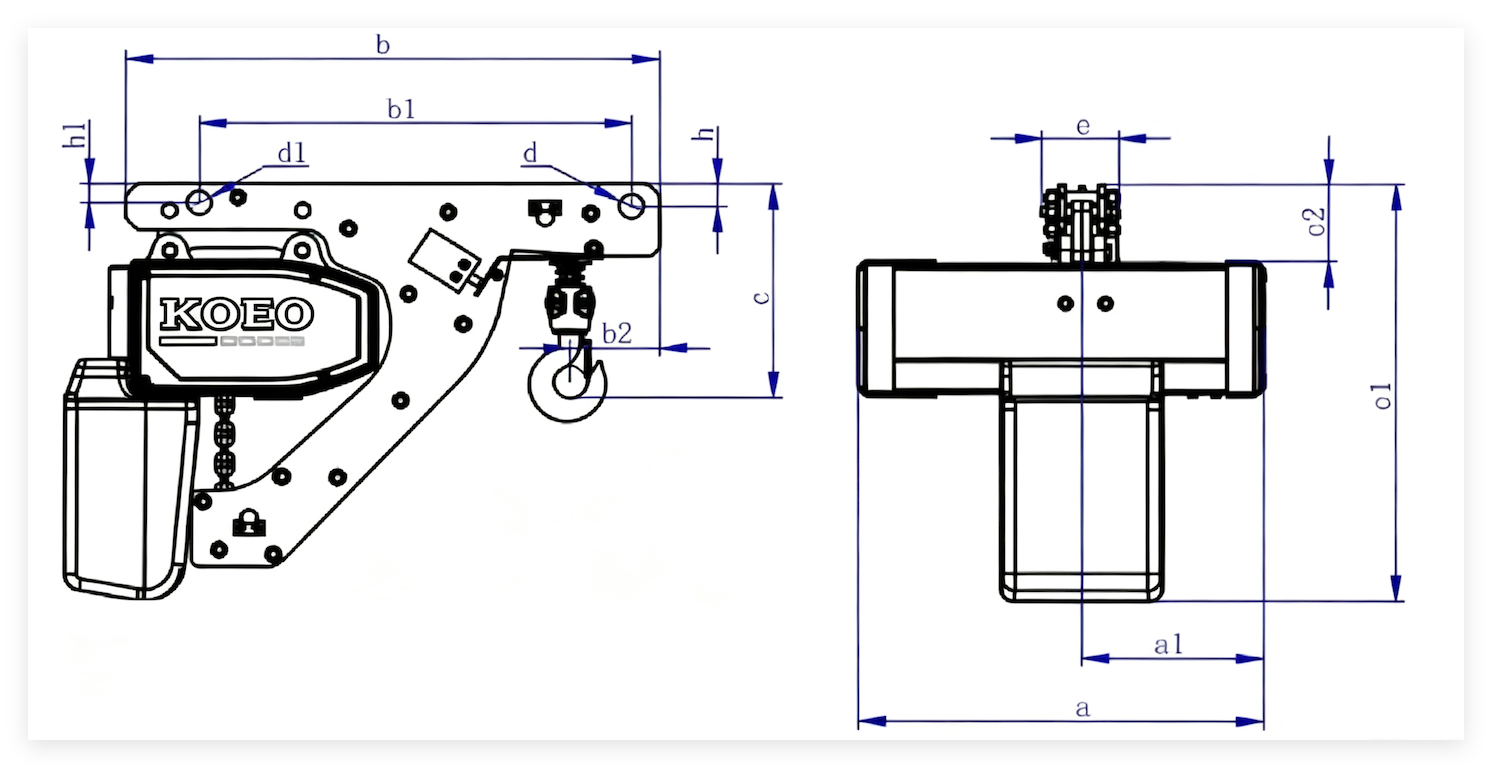

Low Headroom Stationary Dimensional Parameters
Model C cl c2 b b1 b2 d d1 h h1 a al e
KNO.25-01 241 502 80 537 486 84 Φ31 Φ31 37 23.8 406 190 90
KNO.5-01 241 502 80 537 486 84 Φ31 Φ31 37 23.8 406 190 90
KN01-02 306 502 80 537 486 60 Φ31 Φ31 37 23.8 406 190 90
KN01-01 285 552 100 680.5 552 113 Φ31 Φ31 30 25.5 510 228 100
KN02-02 377 552 100 680.5 552 75 Φ36 Φ31 33 25.5 510 228 100
KN02-01 408 729 135 855 758 161 Φ36 Φ31 42 25 593 300 110
KN025-02 530 729 135 855 758 114 Φ43 Φ36 55 34 593 300 110
KNO3-01 432 729 135 855 758 159 Φ43 Φ36 55 34 593 300 120
KNO4-02 584 729 135 855 758 110 Φ54 Φ43 55 34 593 300 110
KNO5-02 584 729 135 855 758 110 Φ54 Φ43 55 34 593 300 120
KN06-02 584 729 135 855 758 110 Φ54 Φ43 55 34 593 300 120
