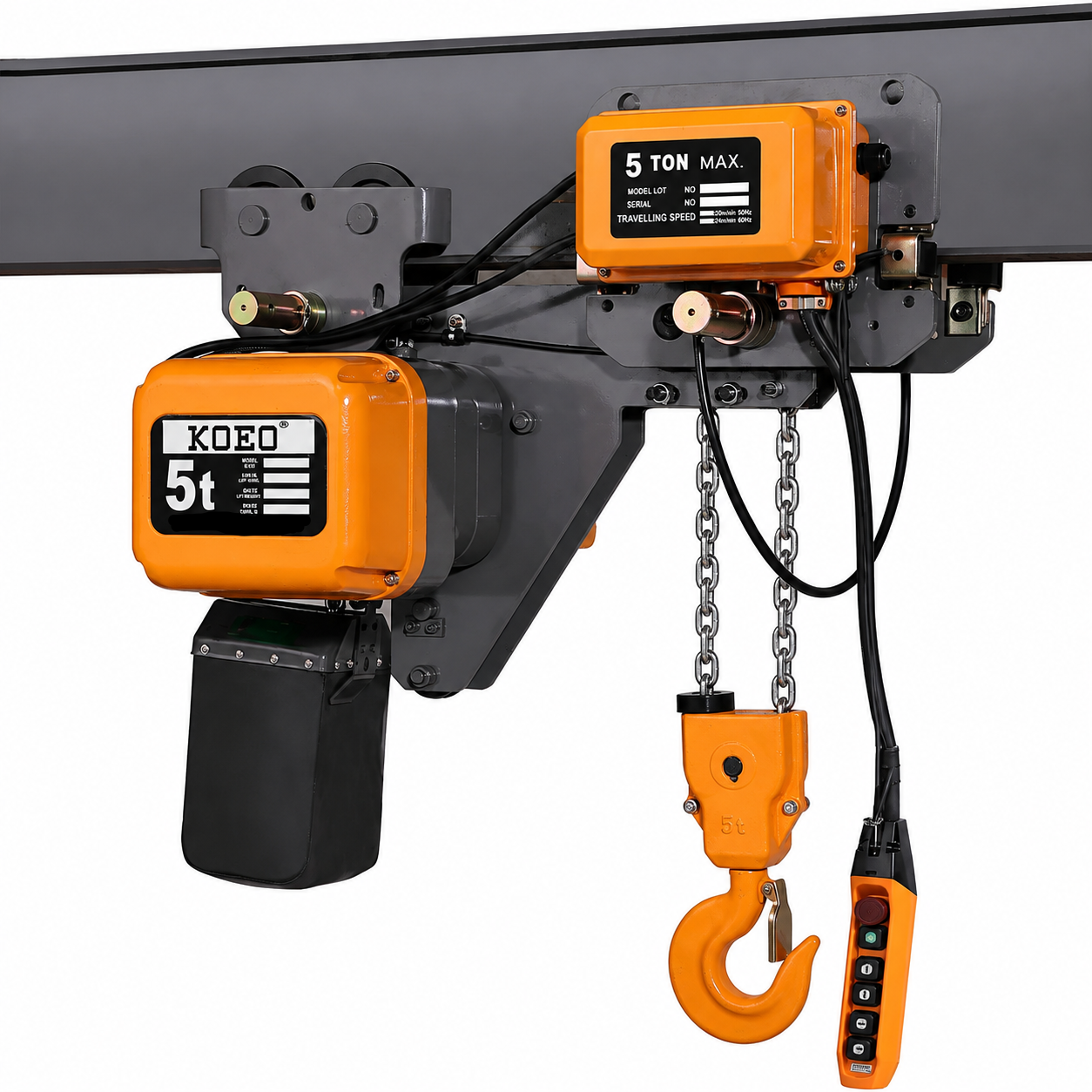

The KOEO EQ05-02L is a heavy duty 5 ton low headroom electric chain hoist that delivers high-capacity lifting in a remarkably compact 480 mm headroom profile. Featuring twin 3.6 kW IP55 motors, a 2-fall G80 alloy steel chain system, dual electromagnetic DC brakes, and M5 work duty rating, the EQ05-02L brings serious lifting power to factories where overhead space constraints previously limited hoist capacity options. Compared to conventional 5-ton hoists requiring 700 mm or more, the EQ05-02L recovers over 200 mm of valuable lift height in any installation.

• 5 Ton Capacity in 480 mm Headroom: Delivers full 5000 kg lifting within a compact 480 mm headroom profile, significantly less than conventional 5-ton hoists. This translates to over 200 mm of additional usable lift height, a critical advantage in retrofitted industrial buildings with low overhead crane runways and constrained ceiling clearances.
• 2-Fall G80 Alloy Steel Chain (Ø11.2 mm): Premium 11.2 mm G80 calibrated alloy steel chain in a 2-fall configuration distributes 5-ton loads across four independent load-bearing strands with a 4:1 safety factor. Hardened steel chain pockets ensure precise alignment and smooth lifting at all speeds.
• Dual Electromagnetic DC Brake System: Twin independent electromagnetic DC brakes provide completely redundant load holding with instant engagement upon power interruption. Both brakes are individually tested at 125 percent of half-rated capacity, ensuring a fail-safe configuration for critical 5-ton industrial lifts.
• M5 Heavy Duty Work Rating: Rated for M5 / H4 duty classification, the HHBB-05 is engineered for sustained heavy-duty cycling in steel fabrication, foundry, and heavy machinery assembly. The twin motor design distributes thermal load across two independent cooling paths for continuous operation.
• IP55 Enclosed Twin Motors: Both 3.0 kW motors feature IP55-rated protection against dust and water jets. Class F insulation rated to 155°C ensures reliable performance in high-ambient-temperature industrial environments including foundries and heat treatment facilities.
• Comprehensive Safety Systems: Factory-calibrated overload clutch prevents lifting beyond 5-ton capacity. Upper and lower limit switches with emergency stop on the 48V pendant provide three independent safety layers for critical lifts in confined headroom environments.

The EQ05-02L is engineered for steel fabrication shops with low overhead crane runways, foundry operations with limited ceiling height, heavy machinery assembly in retrofitted buildings, power plant turbine hall maintenance, ship compartment and marine engine room lifting, and mining equipment maintenance bays. The 480 mm headroom enables 5-ton lifting in spaces where conventional hoists of this capacity simply cannot fit without expensive structural modifications to increase ceiling height.

Each EQ05-02L is packed in a KOEO-branded heavy-duty plywood case with VCI anti-rust film, reinforced steel frame, high-density polyurethane foam padding, and silica gel desiccant packs. Export-grade outer carton with steel banding and shock-watch impact indicators. Every unit undergoes 100 percent factory load testing at 1.25 times rated capacity (6.25 tons). CE certified. Manufactured under ISO 9001:2015. G80 chain certified to EN 818-7. Standard delivery within 10 to 15 working days for stock, 25 to 30 days for production.
