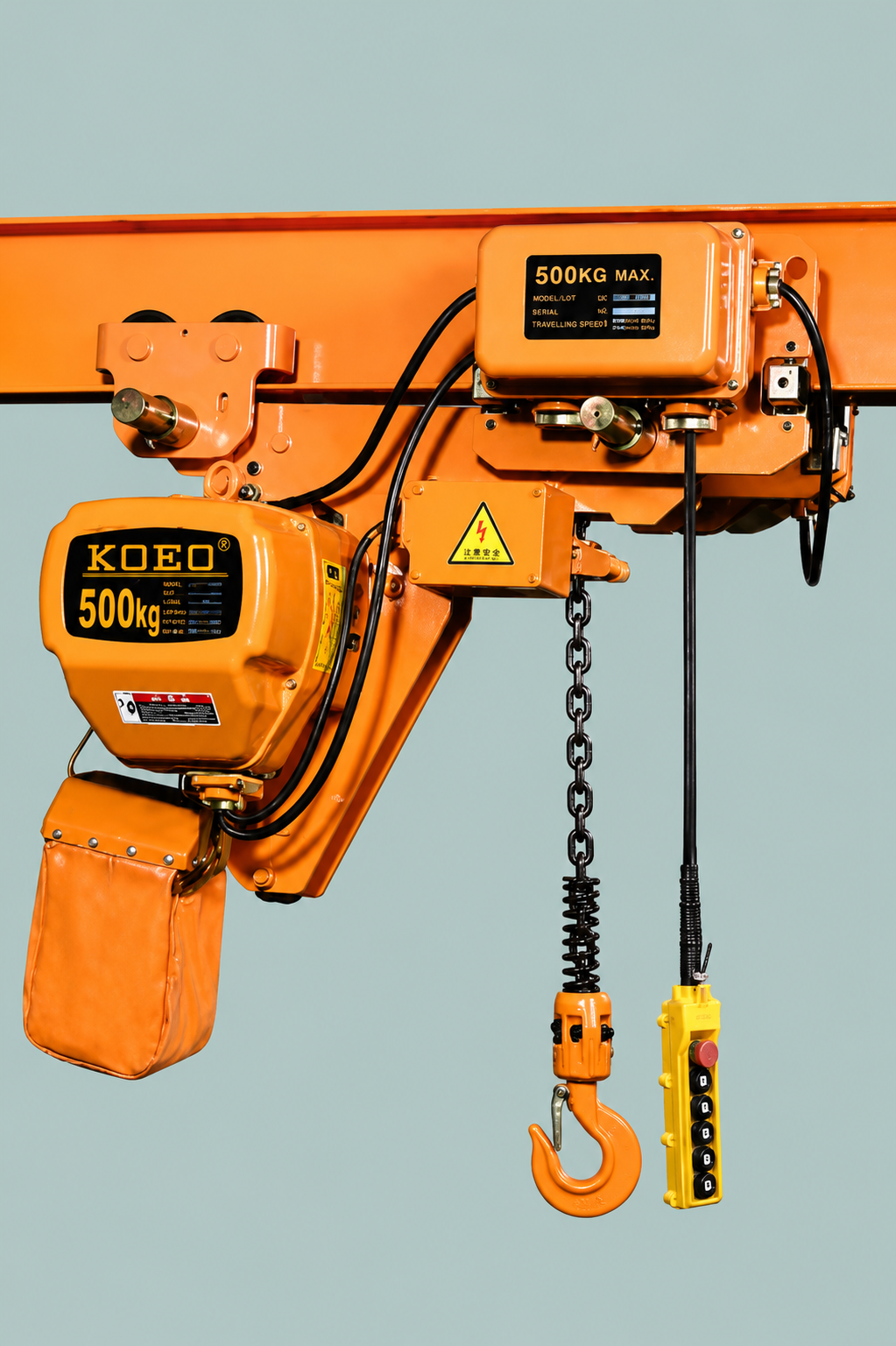

The KOEO HHBBSL005-01 is an ultra low headroom 0.5 ton electric chain hoist requiring just 250 mm of headroom. Engineered for small workshops, garages, and fabrication stations where every millimeter of overhead clearance matters, the HHBBSL005-01 maximizes usable lift height through an innovative side-mount body design. With IP54 motor protection, G80 alloy steel chain, and precision electromagnetic DC brake, this hoist delivers professional-grade 500 kg lifting in a body compact enough for installations with ceiling heights as low as 2.3 meters where conventional hoists simply cannot fit.

• Class-Leading 250 mm Headroom: The 250 mm headroom specification is the lowest for any 500 kg electric chain hoist, enabling installations in residential garages, basement workshops, and mezzanine-level work areas with ceiling heights as low as 2.3 meters. The innovative side-mount motor design maximizes usable lift height without compromising power or cooling.
• Side-Mount Motor Configuration: The 0.75 kW IP55 motor is positioned alongside the chain path rather than above it, dramatically reducing vertical profile while maintaining excellent accessibility and cooling. This configuration achieves the industry-leading 250 mm headroom without reducing lifting speed or duty cycle capability.
• G80 Alloy Steel Micro-Chain (Ø5.0 mm): Premium 5.0 mm G80 calibrated alloy steel chain with hardened low-profile chain guides optimized for the side-mount configuration. The fine-pitch chain delivers smooth quiet lifting with a 4:1 safety factor and minimal vibration in low-headroom installations.
• IP54 Enclosed Motor: The 0.75 kW motor features IP54-rated protection against dust and water jets. Class F insulation rated to 155°C ensures reliable performance in dusty garage and workshop environments with limited ventilation typical in low-ceiling spaces.
• Precision Electromagnetic DC Brake: The compact DC brake is integrated into the side-mount housing, providing instant silent load holding with zero creep. The brake maintains precise positioning at any height, essential for careful load handling in confined overhead spaces.
• Upper and Lower Limit Switches: Integrated mechanical limit switches automatically stop hook travel at both extremes, preventing chain overrun. Critical in low-headroom installations where the distance between upper and lower limits is inherently restricted by the ceiling height.
• Universal Low-Profile Bracket: The included low-profile mounting bracket with multiple bolt patterns enables installation on ceiling joists, wall-mounted jib arms, and overhead support beams. The bracket adds only 22 mm to the already ultra-low 250 mm headroom specification.

The HHBBSL005-01 is purpose-designed for residential garages with standard 2.3 to 2.5 meter ceiling heights, basement workshops, converted commercial spaces with suspended ceilings, mezzanine storage areas, food truck and mobile workshop bays, and any installation where overhead clearance is critically limited. The 250 mm headroom makes it the only electric hoist viable for spaces where even compact conventional hoists need 100 to 150 mm more clearance than is available.

Each HHBBSL005-01 is packed in a KOEO-branded reinforced plywood case with high-density foam padding, moisture-proof VCI wrapping, and silica gel desiccant packs. Export-grade outer carton ensures secure transit. Every unit undergoes 100 percent factory load testing at 1.25 times rated capacity (625 kg). CE certified compliant with EU Machinery Directive 2006/42/EC. Manufactured under ISO 9001:2015. G80 chain certified to EN 818-7. Standard delivery within 5 to 7 working days for stock, 15 to 20 days for production orders.
