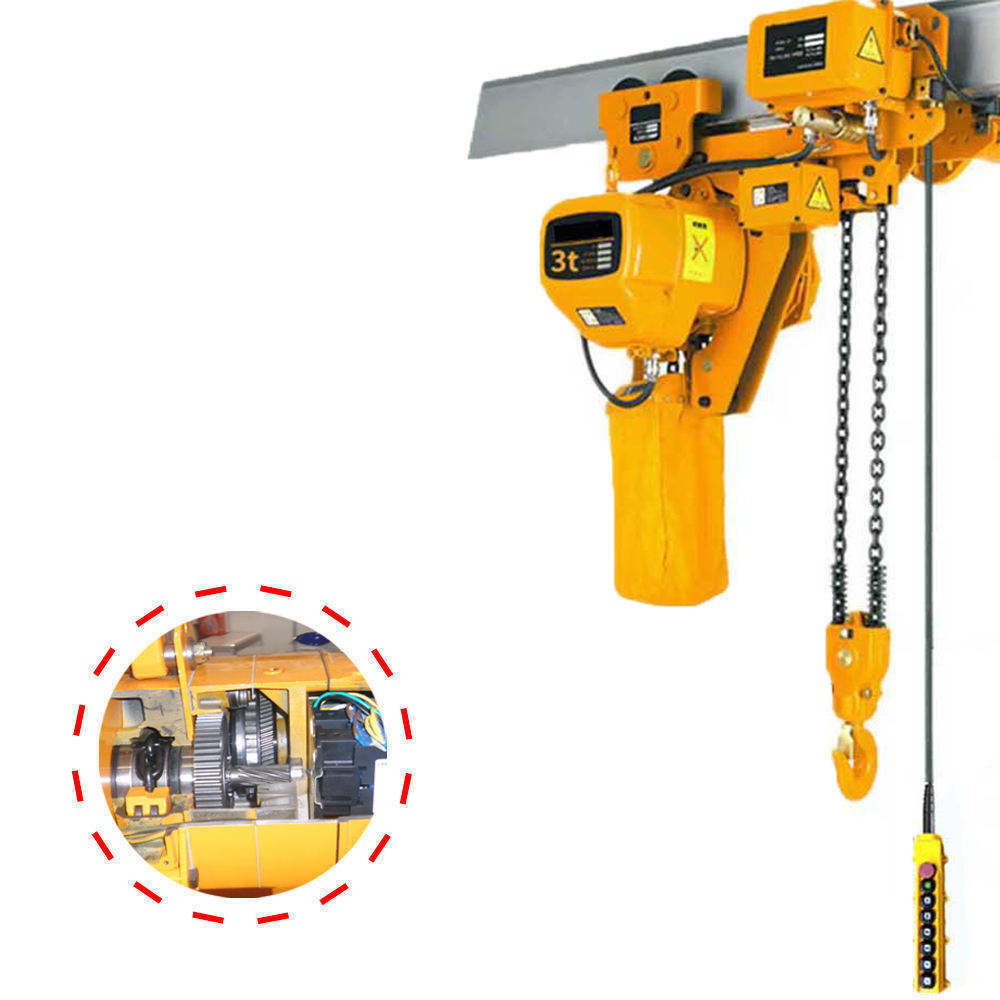

Dual Brake Low Headroom Electric Hoist IP54 Motor 3 Ton Electric Chain Hoists KOEO HHBB-03
Dual Brake Low Headroom Electric Hoist IP54 Motor 3 Ton Electric Chain Hoists KOEO HHBB-03
Specifications
Model Number :
HHBB-03
Lifting Speed :
4.4 m/min
Finish :
Electrostatic Powder Coating
Price :
USD 850-1,350 / Set
Motor Voltage :
380V / 400V 3-Phase 50Hz / 60Hz
Load Chain Type :
G80 Grade Alloy Steel
Noise Level :
≤ 76 dB
Brand Name :
KOEO
Insulation Class :
Class F (155°C)
Headroom Dimension :
Ultra-Compact Low Headroom Design
Net Weight :
68 kg
Protection Class :
IP54
Control Voltage :
Pendant control 36V or others
Payment Terms :
T/T,L/C
Duty Rating :
A4 / M3 (FEM/ISO)
Place of Origin :
Hebei, China
Brake Type :
Dual Electromagnetic DC Brake
Chain Falls :
2
Certification :
CE, ISO 9001:2015
Lifting Height :
4 m (standard, customizable )
Chain Diameter :
11.2 mm
Delivery Time :
7-10 working days for stock, 15-25 days for production
Load Capacity :
3000 kg (3 Ton)
MOQ :
1 Set
Packaging Details :
KOEO branded heavy-duty plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Motor Power :
3.0 kW
Supply Ability :
300 Sets per Month
Description
KOEO HHBB-03 3 Ton Low Headroom Electric Chain Hoist Ultra Compact IP54 Motor G80 Alloy Chain Dual Brake 380V

The KOEO HHBB-03 is the heavy-lifting champion of low headroom hoists, delivering 3-ton capacity in an ultra-compact body that maximizes hook height in restricted spaces. With twin 3.0 kW IP54 motors, dual electromagnetic DC brakes, and G80 alloy steel chain in 2-fall configuration, the HHBB-03 brings serious lifting power to low-ceiling factories, steel workshops, and industrial facilities where conventional hoists simply cannot fit.
