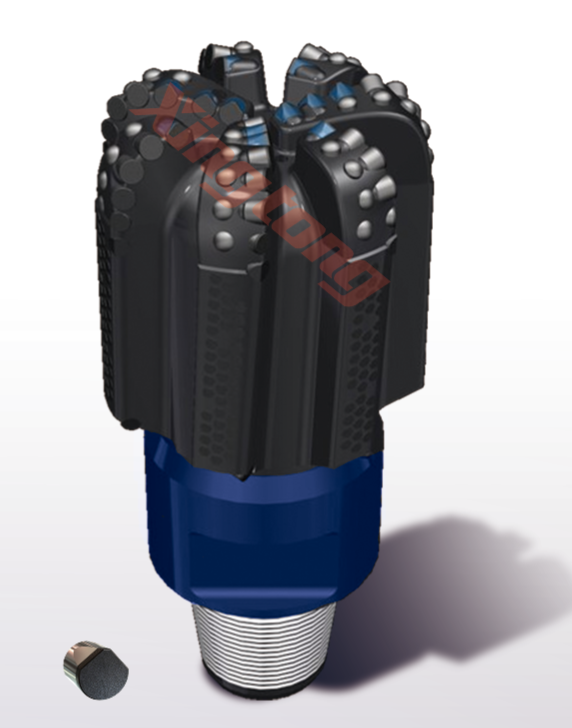

Steel Body PDC Drill Bit with GI Cutter for Super Hard Formations in Oil Drilling
Steel Body PDC Drill Bit with GI Cutter for Super Hard Formations in Oil Drilling
Steel Body PDC Drill Bit with GI Cutter for Super Hard Formations in Oil Drilling
Steel Body PDC Drill Bit with GI Cutter for Super Hard Formations in Oil Drilling
Specifications
IADC code :
S323
Face :
34
Junk slot area (sq mm) :
9412
Gauge :
14
Gauge Length :
152mm
Make-Up Length :
534mm
Normalized Face Volume :
51.69%
Updrill :
7
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
97kg
MOQ :
1 Piece（MOQ）
Supply Ability :
Stable supply and support for bulk customization.
Nozzle type & count :
L*2
API Connection :
4-1/2 REG.pin
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XH 7164LAK
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Price :
Negotiable
Body type :
STEEL
Total Cutter Count :
55
Cutter Type :
GI
Description
Steel GI Rock Cutting Drill Bits Cutter Drill Bits For Oil Drilling In Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC placed on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
  • Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer
  • Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
