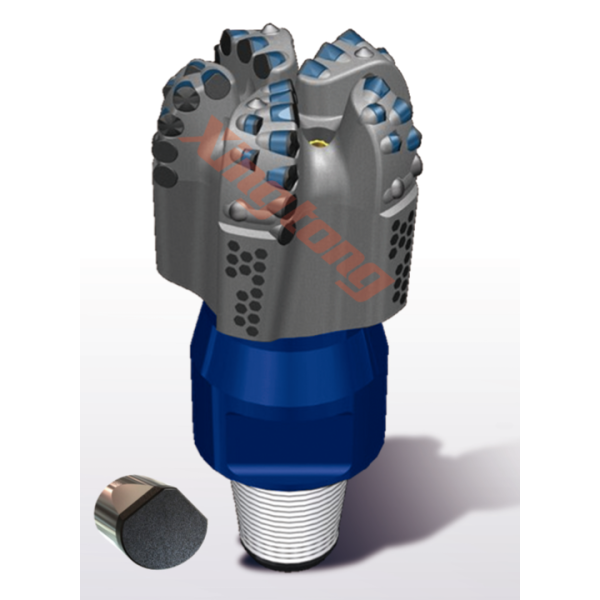

6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
Specifications
Brand Name :
XINGTONG
Model Number :
6.5″ 165.1mm XH 5164
Supply Ability :
Stable supply and support for bulk customization.
Nozzle type & count :
M*5
Gauge Length :
76mm
Junk slot area (sq mm) :
5677
Make-Up TQ :
7-10KN.m
IADC code :
S324
Certification :
API 、ISO 9001
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Place of Origin :
CHINA
Face :
20+10
Normalized Face Volume :
46.78%
Gauge :
8
Make-Up Length :
407mm
Approximate Shipping Weight :
50kg
Price :
Negotiable
Body type :
STEEL
Total Cutter Count :
38
MOQ :
1 Piece（MOQ）
Cutter Type :
GI
API Connection :
3-1/2 REG.pin
Description
6.5in PDC Drill Bit 165.1mm Diamond Drill Bit Oil And Gas
PDC Drill Bits 6.5″ 165.1mm XH 5164 (Rigid Body) for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve bit durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • Drop In Cutters on Gauge Pads
  • Radius Hex TSP on Gauge Pads
  • 4D shaped cutter
Important Notes:
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
