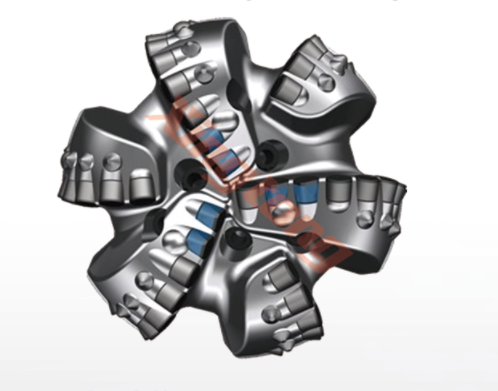

16-24KNm Make-Up TQ PDC Drill Bit with 53 Cutter Count and Dual Row Cutting Structure for Oil Drilling
16-24KNm Make-Up TQ PDC Drill Bit with 53 Cutter Count and Dual Row Cutting Structure for Oil Drilling
16-24KNm Make-Up TQ PDC Drill Bit with 53 Cutter Count and Dual Row Cutting Structure for Oil Drilling
16-24KNm Make-Up TQ PDC Drill Bit with 53 Cutter Count and Dual Row Cutting Structure for Oil Drilling
Specifications
Updrill :
6
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
79kg
Nozzle type & count :
L*6
API Connection :
4-1/2 REG.pin
Price :
Negotiable
MOQ :
1 Piece（MOQ）
IADC code :
S324
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XH 6164KA
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Gauge :
14
Gauge Length :
76mm
Make-Up Length :
439mm
Face :
33
Junk slot area (sq mm) :
6748
Cutter Type :
GI
Body type :
STEEL
Supply Ability :
Stable supply and support for bulk customization.
Total Cutter Count :
53
Normalized Face Volume :
49.52%
Description
16-24KNm Polycrystalline Diamond Compact PDC Bits for Oil Drilling
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile ensures even load distribution to reduce ring out risk
  • High quality PDC placement on shoulder improves wear and impact resistance
  • Special backup cutter layout enhances bit durability while maintaining aggression
Product Features
  • Dual row cutting structure
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • 4D shaped cutter
  • Radius Hex TSP on Gauge Pads
Important Notes

Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G.

Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customers.

Images are for reference only. Please contact Skycom engineers for detailed technical parameters.
