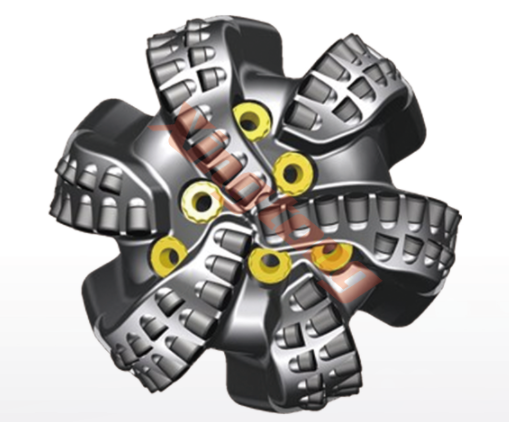

Rigid Body PDC Drill Bit 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling
Rigid Body PDC Drill Bit 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling
Rigid Body PDC Drill Bit 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling
Rigid Body PDC Drill Bit 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling
Specifications
IADC code :
S434
Gauge :
14
Make-Up Length :
516mm
Supply Ability :
Stable supply and support for bulk customization.
Approximate Shipping Weight :
96kg
API Connection :
4-1/2 REG.pin
Face :
62
Normalized Face Volume :
Normalized Face Volume
Nozzle type & count :
L*6
Gauge Length :
102mm
Junk slot area (sq mm) :
10548
Make-Up TQ :
16-24KN.m
Price :
Negotiable
Brand Name :
XINGTONG
Model Number :
8 3/4″222mm XH 6164ML
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
MOQ :
1 Piece（MOQ）
Cutter Type :
GI
Body type :
STEEL
Total Cutter Count :
76
Description
Rigid Body PDC Drill Bits – 8 3/4″ (222mm) XH 6164ML Model for Super Hard Formation Oil Drilling
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining aggression
Product Features
  • 1.6mm Stepped Gauge
  • Dual row cutting structure
  • Drop In Cutters on Gauge Pads
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
  • Technical performance fully implemented according to terms agreed between Xingtong and customer
  • Pictures are for reference only - contact Skycom engineers for detailed technical parameters
