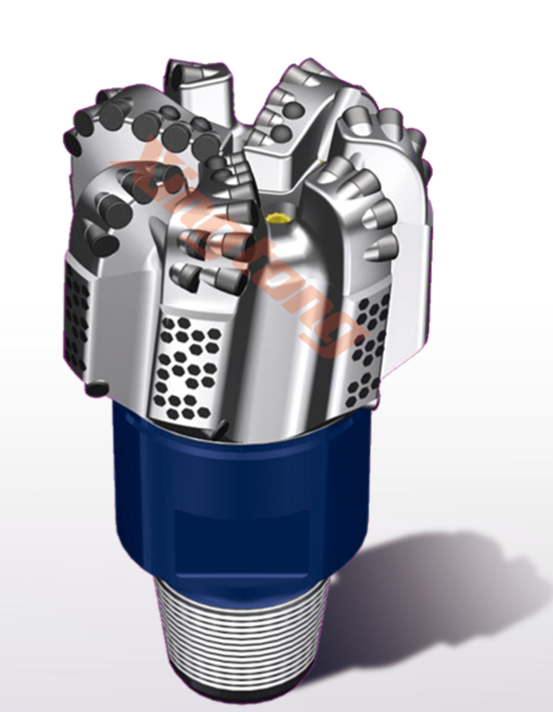

8.5inch 216mm PDC Drill Bit for Hard Formations in Oil Field Applications
8.5inch 216mm PDC Drill Bit for Hard Formations in Oil Field Applications
8.5inch 216mm PDC Drill Bit for Hard Formations in Oil Field Applications
8.5inch 216mm PDC Drill Bit for Hard Formations in Oil Field Applications
Specifications
Updrill :
7
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
82kg
Nozzle type & count :
L*7
API Connection :
4-1/2 REG.pin
Price :
Negotiable
IADC code :
S324
Face :
34
Junk slot area (sq mm) :
9168
Gauge :
8
Gauge Length :
76mm
Make-Up Length :
451mm
Supply Ability :
Stable supply and support for bulk customization.
Normalized Face Volume :
49.41%
Cutter Type :
GI
Payment Terms :
L/C,D/P,T/T,
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XH 5164
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
MOQ :
1 Piece（MOQ）
Body type :
STEEL
Total Cutter Count :
49
Description
8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining aggression
Product Features
  • Drop In Cutters on Gauge Pads
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
Important Note

The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.

The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.

The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
