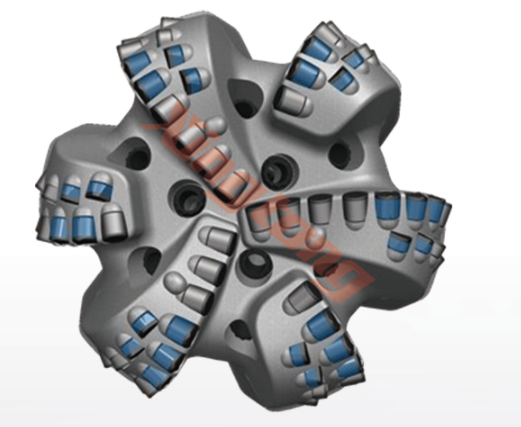

8 3/4″ 222mm PDC Drill Bit for Super Hard Formations with 24KNm Make-Up TQ Oil Drilling Bit
8 3/4″ 222mm PDC Drill Bit for Super Hard Formations with 24KNm Make-Up TQ Oil Drilling Bit
8 3/4″ 222mm PDC Drill Bit for Super Hard Formations with 24KNm Make-Up TQ Oil Drilling Bit
8 3/4″ 222mm PDC Drill Bit for Super Hard Formations with 24KNm Make-Up TQ Oil Drilling Bit
Specifications
MOQ :
1 Piece（MOQ）
Updrill :
6
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
81kg
Nozzle type & count :
L*6
API Connection :
4-1/2 REG.pin
Price :
Negotiable
IADC code :
S424
Face :
55
Junk slot area (sq mm) :
10845
Gauge :
7
Gauge Length :
76mm
Make-Up Length :
444mm
Brand Name :
XINGTONG
Model Number :
8 3/4″ 222mm XH 5164BA
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Normalized Face Volume :
45.81%
Cutter Type :
GI
Supply Ability :
Stable supply and support for bulk customization.
Body type :
STEEL
Total Cutter Count :
68
Description
8 3/4″ PDC Drill Bit - 222mm Oil Super Hard Formations PDC Core Bit 24KNm
Product Overview

PDC Drill Bits 8 3/4″ 222mm XH 5164BA designed for oil drilling in super hard formations, delivering exceptional performance and durability in challenging drilling conditions.

XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile for even load distribution to reduce ring out risk
  • High quality PDC cutters on shoulder for improved wear and impact resistance
  • Special backup cutter layout enhances bit durability while maintaining aggression
Technical Specifications
  • 1.6mm Stepped Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter design
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G
  • Technical performance fully implemented according to terms agreed between Xingtong and customer
  • Images are for reference only - contact Skycom engineers for detailed technical parameters
