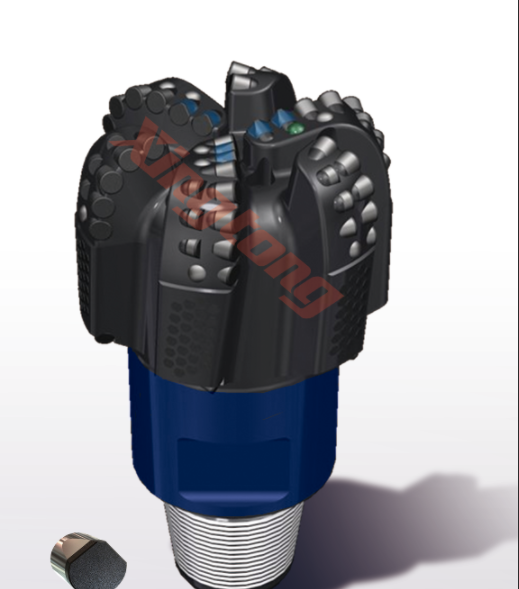

64 Cutter PDC Drill Bit 8 1/2inch 216mm with Updrill 6 for Oil Drilling in Super Hard Formations
64 Cutter PDC Drill Bit 8 1/2inch 216mm with Updrill 6 for Oil Drilling in Super Hard Formations
64 Cutter PDC Drill Bit 8 1/2inch 216mm with Updrill 6 for Oil Drilling in Super Hard Formations
64 Cutter PDC Drill Bit 8 1/2inch 216mm with Updrill 6 for Oil Drilling in Super Hard Formations
Specifications
Updrill :
6
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
78kg
Nozzle type & count :
L*5
API Connection :
4-1/2 REG.pin
Price :
Negotiable
IADC code :
S324
Face :
46
Junk slot area (sq mm) :
8606
Gauge :
12
Gauge Length :
76mm
Make-Up Length :
461mm
Normalized Face Volume :
51.53%
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XH 6164BA
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutter Type :
GI
Body type :
STEEL
MOQ :
1 Piece（MOQ）
Supply Ability :
Stable supply and support for bulk customization.
Total Cutter Count :
64
Description
64 Cutter PDC Drill Bit 8 1/2inch 216mm 6 Updrill Oil Drill Bits Types
PDC Drill Bits 8 1/2″ 216mm XH 6164BA for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • The optimized profile makes the load distribution more even to reduce the risk of ring out
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
Important Notes
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
